The Paper Wasps and Hornets of Florida (Hymenoptera: Vespidae: Polistinae & Vespinae) By Hugo Kons Jr. & Rex Rowan



APPENDIX C: Male Genitalia and Terminal Metasomal Segments of Florida Polistes Species



Version 2018.1



Images of the voucher specimens for KOH treated dissections appear in Appendix D.



The dissection images include two non Florida species shown for comparative purposes: Polistes instabilis and Polistes aurifer.  Also there are some non Florida specimens of species that occur in Florida, as shown in Appendix D.



Click on the thumbnails to view individual figures, or scroll down for the full set of figures sequentially with captions.



FigureC1_resize FigureC2_resize FigureC3_resize FigureC4_resize FigureC5_resizeFigureC6_resize  FigureC7_resizeFigureC8_resizeFigureC9_resizeFigureC10_resize FigureC11_resizeFigureC12_resizeFigureC13_resizeFigureC14_resizeFigureC15_resizeFigureC16_resizeFigureC17_resizeFigureC18_resizeFigureC19_resizeFigureC20_resizeFigureC21_resizeFigureC22_resizeFigureC23_resizeFigureC24_resizeFigureC25_resizeFigureC26_resizeFigureC27_resizeFigureC28_resizeFigureC29_resizeFigureC30_resizeFigureC31_resizeFigureC32_resizeFigureC33_resizeFigureC34_resizeFigureC35_resizeFigureC36_resizeFigureC37_resizeFigureC38_resizeFigureC39_resizeFigureC40_resizeFigureC41_resizeFigureC42_resizeFigureC43_resizeFigureC44_resizeFigureC45_resizeFigureC46_resizeFigureC47_resizeFigureC48_resizeFigureC49_resizeFigureC50_resizeFigureC51_resizeFigureC52_resizeFigureC53_resizeFigureC54_resizeFigureC55_resizeFigureC56_resizeFigureC57_resizeFigureC58_resizeFigureC59_resizeFigureC60_resize





All Figures (C1-60) in order



FigureC1_resize

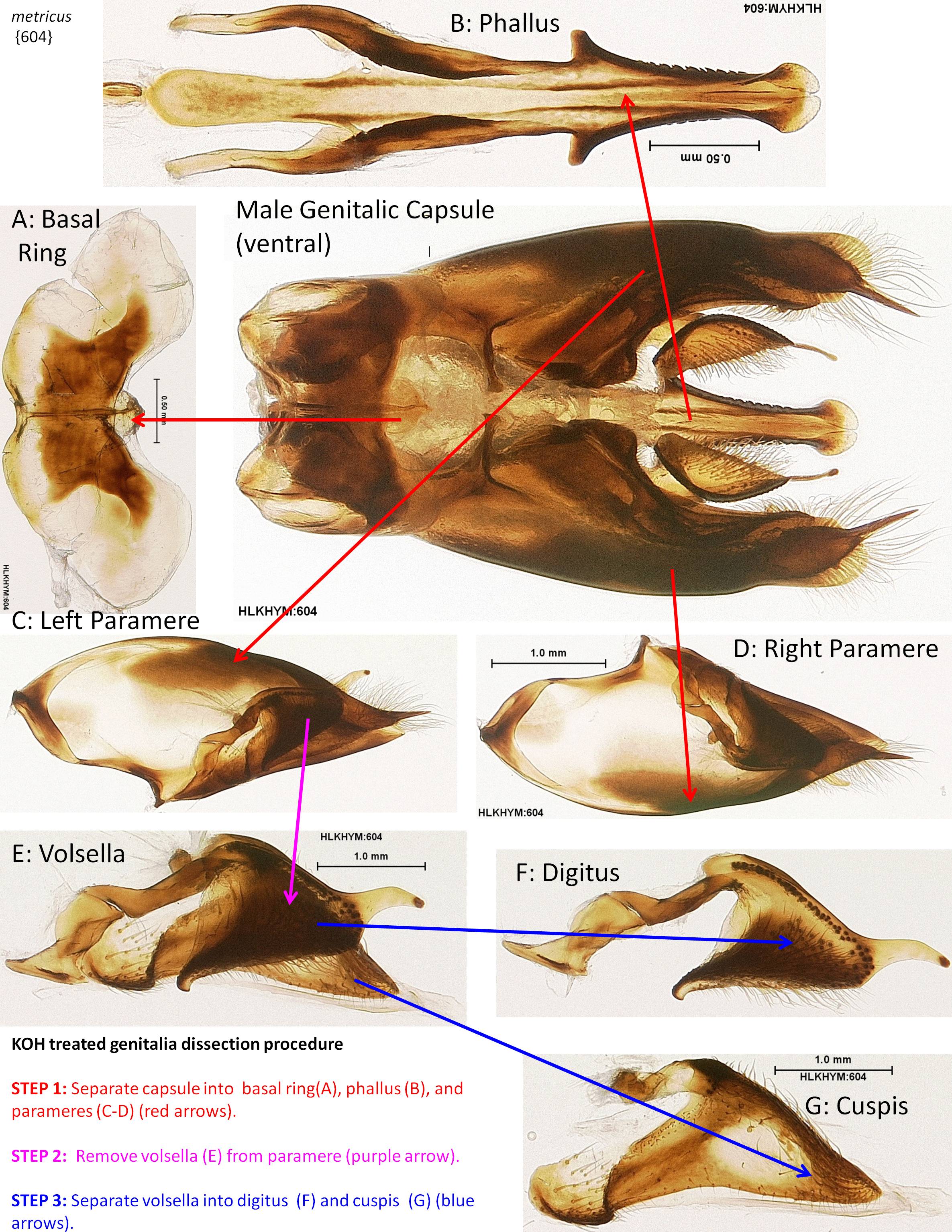

Figure C1:  Components from dissecting apart the male genitalia capsule of a Polistes specimen after treatment with KOH.





FigureC2_resize

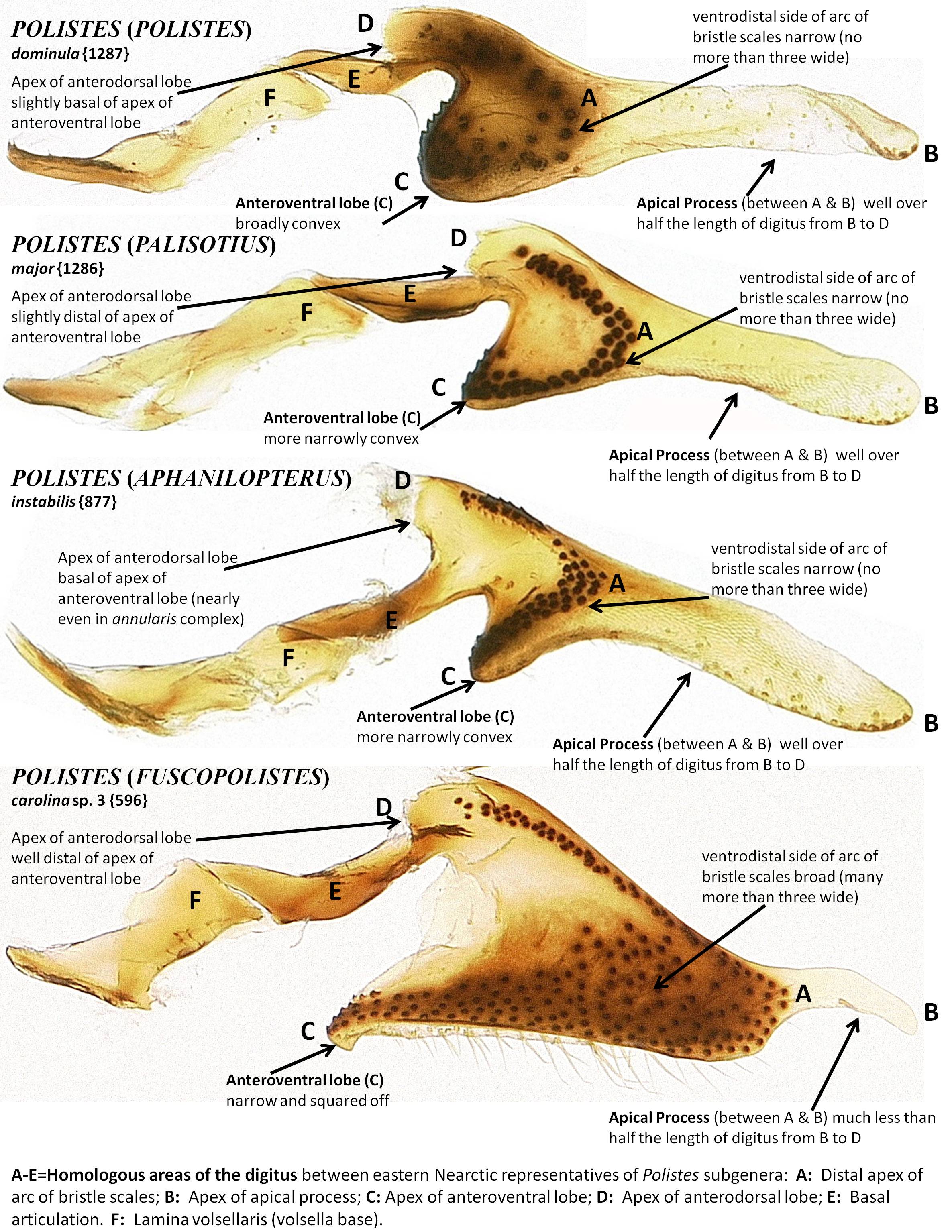

Figure C2:  Comparative morphology of the digitus between Polistes subgenera occurring in the eastern Nearctic.





FigureC3_resize

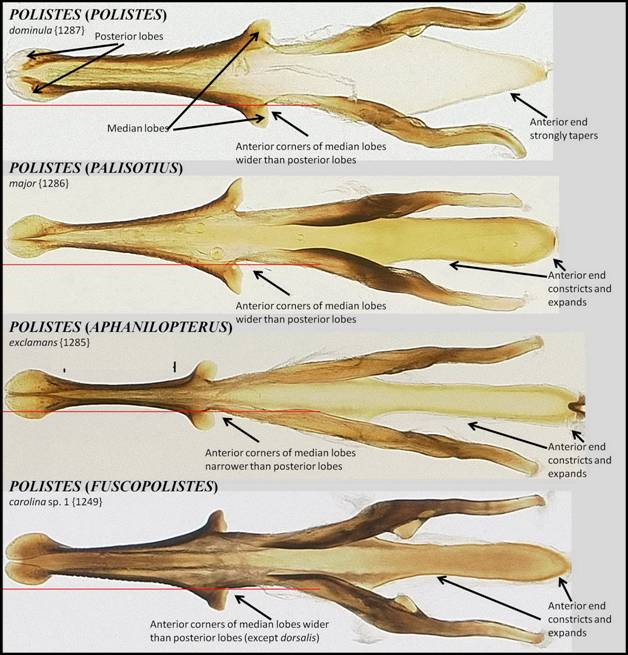

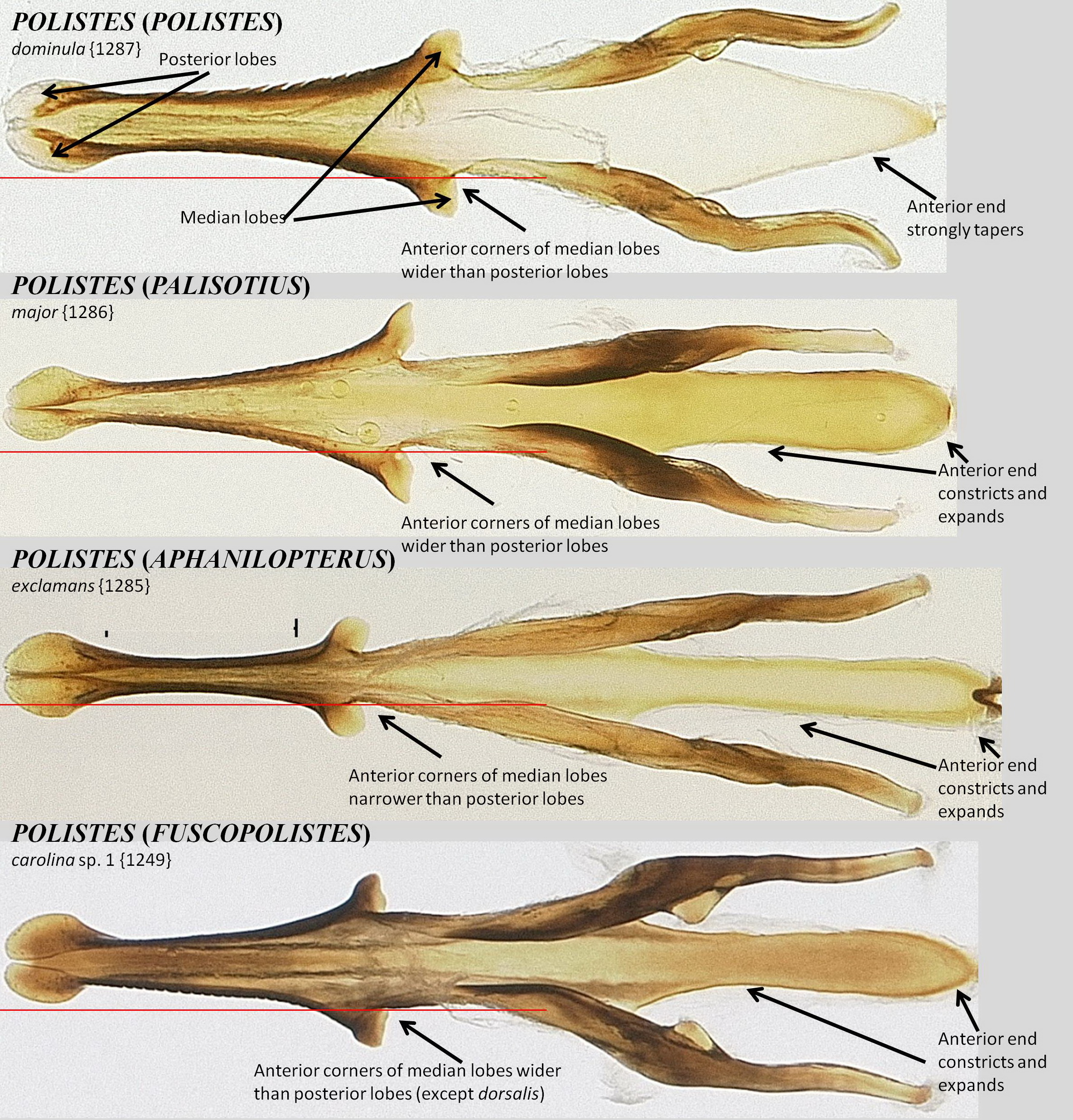

Figure C3:  Comparative morphology of the phallus between Polistes subgenera occurring in the eastern Nearctic.





FigureC4_resize

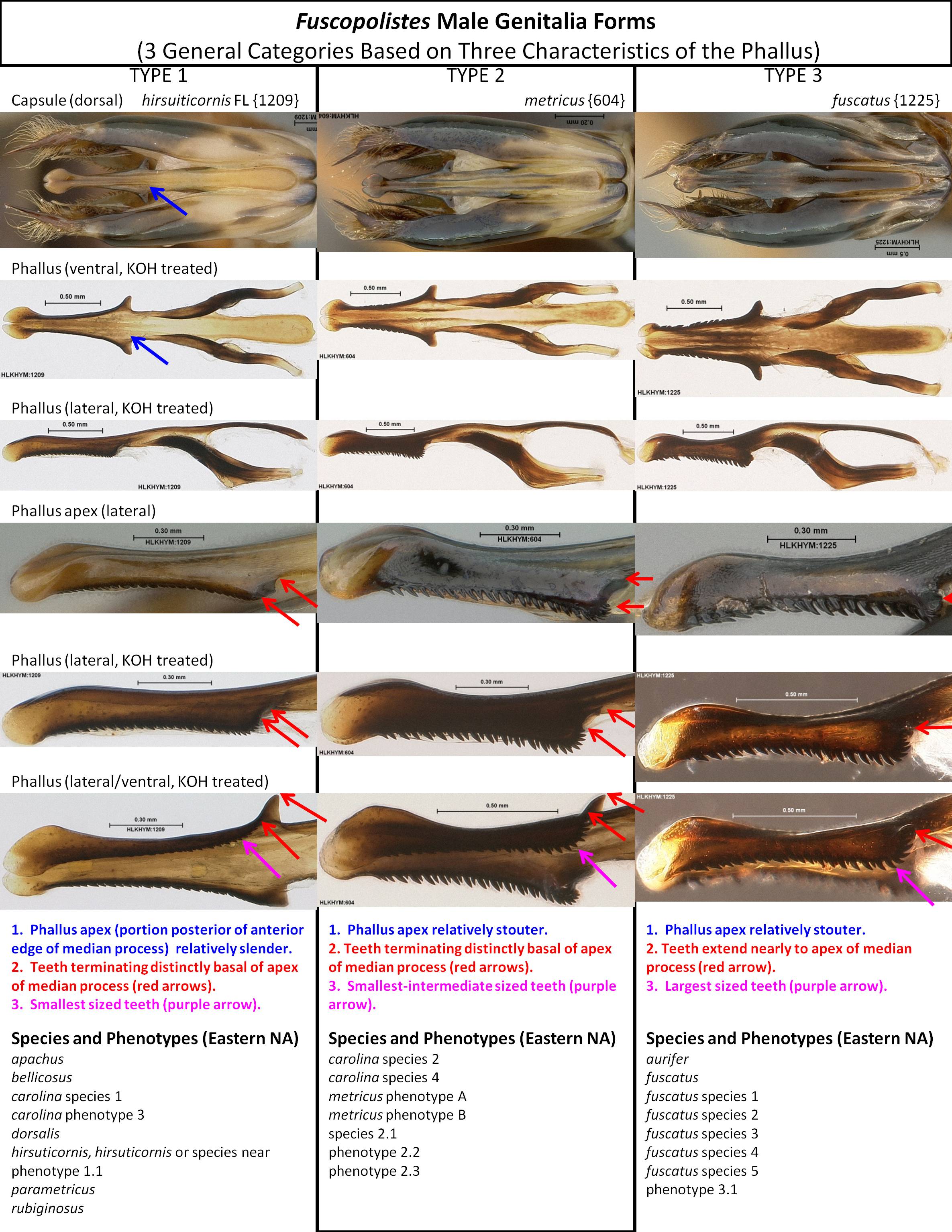

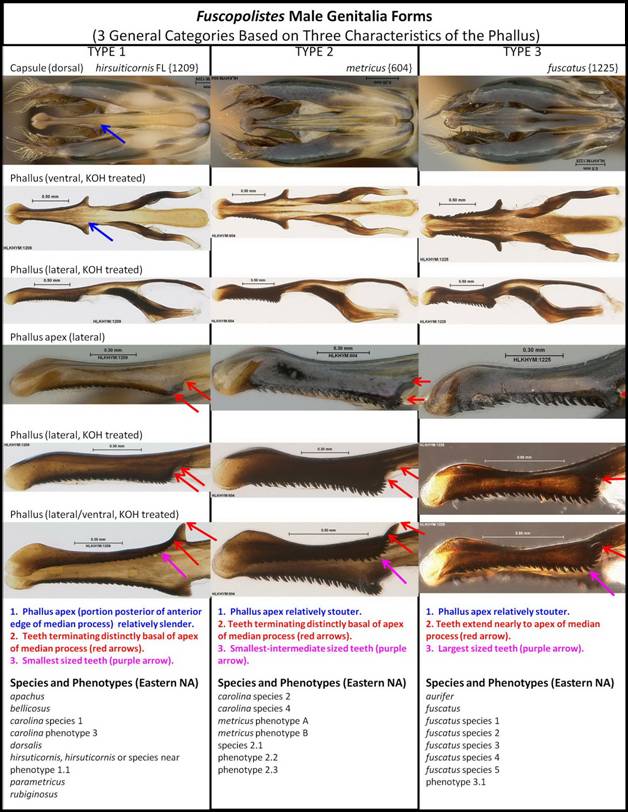

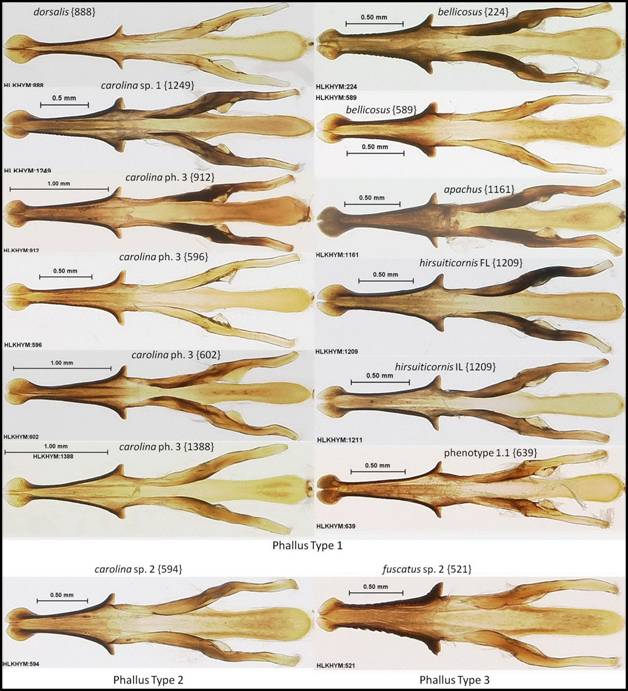

Figure C4:  Three types of male genitalia that occur in Fuscopolistes, based on three characters of the phallus.





FigureC5_resize

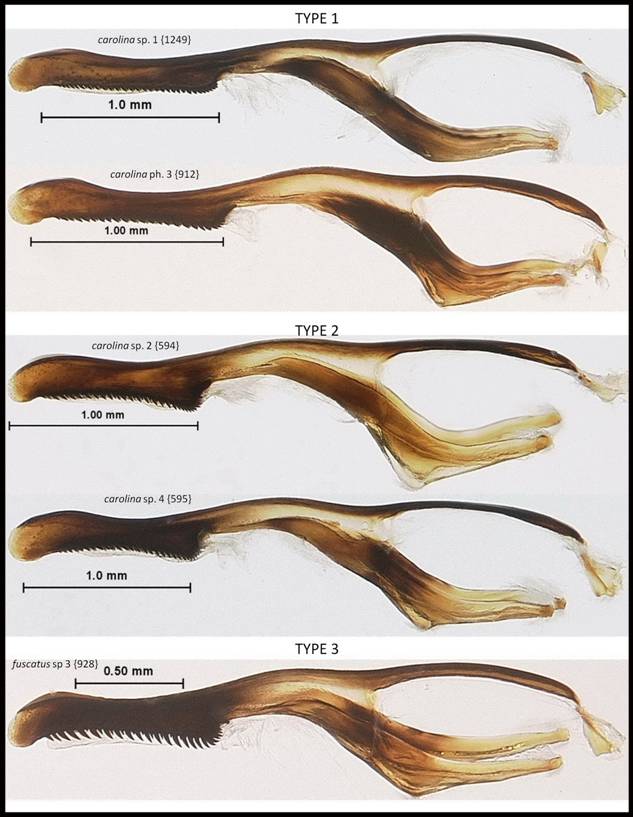

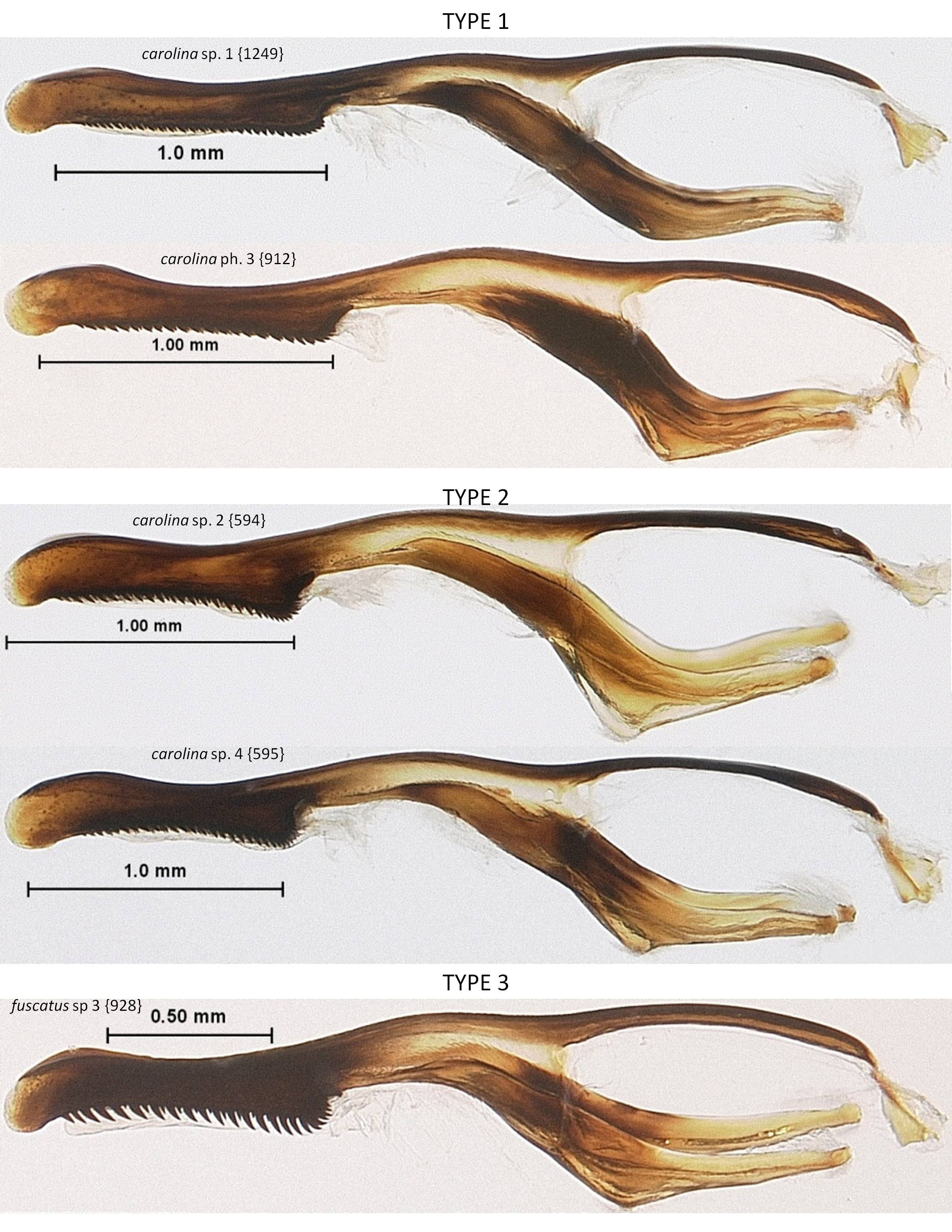

Figure C5:  Examples of each of the three Fuscopolistes phallus types in lateral aspect.





FigureC6_resize

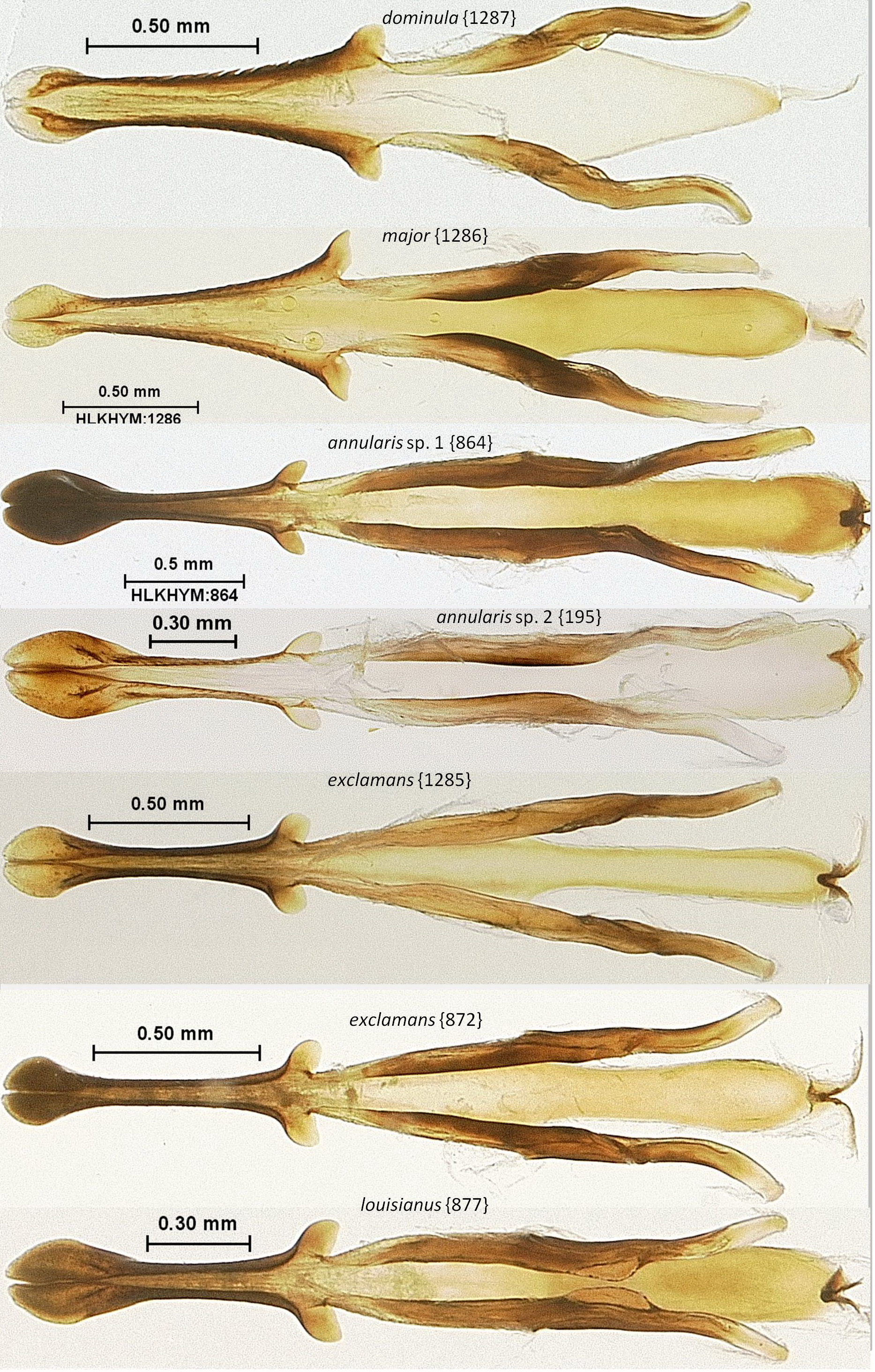

Figure C6:  Phallus (ventral aspect) of Florida Polistes species (part 1 of 4).





FigureC7_resize

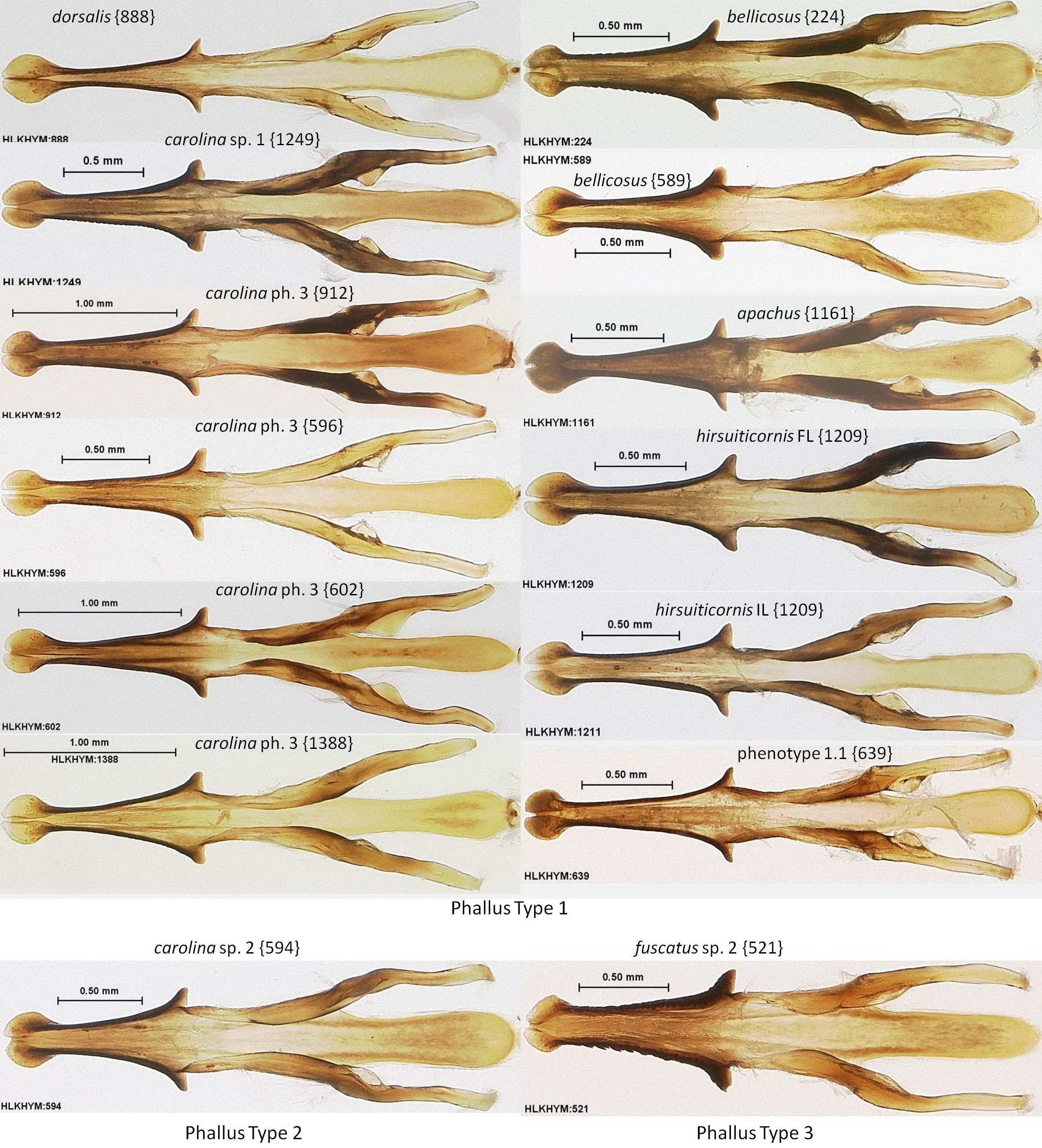

Figure C7:  Phallus (ventral aspect) of Florida Polistes species (part 2 of 4).





FigureC8_resize

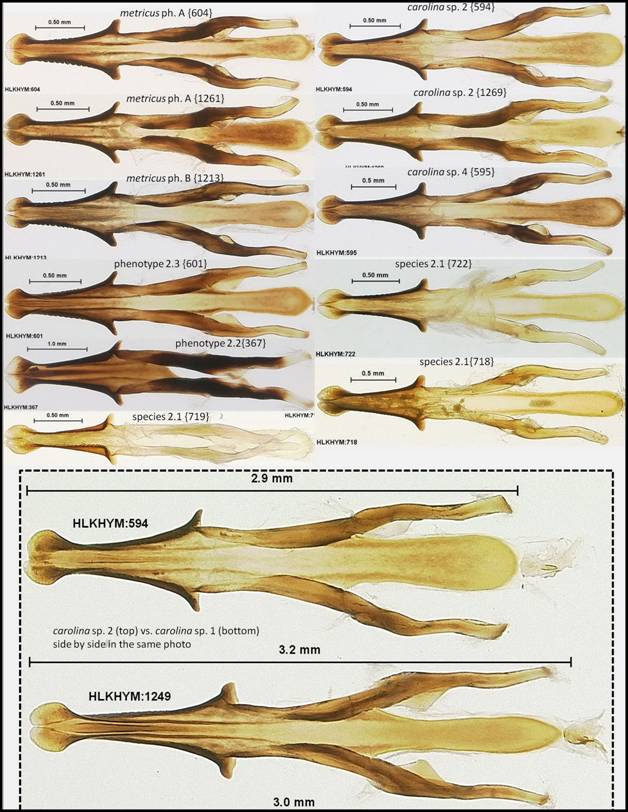

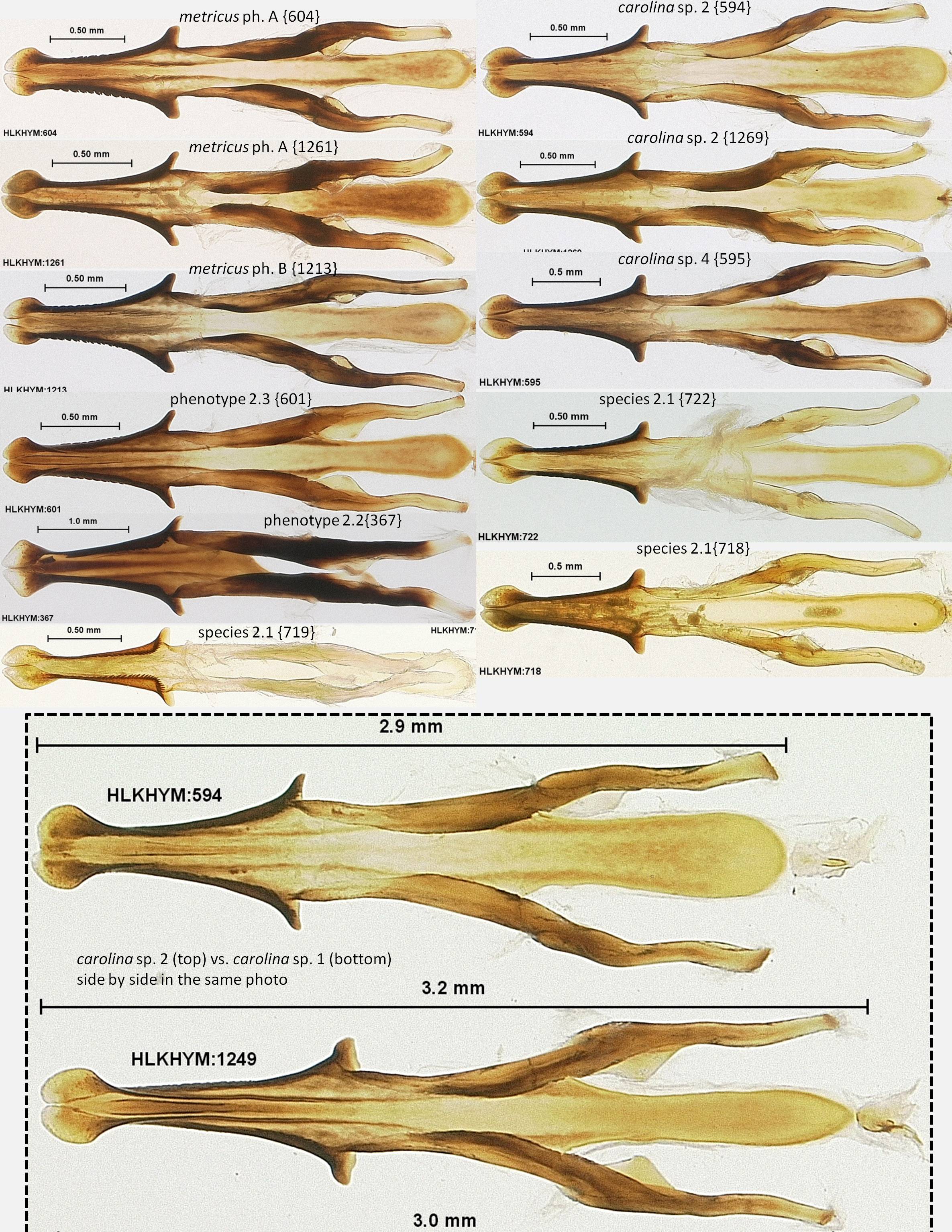

Figure C8:  Phallus (ventral aspect) of Florida Polistes species (part 3 of 4).





FigureC9_resize

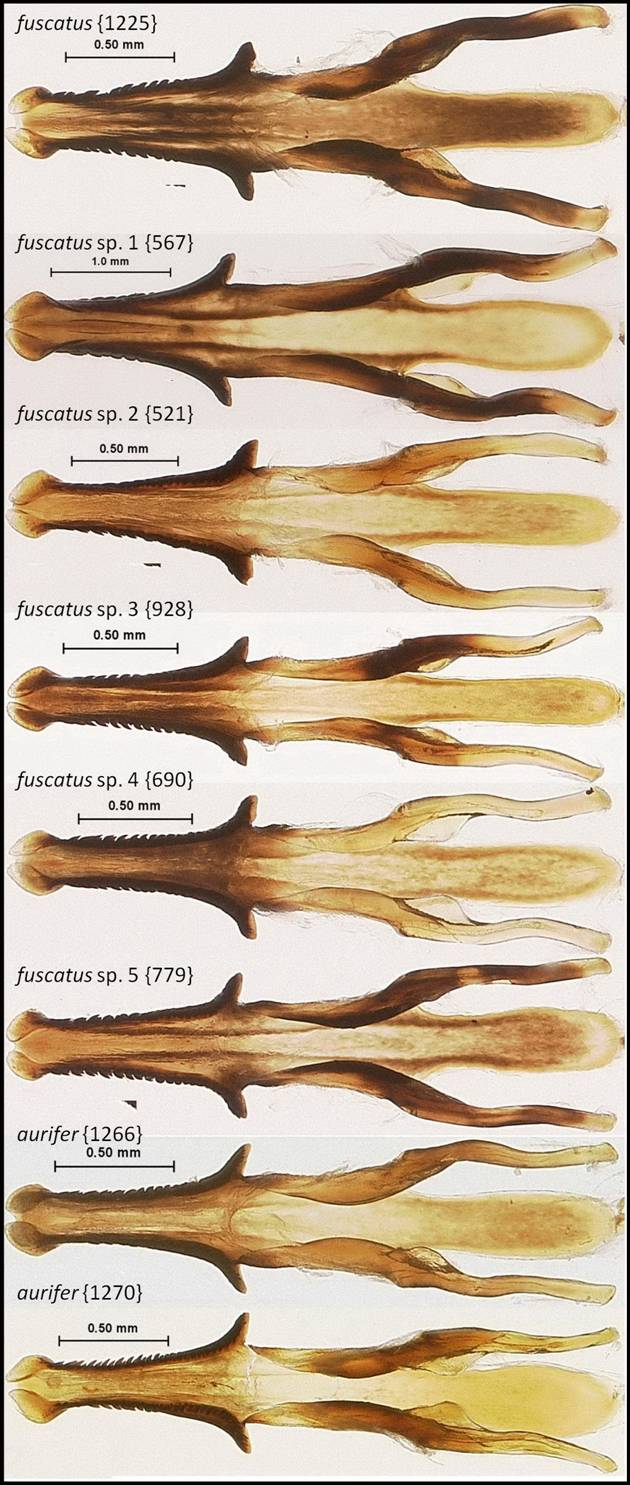

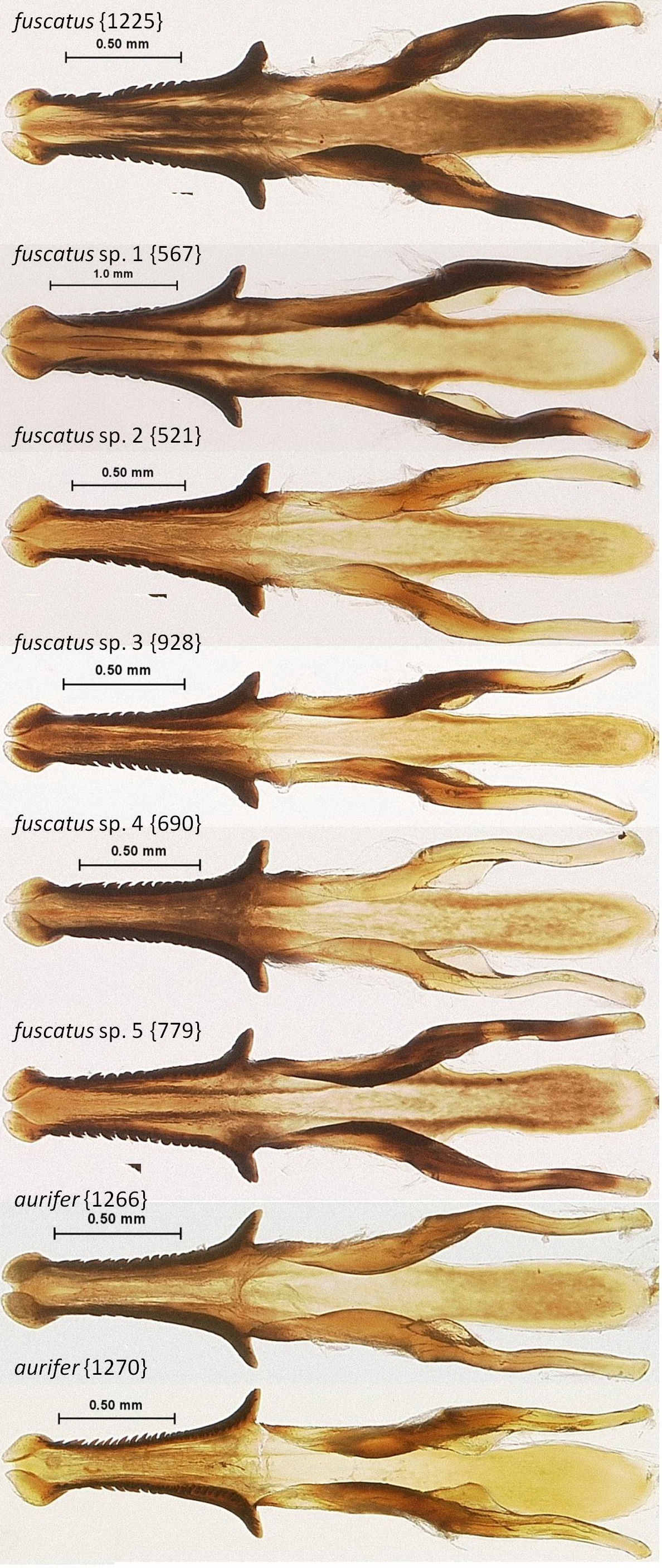

Figure C9:  Phallus (ventral aspect) of Florida Polistes species (part 4 of 4).





FigureC10_resize

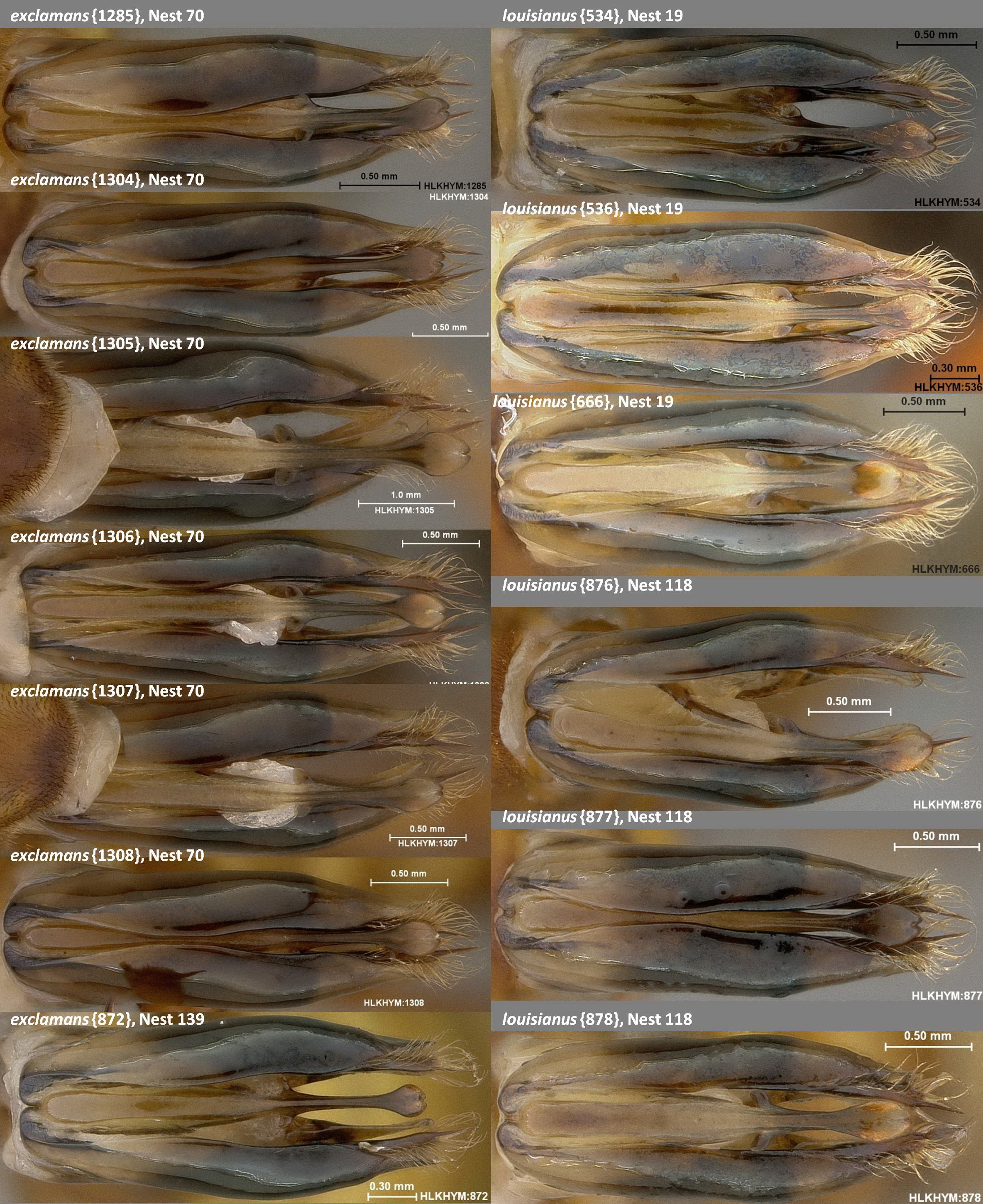

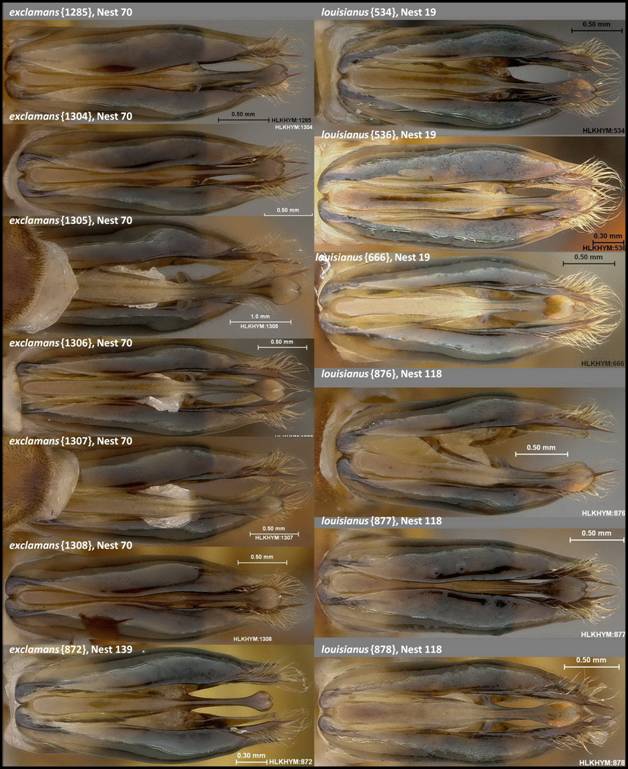

Figure C10: Comparison of genitalic capsule (dorsal aspect) between Polistes exclamans and Polistes louisianus, showing the posterior portion of the phallus.  Note the phallus is not perfectly flat in these photos so the length and shape do may appear somewhat distorted (versus Figure C6 where the phallus in ventral aspect is flat against the bottom of a petri dish and held in place by a convex piece of glass).





FigureC11_resize

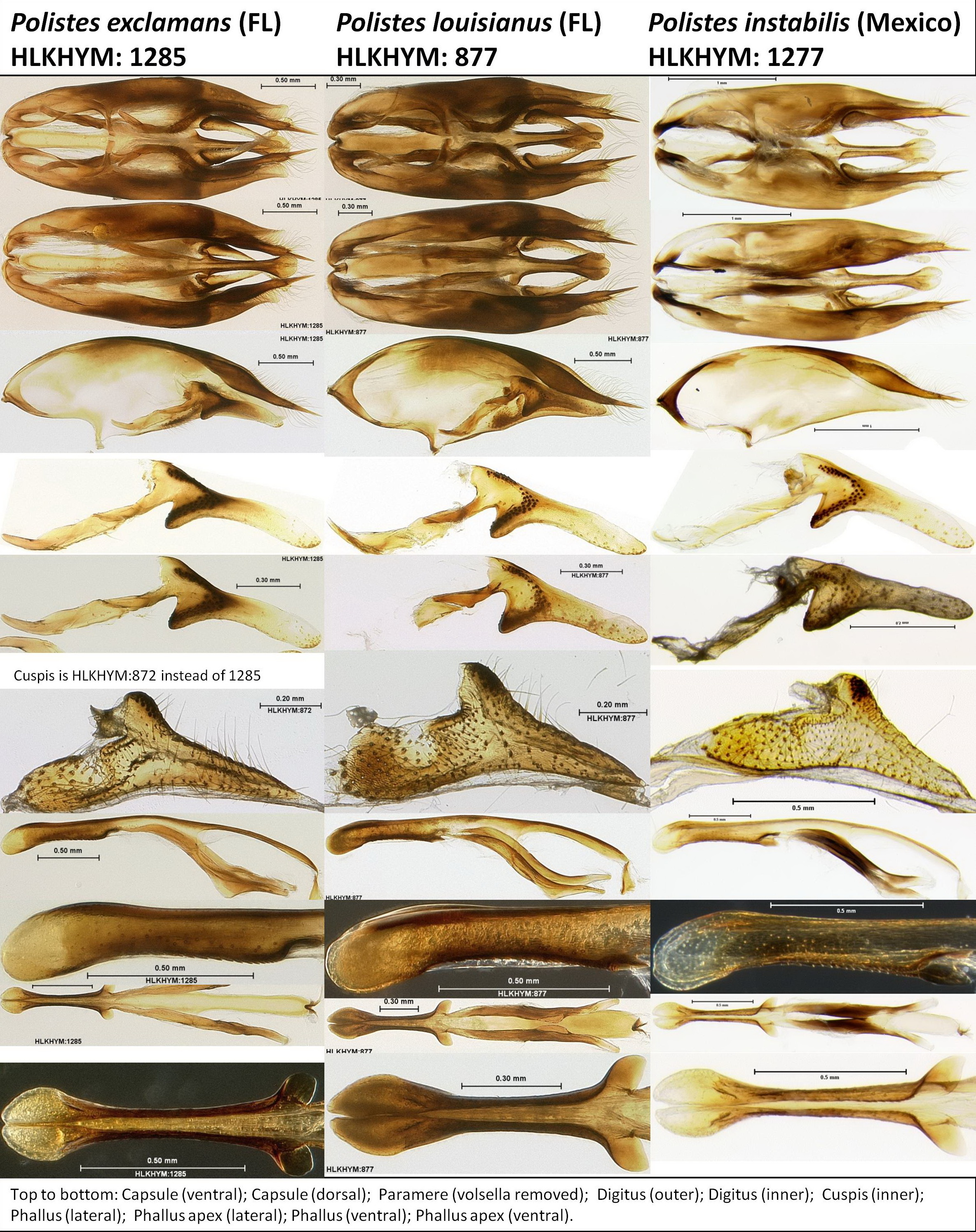

Figure C11: Comparison of male genitalic features between Polistes exclamans, P. louisianus, and P. instabilis (from Mexico).  Despite the similarity in pattern between allopatric P. louisianus and P. instabilis, the phallus of P. instabilis is most like P. exclamans.  Other features are similar (probably indistinguishable) between all three species.





FigureC12_resize

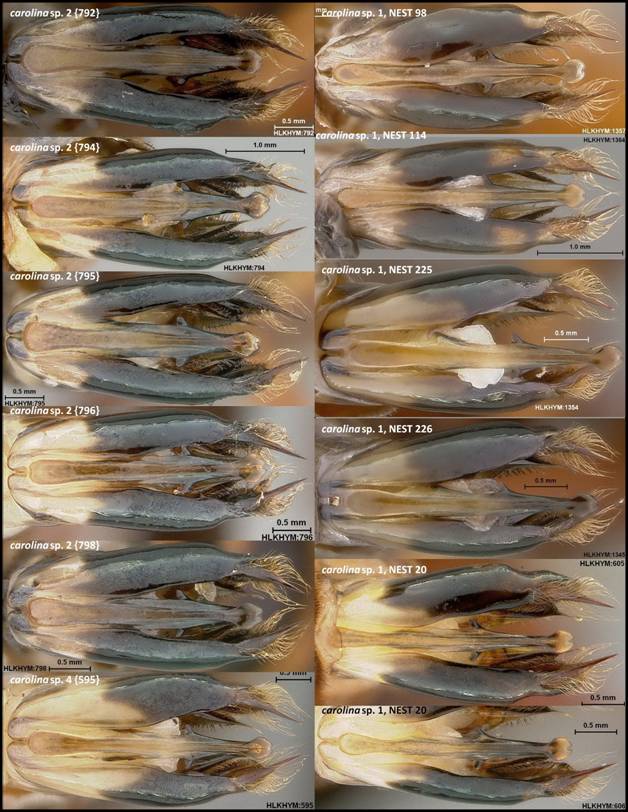

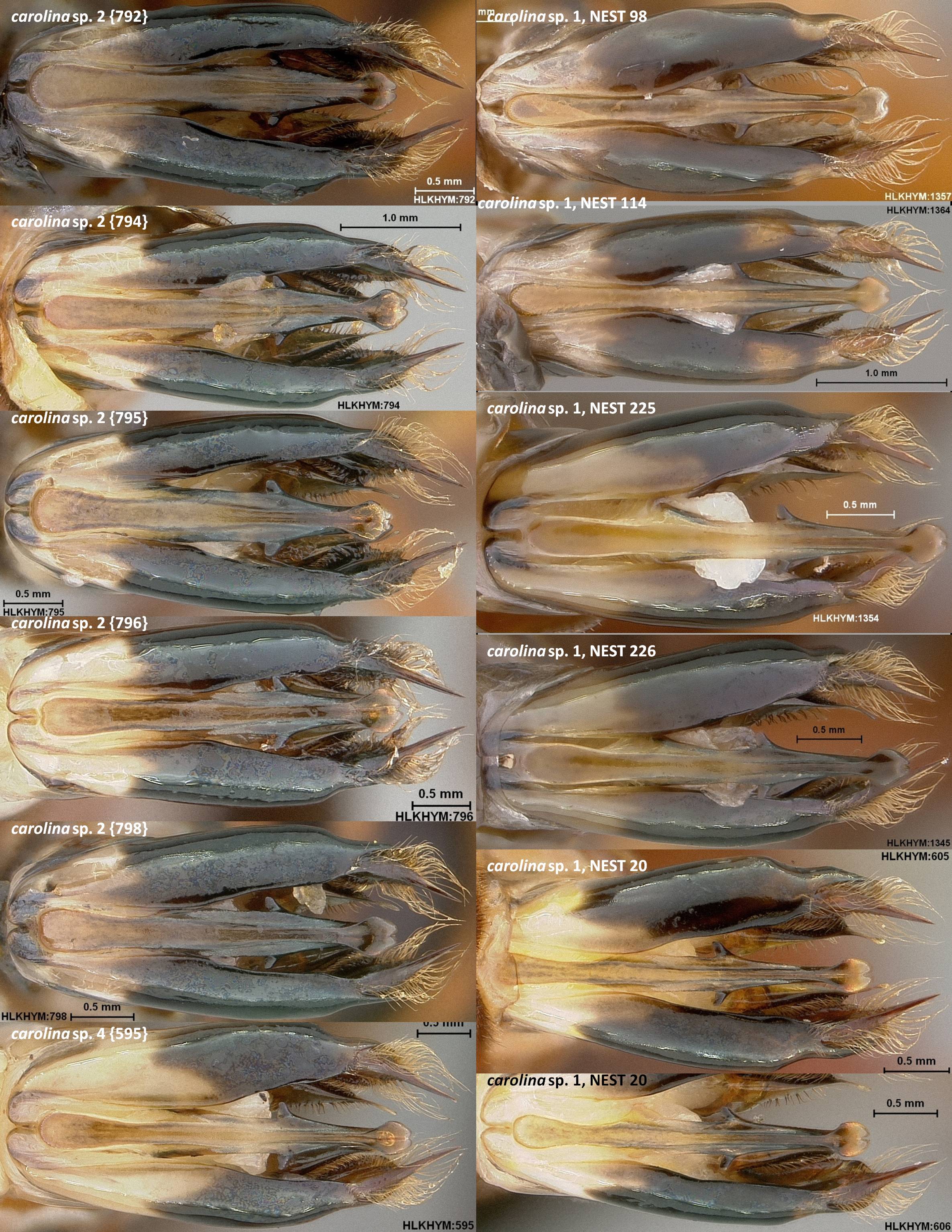

Figure C12: Comparison of genitalic capsule (dorsal aspect) between Polistes carolina sp. 1 and Polistes carolina sp. 2, showing the consistently stouter apical portion of the phallus in species 2.  One P. carolina sp. 4 is also shown for comparison (see Figure C8 for comparisons of the phallus between these three species from KOH treated and dissected specimens).





FigureC13_resize

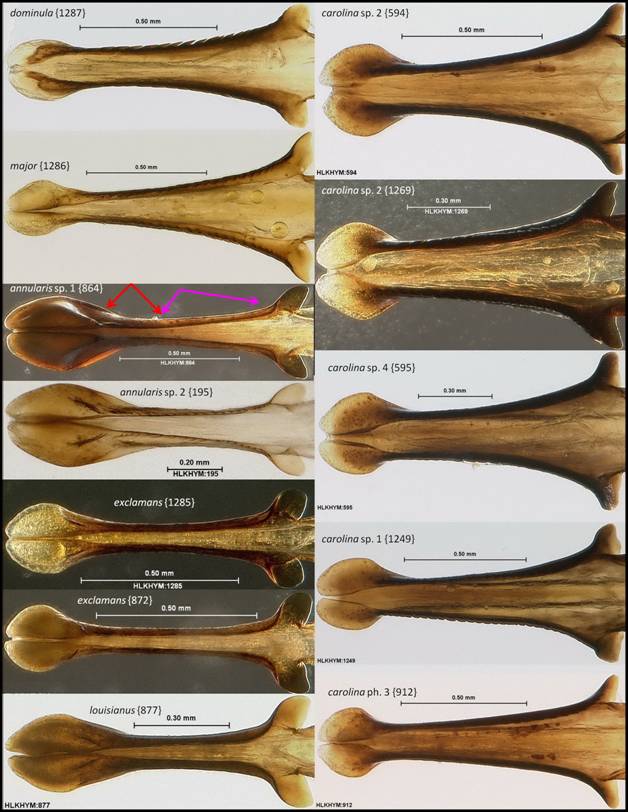

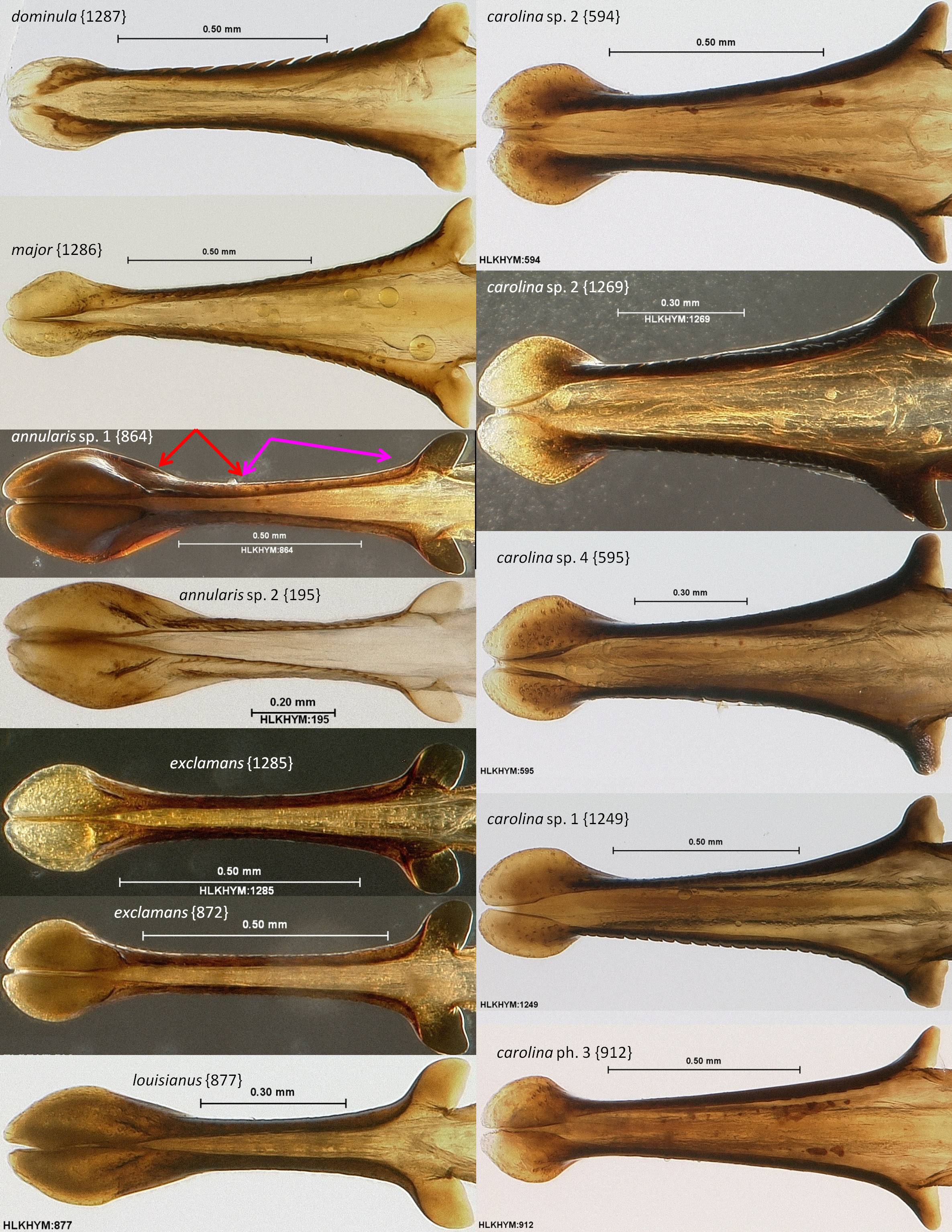

Figure C13:  Phallus apex (ventral aspect) of Florida Polistes species (part 1 of 4).





FigureC14_resize

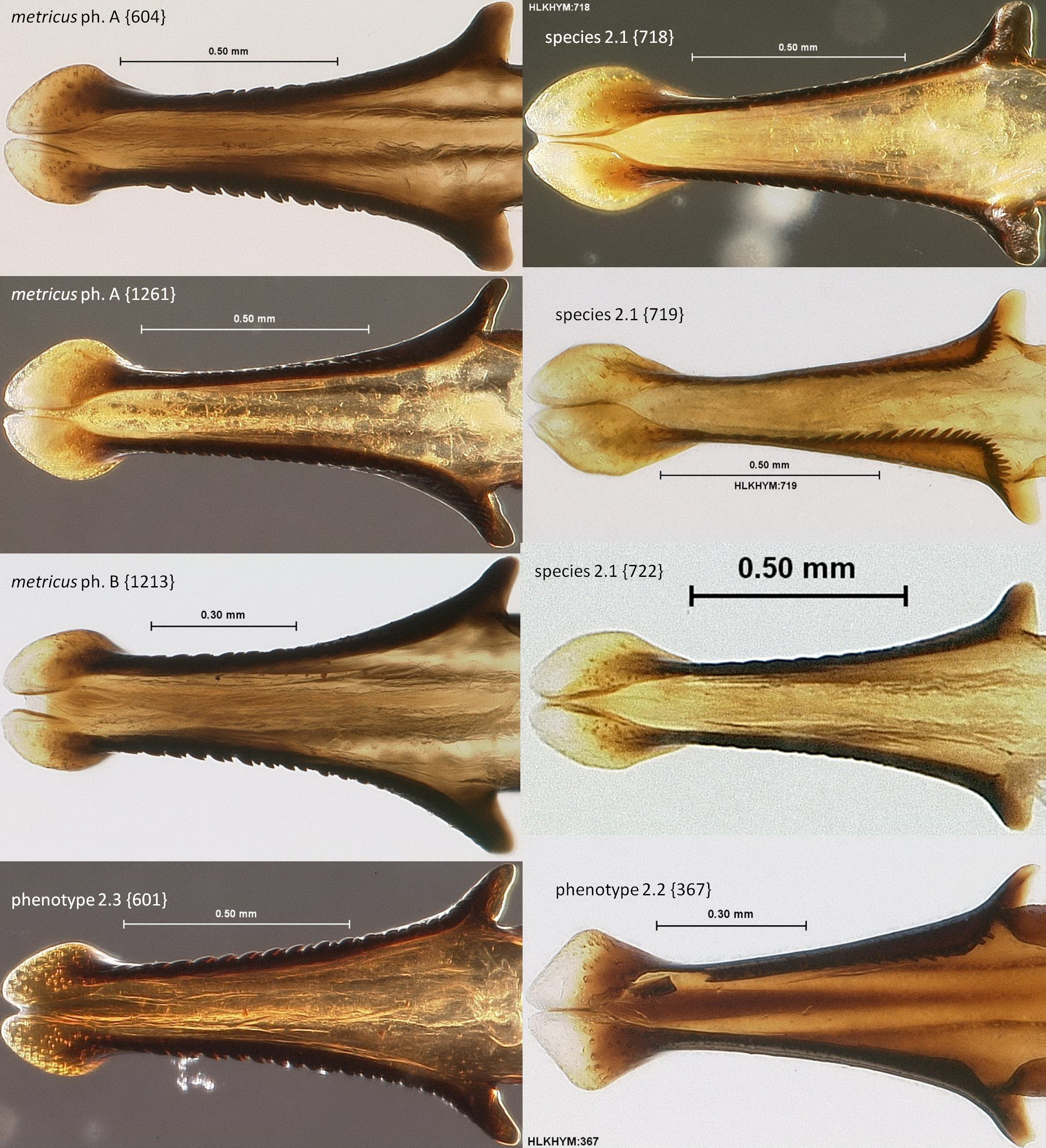

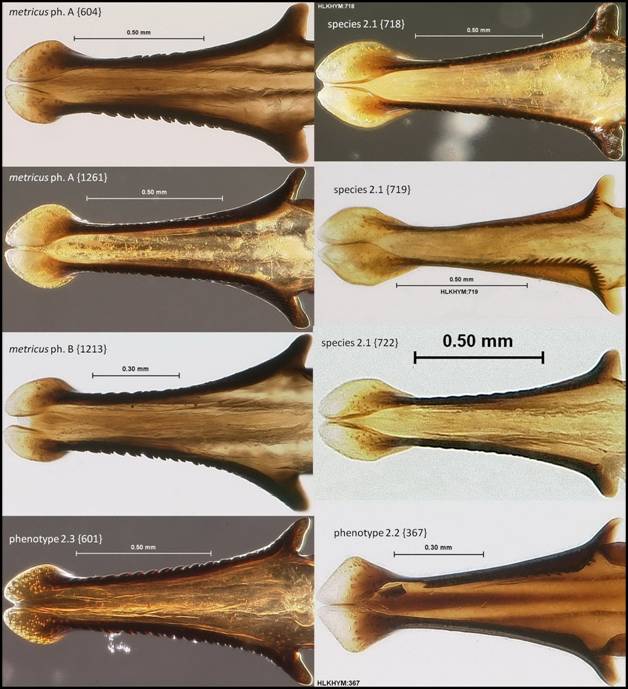

Figure C14:  Phallus apex (ventral aspect) of Florida Polistes species (part 2 of 4).





FigureC15_resize

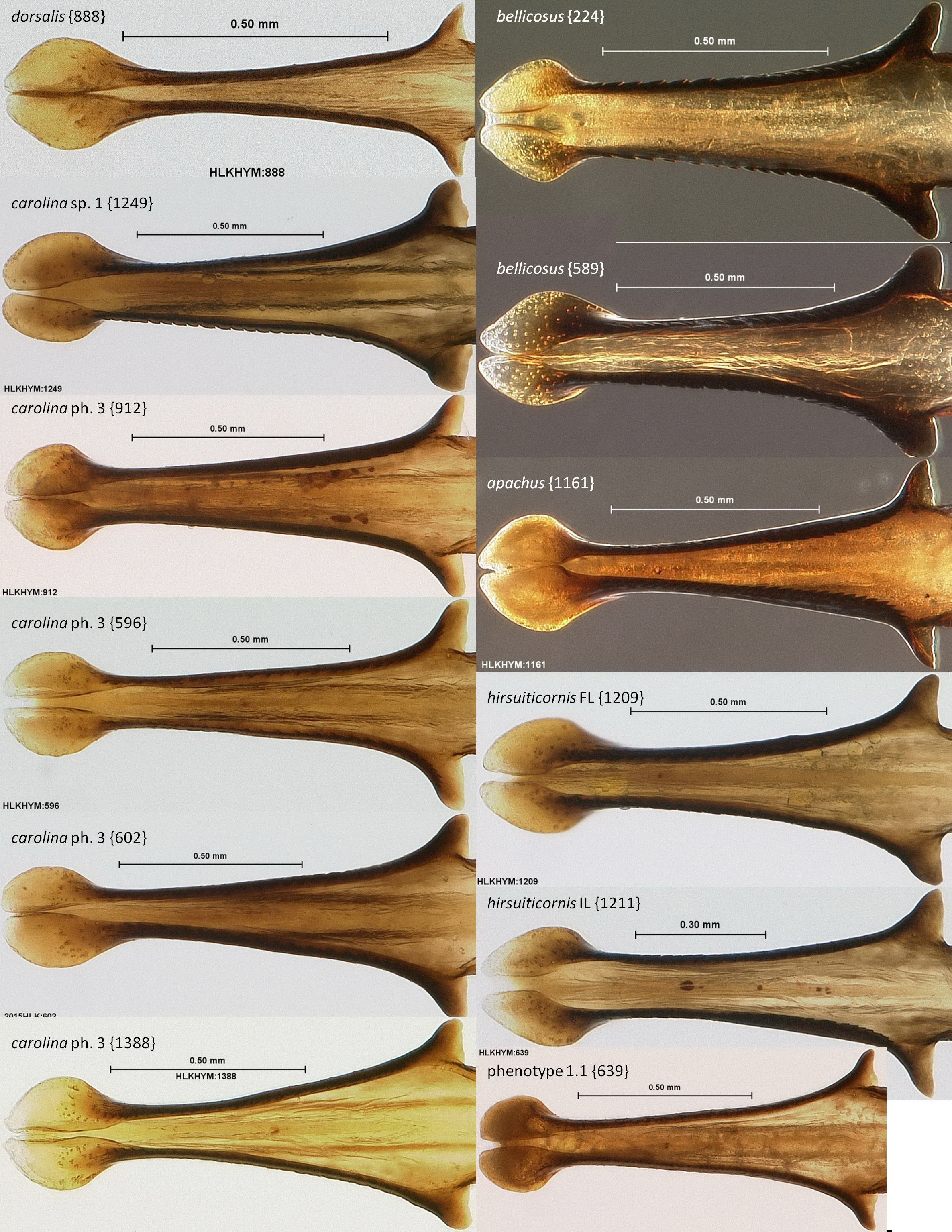

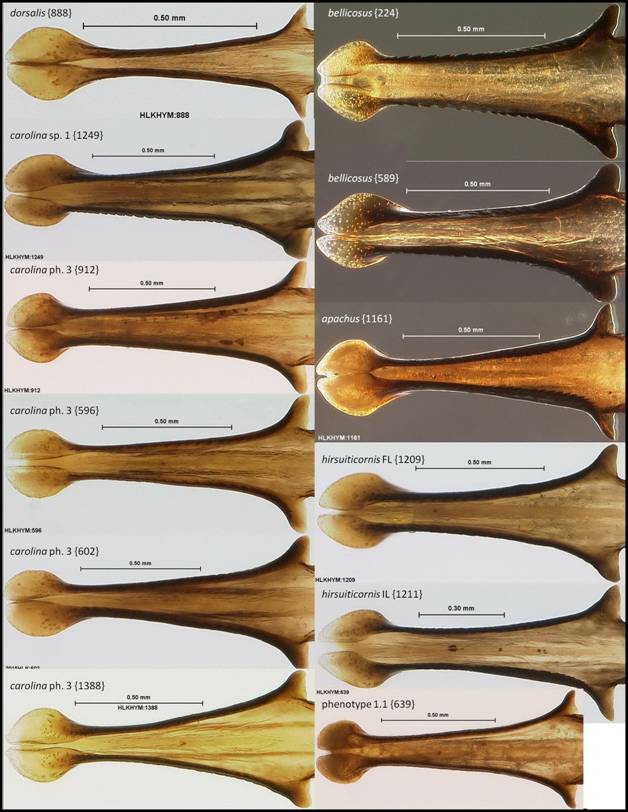

Figure C15:  Phallus apex (ventral aspect) of Florida Polistes species (part 3 of 4).





FigureC16_resize

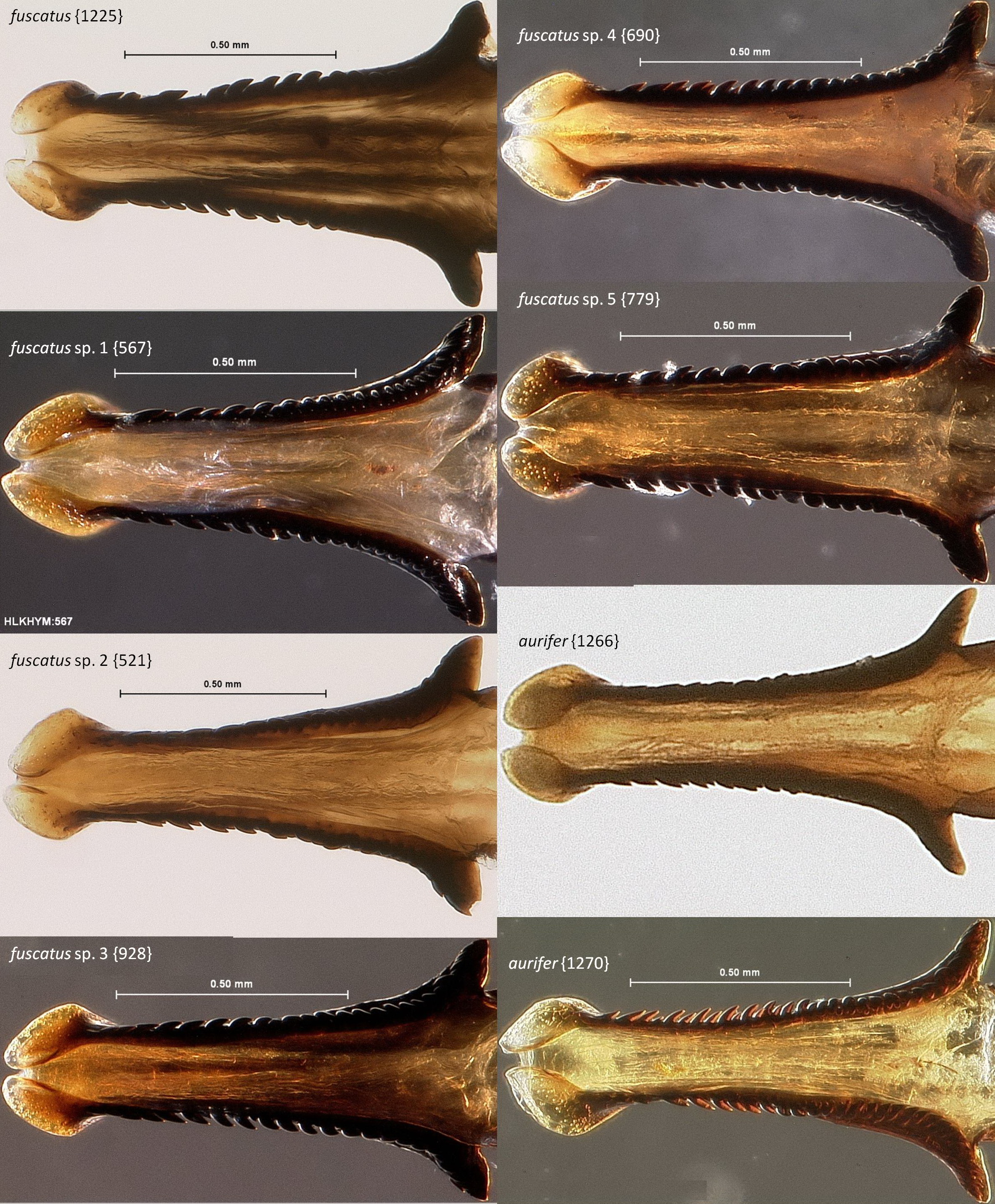

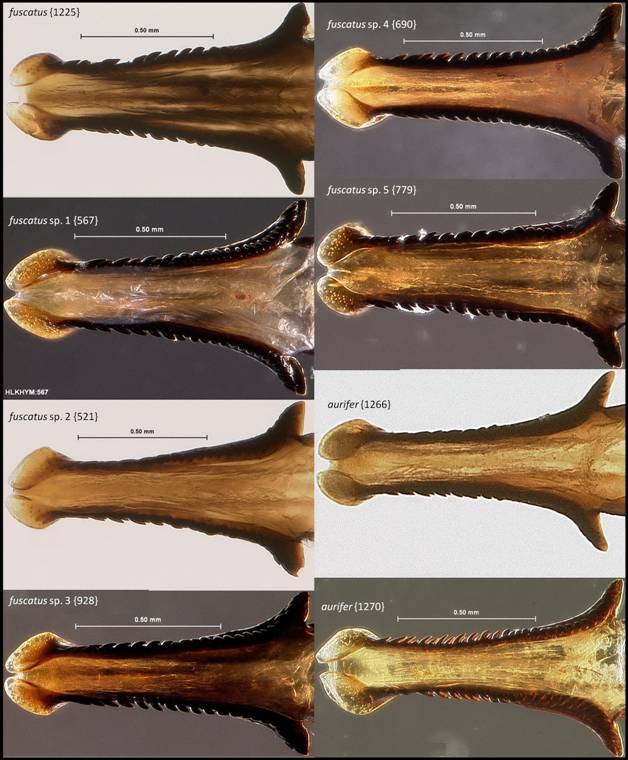

Figure C16:  Phallus apex (ventral aspect) of Florida Polistes species (part 4 of 4).





FigureC17_resize

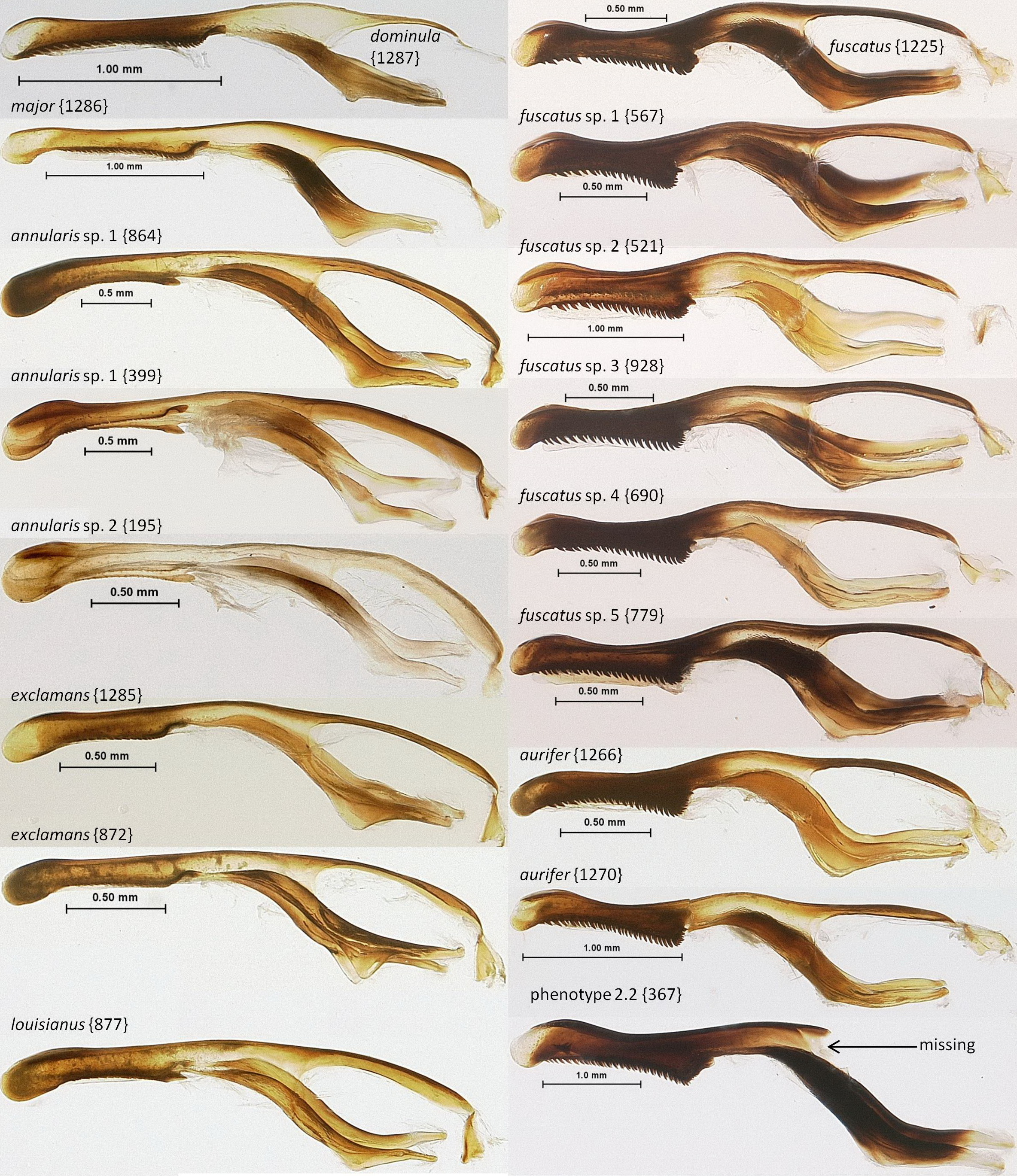

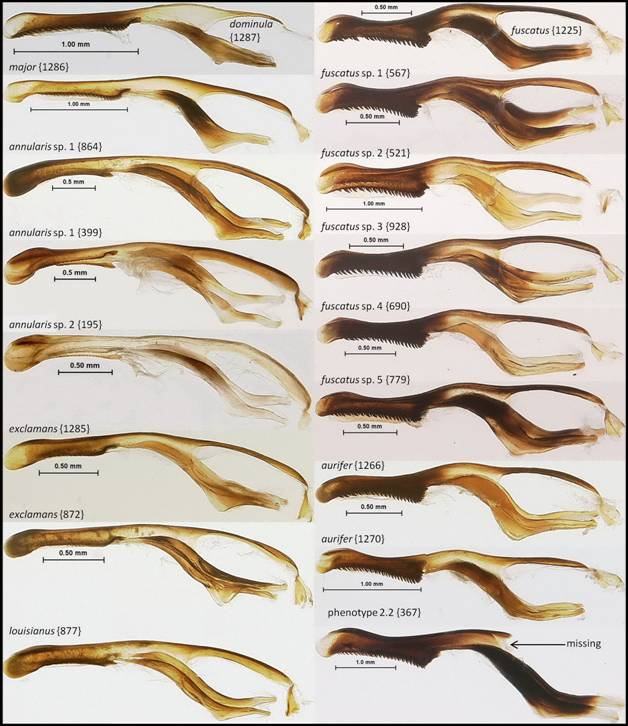

Figure C17:  Phallus (lateral aspect) of Florida Polistes species (part 1 of 2).





FigureC18_resize

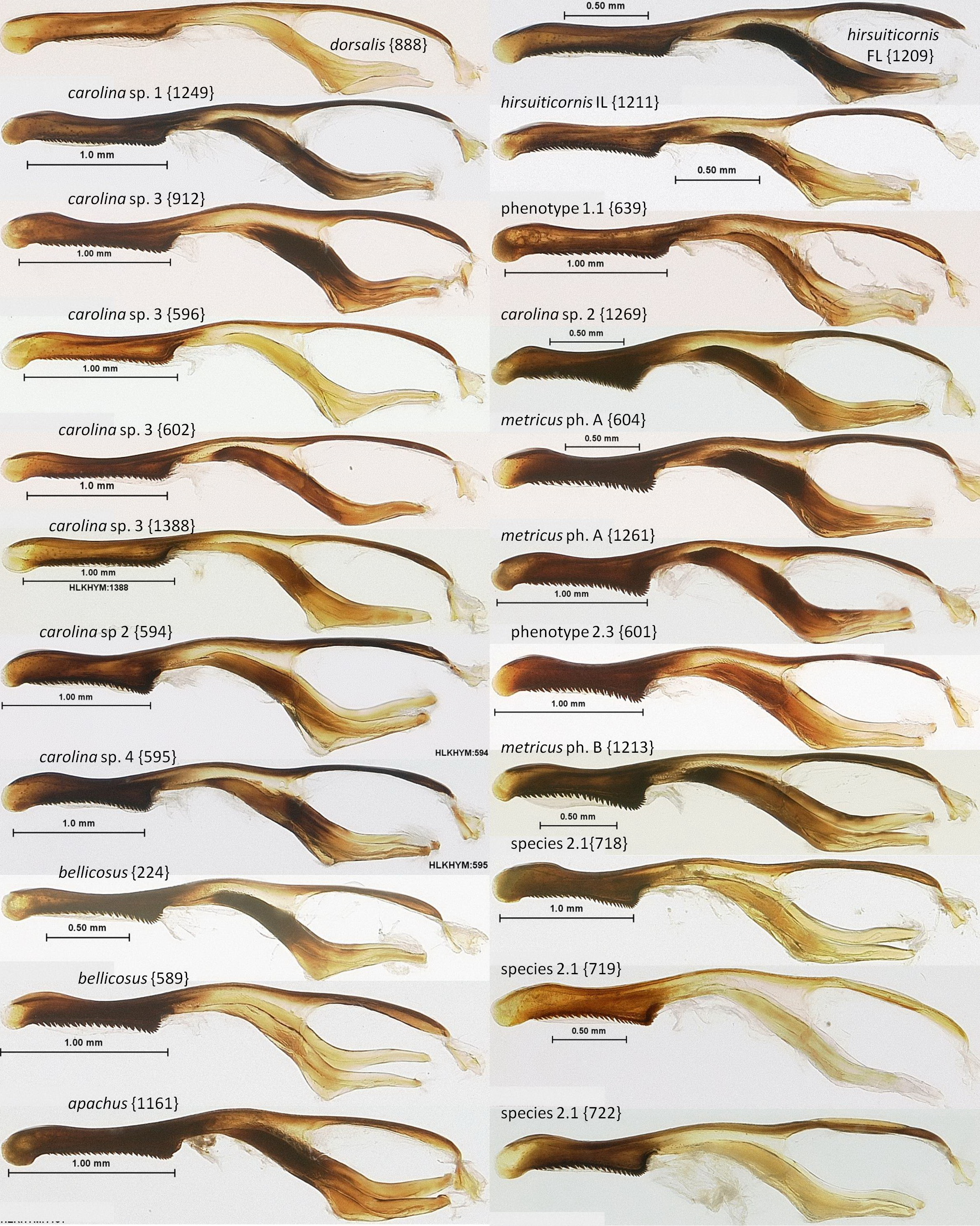

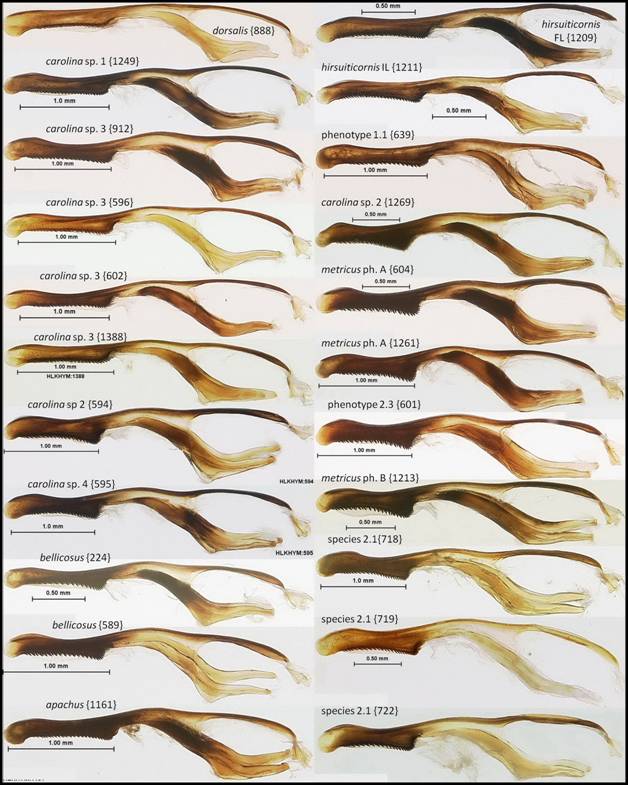

Figure C18:  Phallus (lateral aspect) of Florida Polistes species (part 2 of 2).





FigureC19_resize

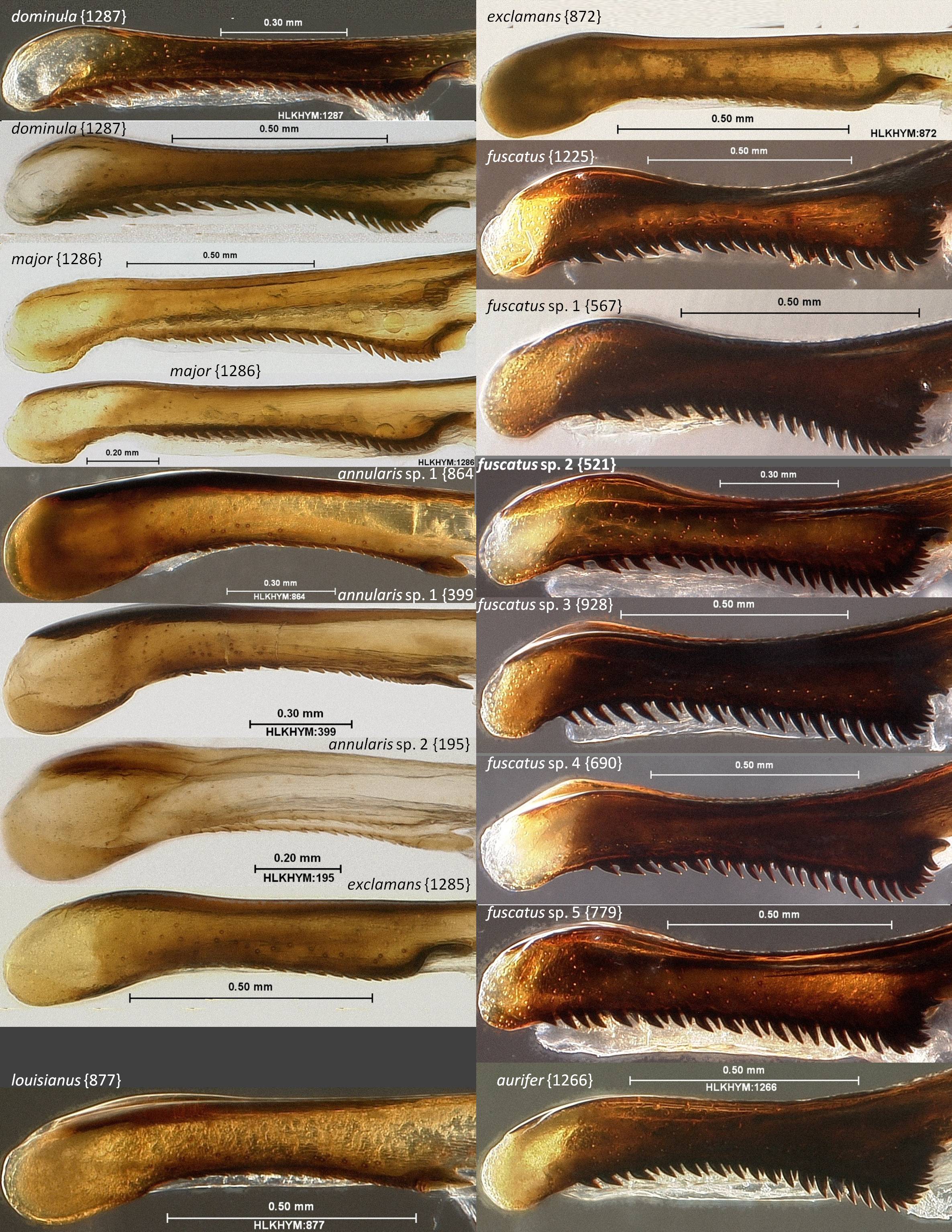

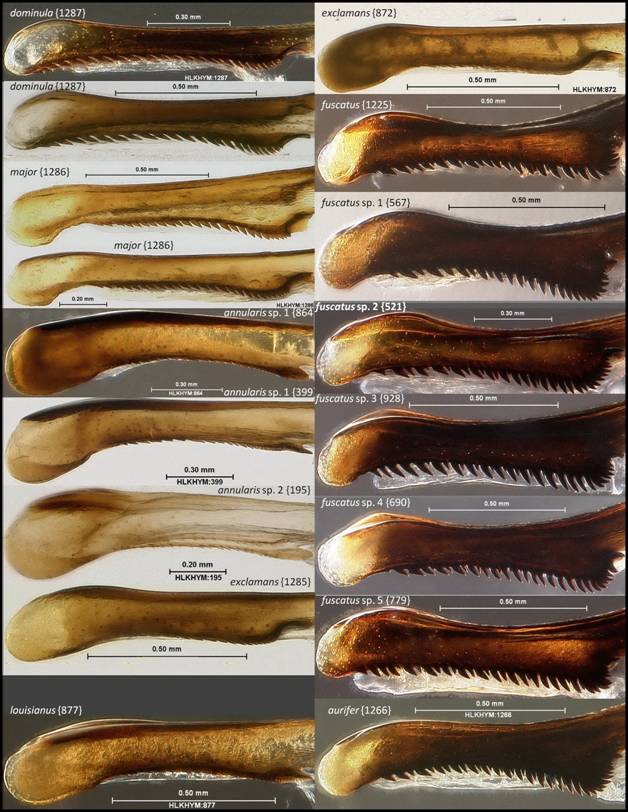

Figure C19:  Phallus apex (lateral aspect) of Florida Polistes species (part 1 of 3).





FigureC20_resize

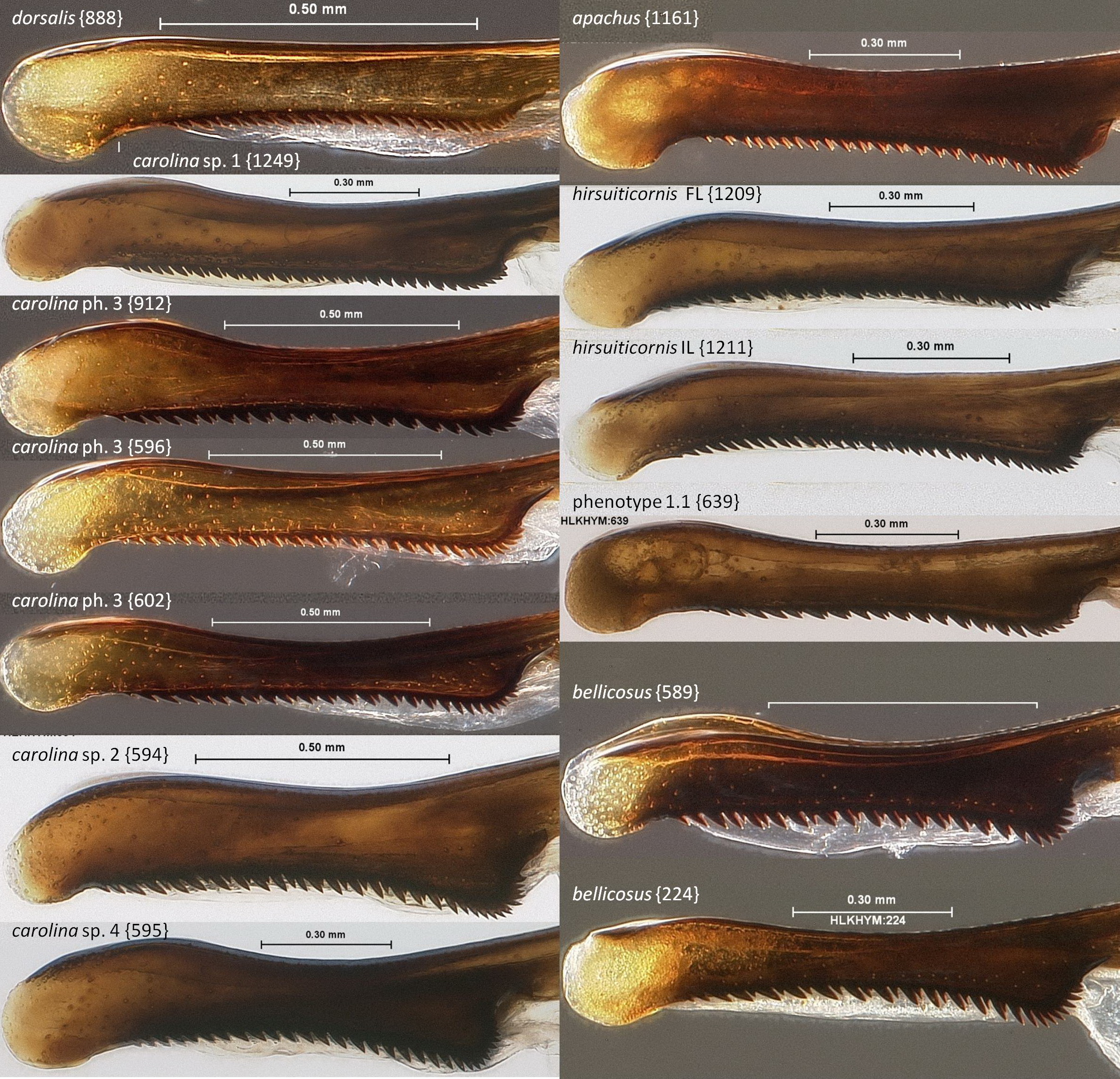

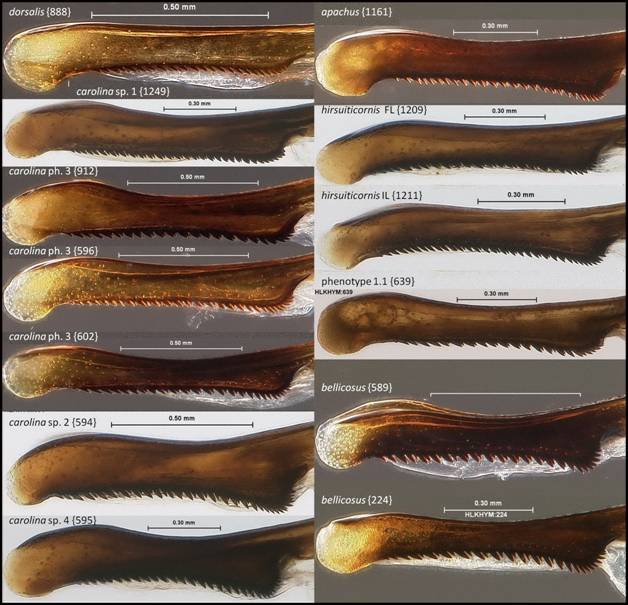

Figure C20:  Phallus apex (lateral aspect) of Florida Polistes species (part 2 of 3).





FigureC21_resize

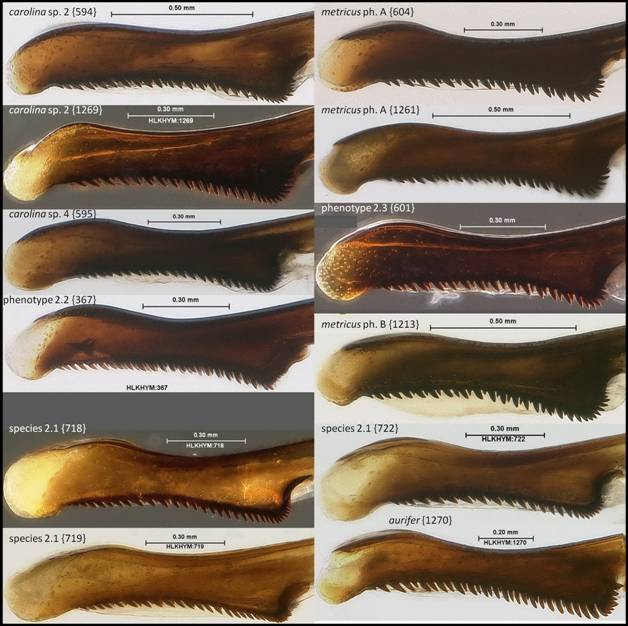

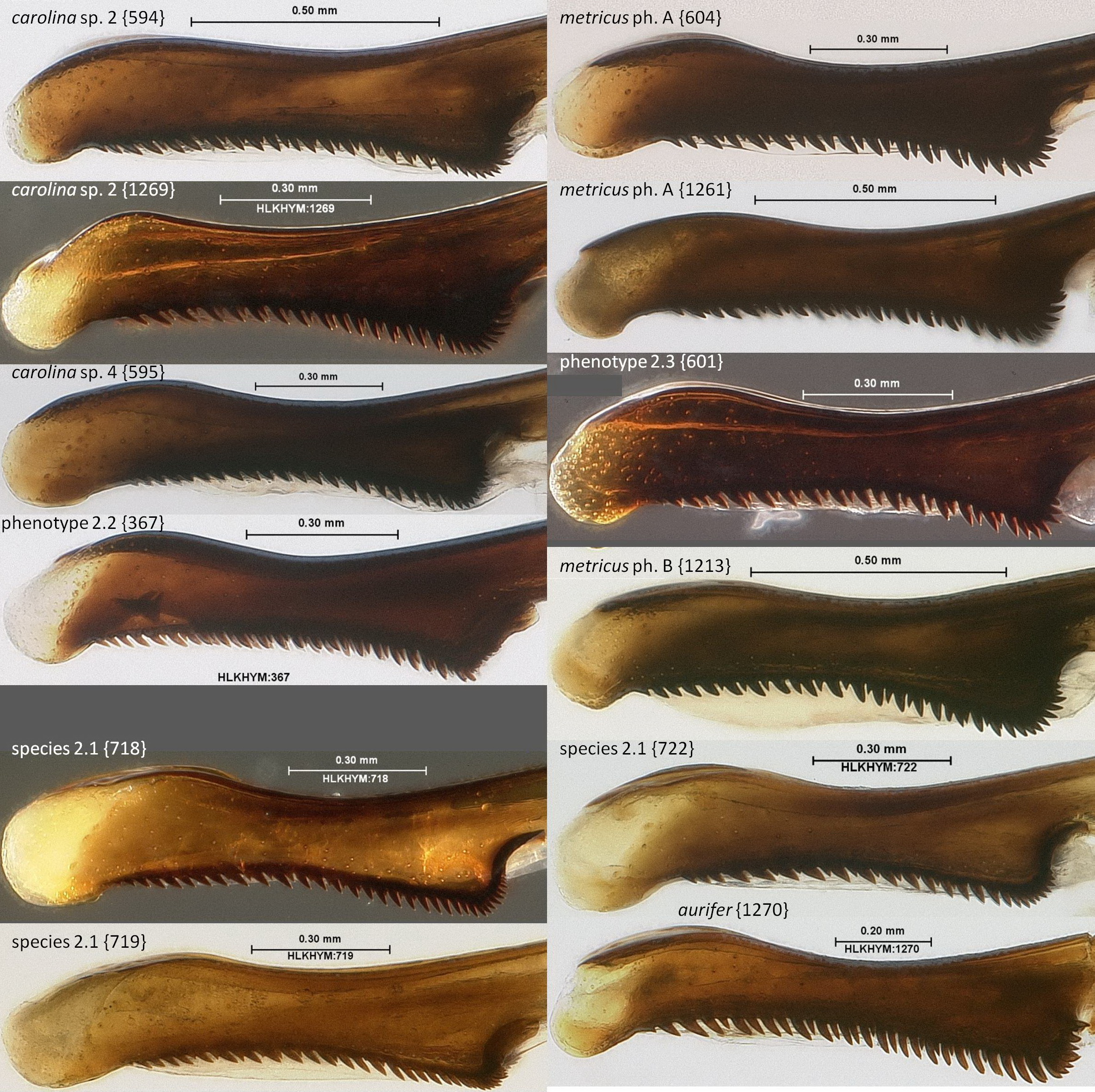

Figure C21:  Phallus apex (lateral aspect) of Florida Polistes species (part 3 of 3).





FigureC22_resize

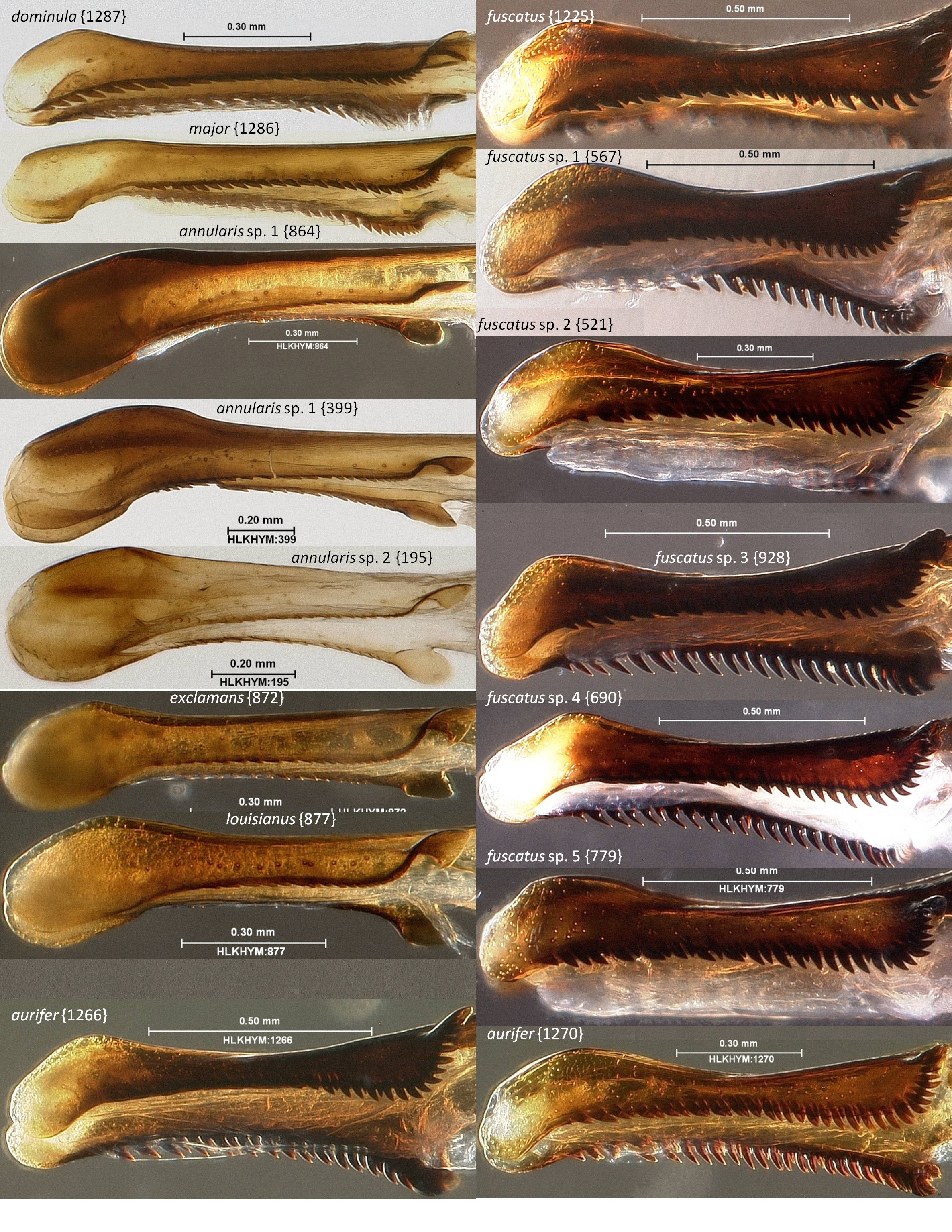

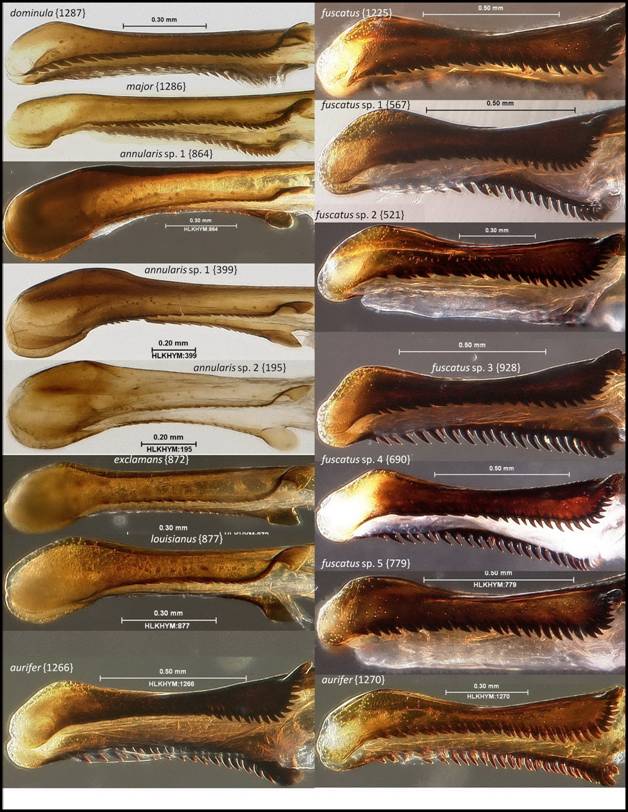

Figure C22:  Phallus apex (tilted lateral aspect) of Florida Polistes species (part 1 of 3).





FigureC23_resize

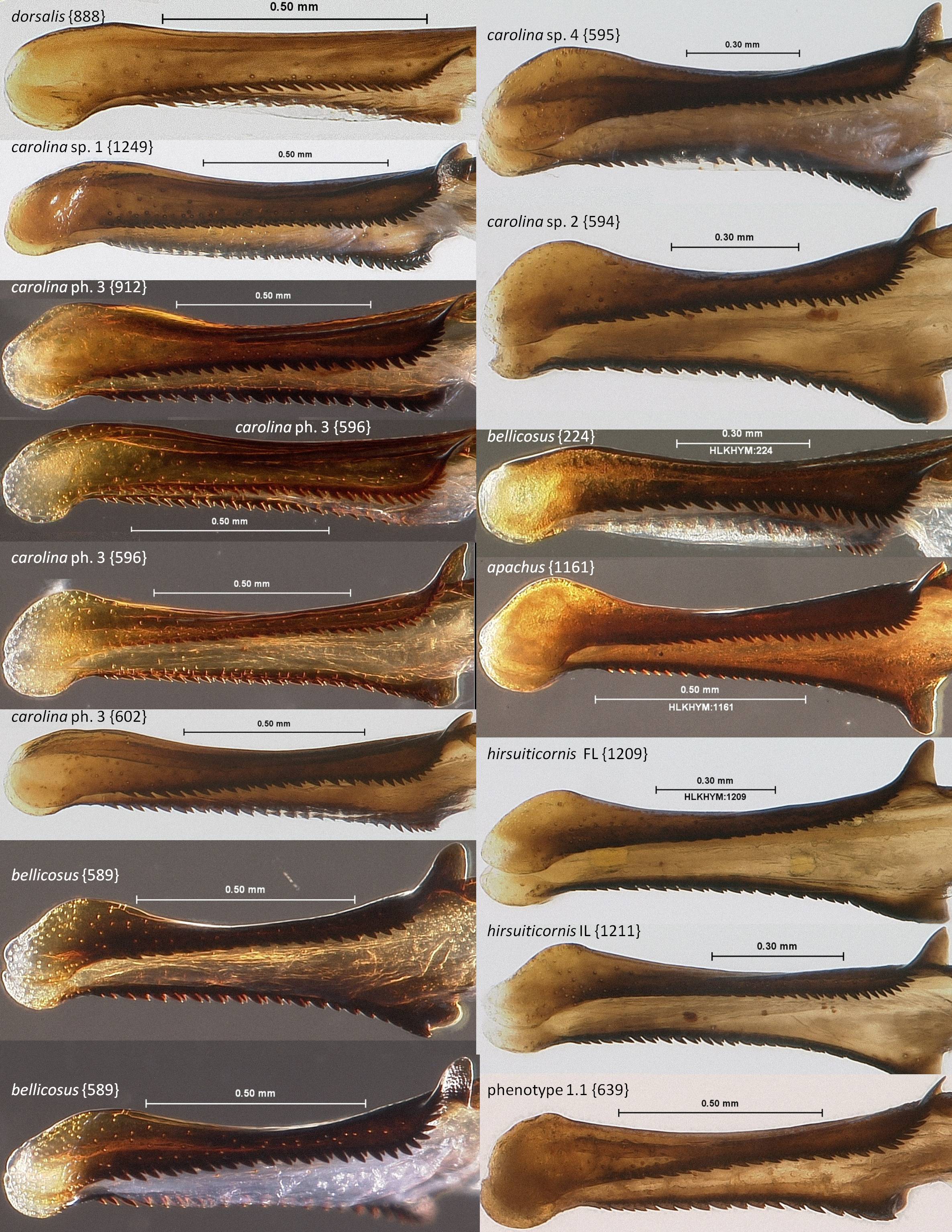

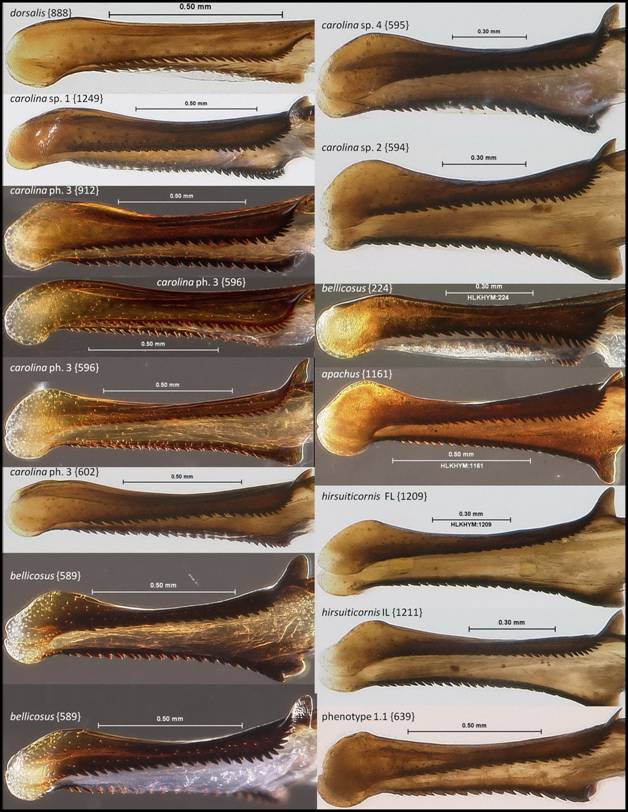

Figure C23:  Phallus apex (tilted lateral aspect) of Florida Polistes species (part 2 of 3).





FigureC24_resize

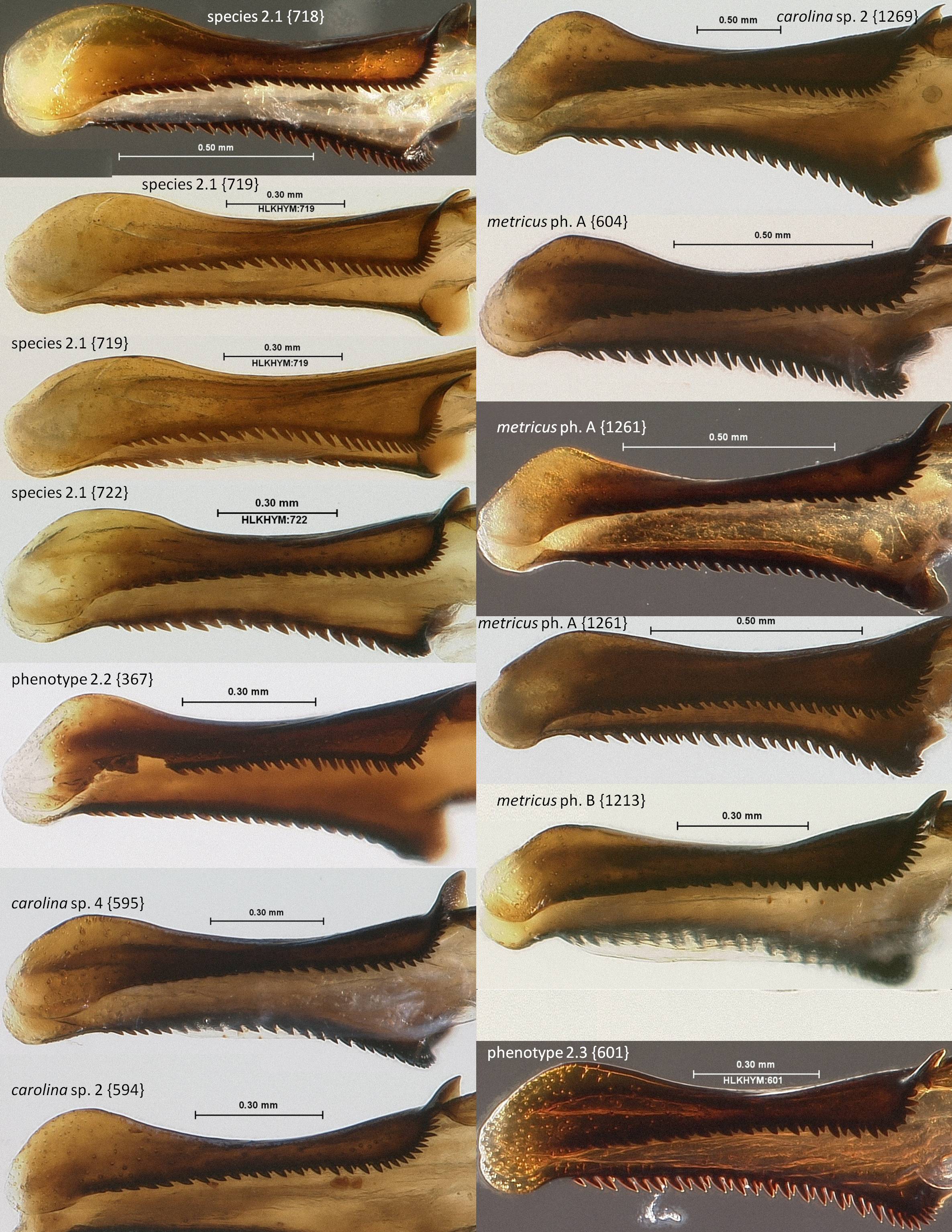

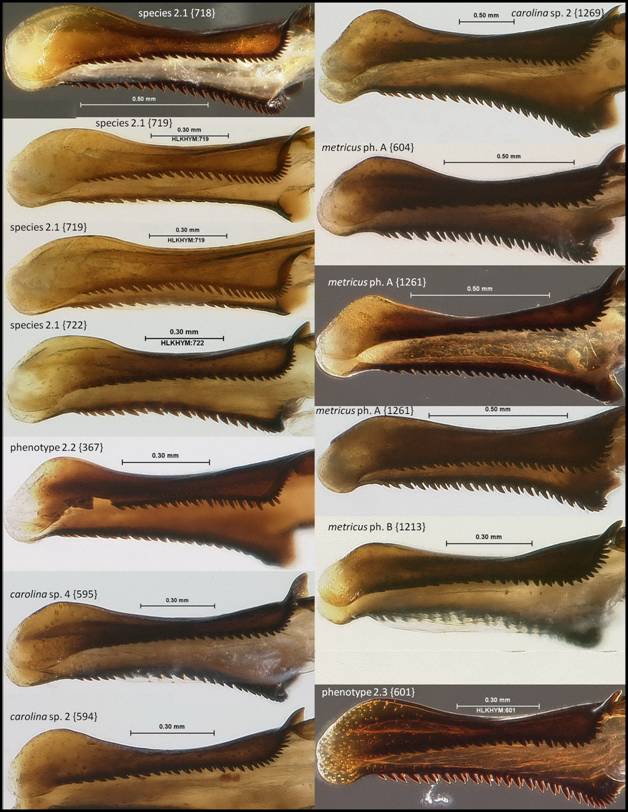

Figure C24:  Phallus apex (tilted lateral aspect) of Florida Polistes species (part 3 of 3).





FigureC25_resize

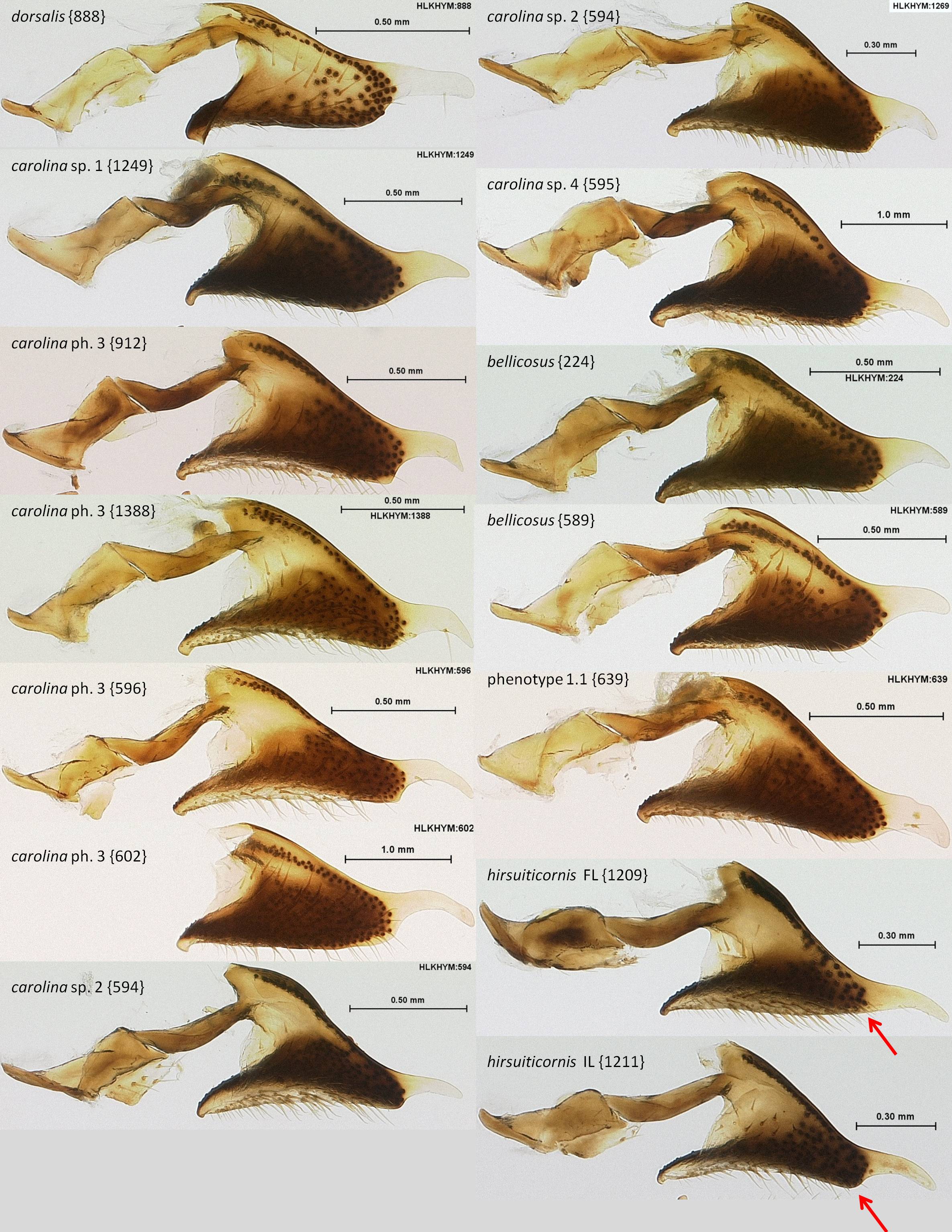

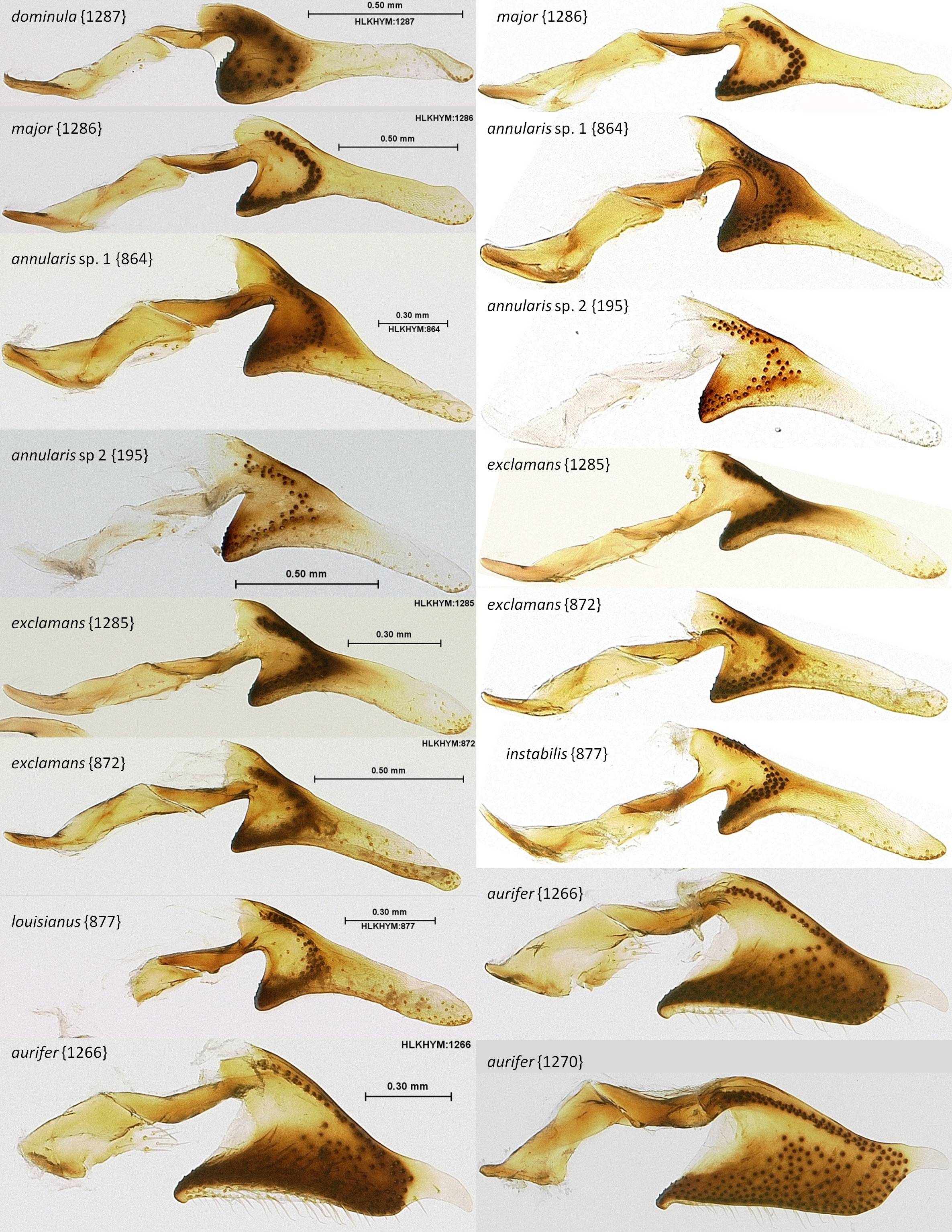

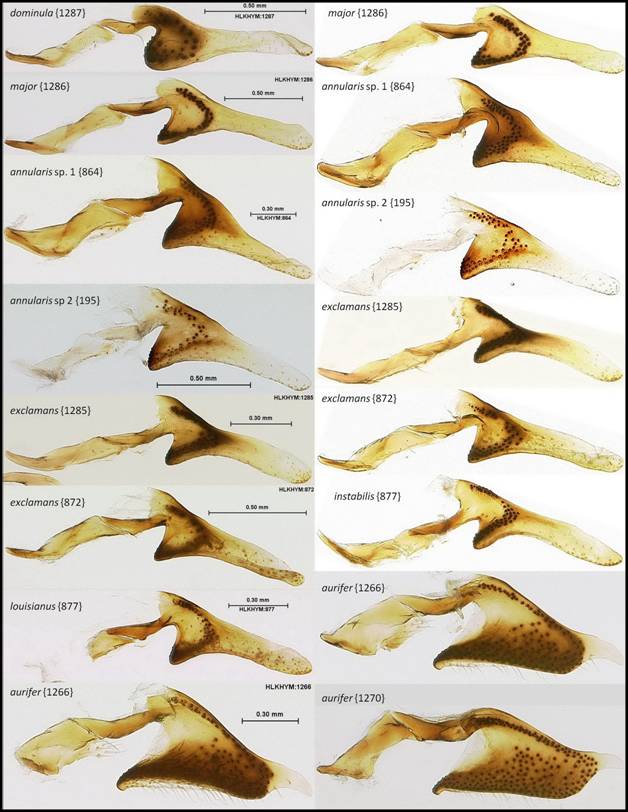

Figure C25: Digitus (inner side (on left), outer side (on right), lateral aspect) of Florida Polistes species (part 1 of 3 for inner and outer sides).





FigureC26_resize

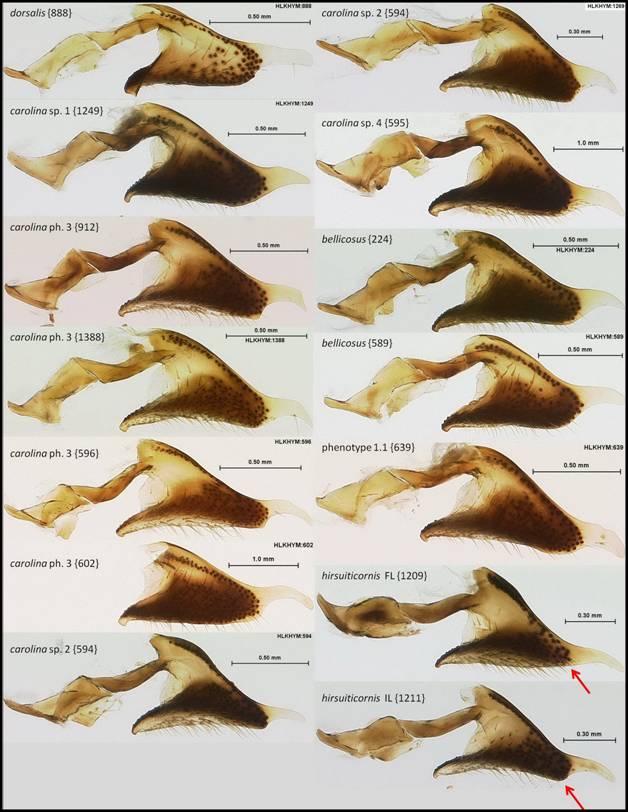

Figure C26: Digitus (inner side, lateral aspect) of Florida Polistes species (part 2 of 3 for inner side).





FigureC27_resize

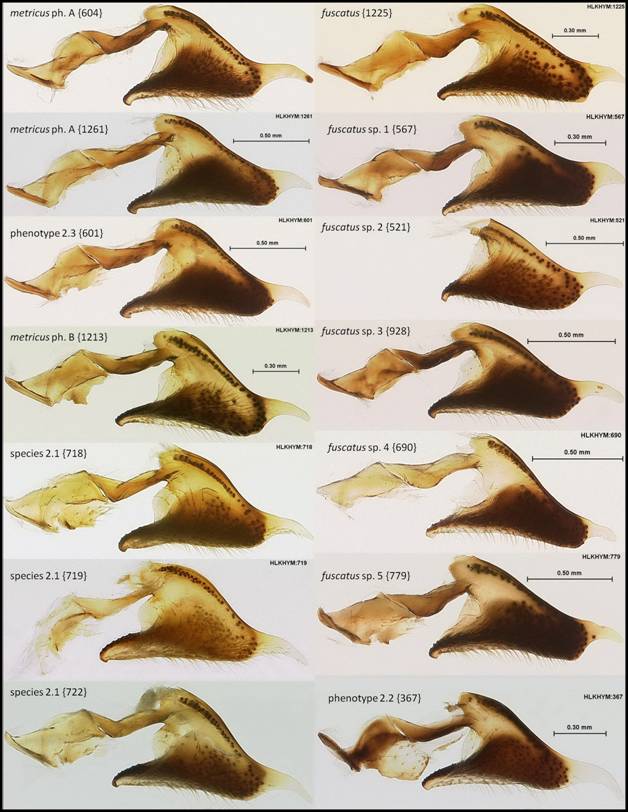

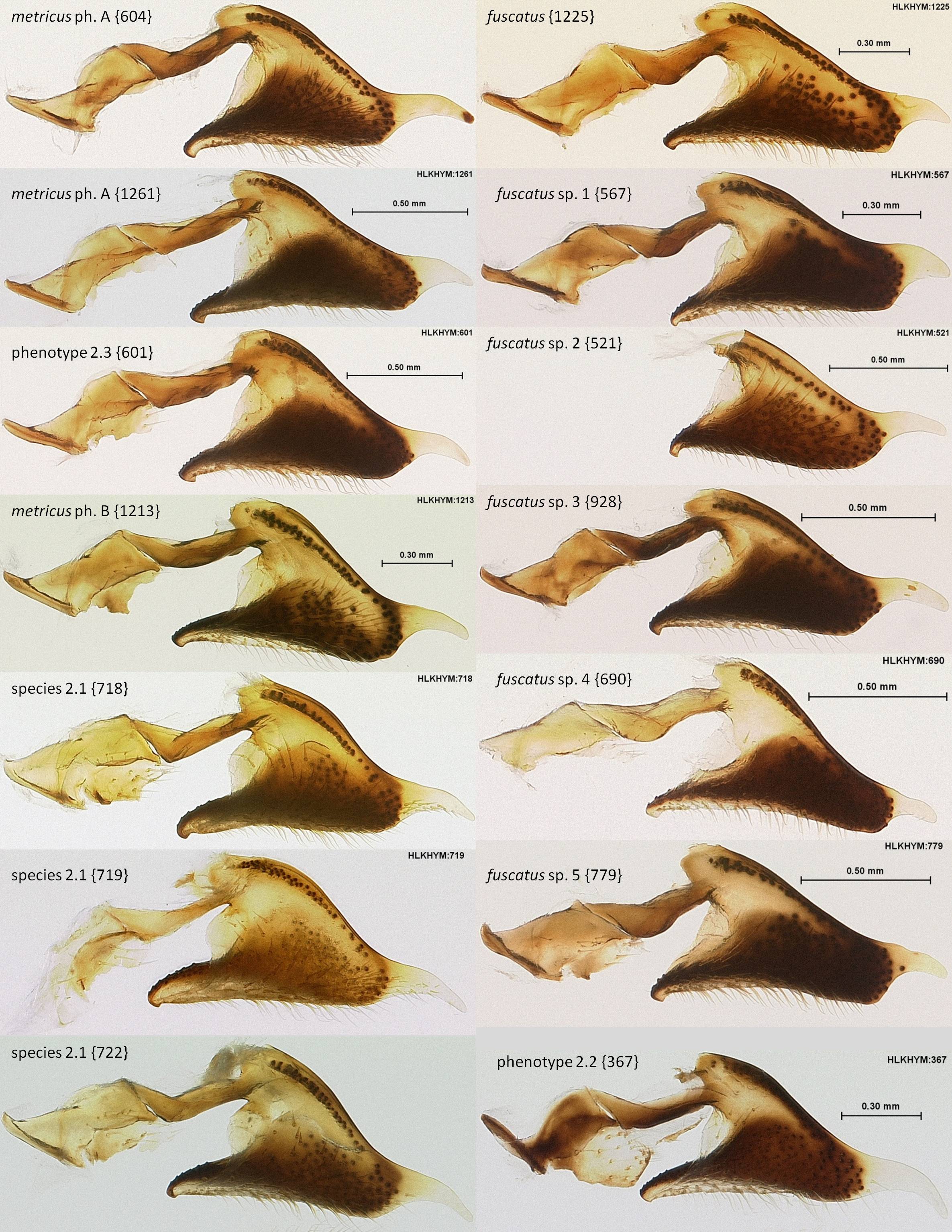

Figure C27: Digitus (inner side, lateral aspect) of Florida Polistes species (part 3 of 3 for inner side).





FigureC28_resize

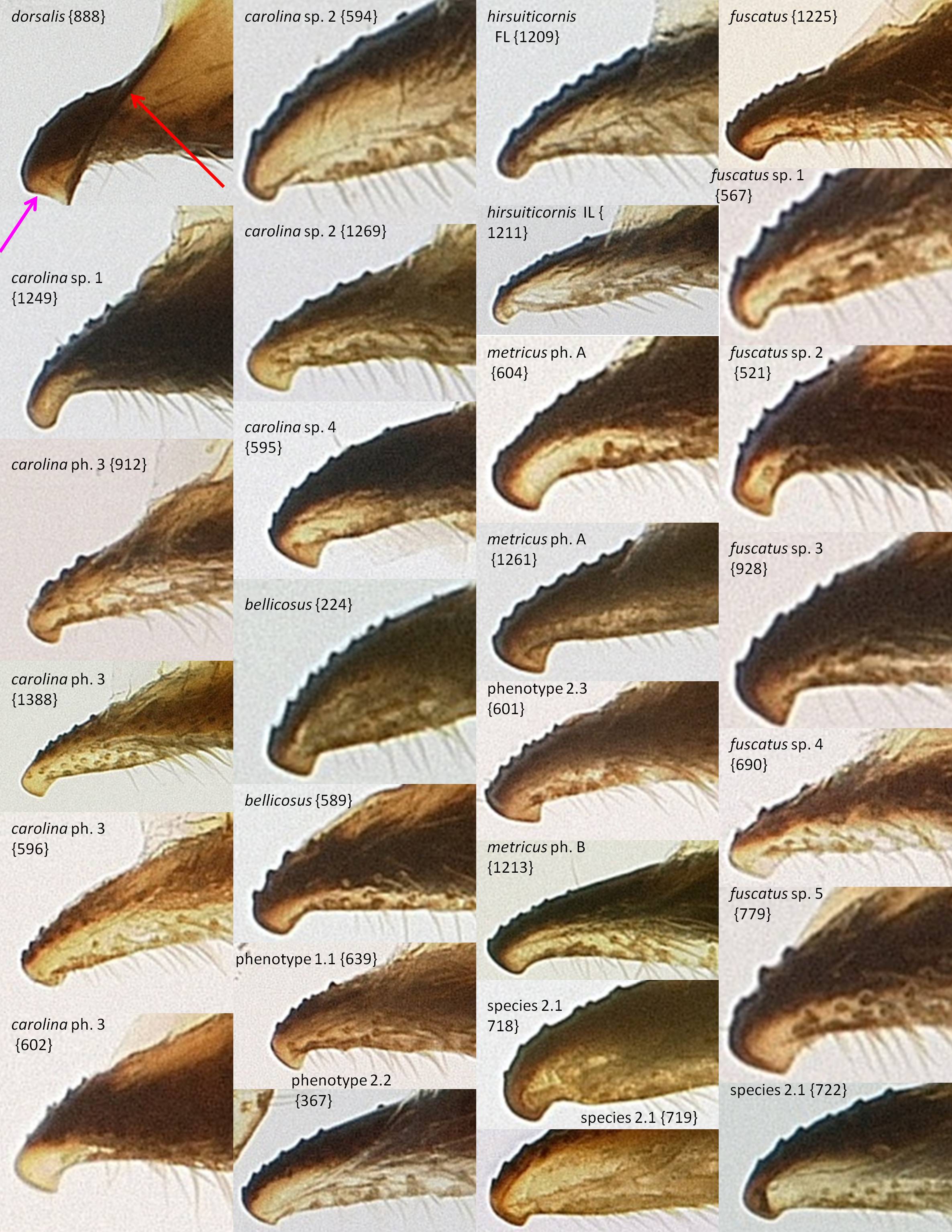

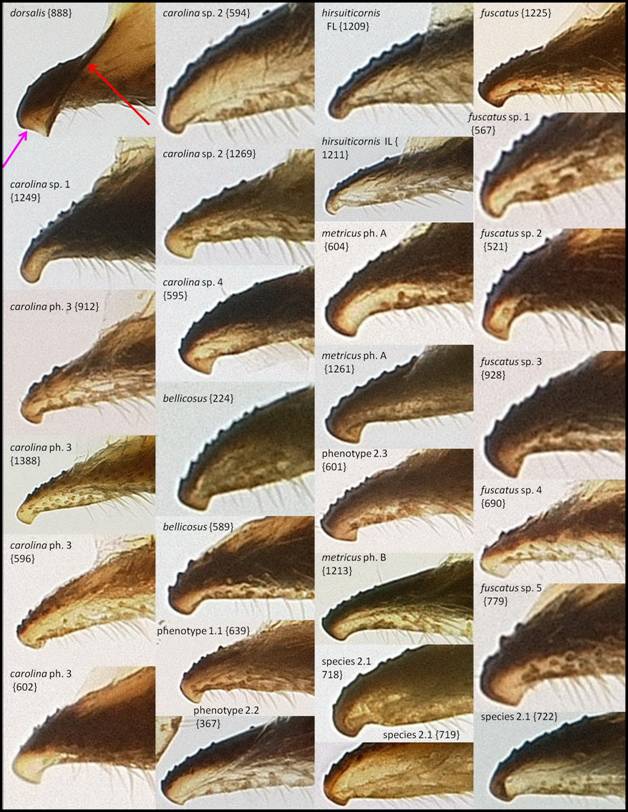

Figure C28:  Antereoventral lobe of the digitus (inner side) of Florida Fuscopolistes species.





FigureC29_resize

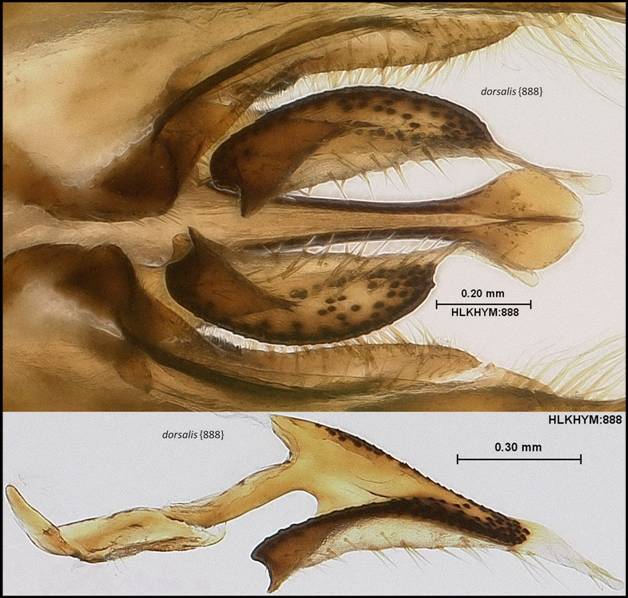

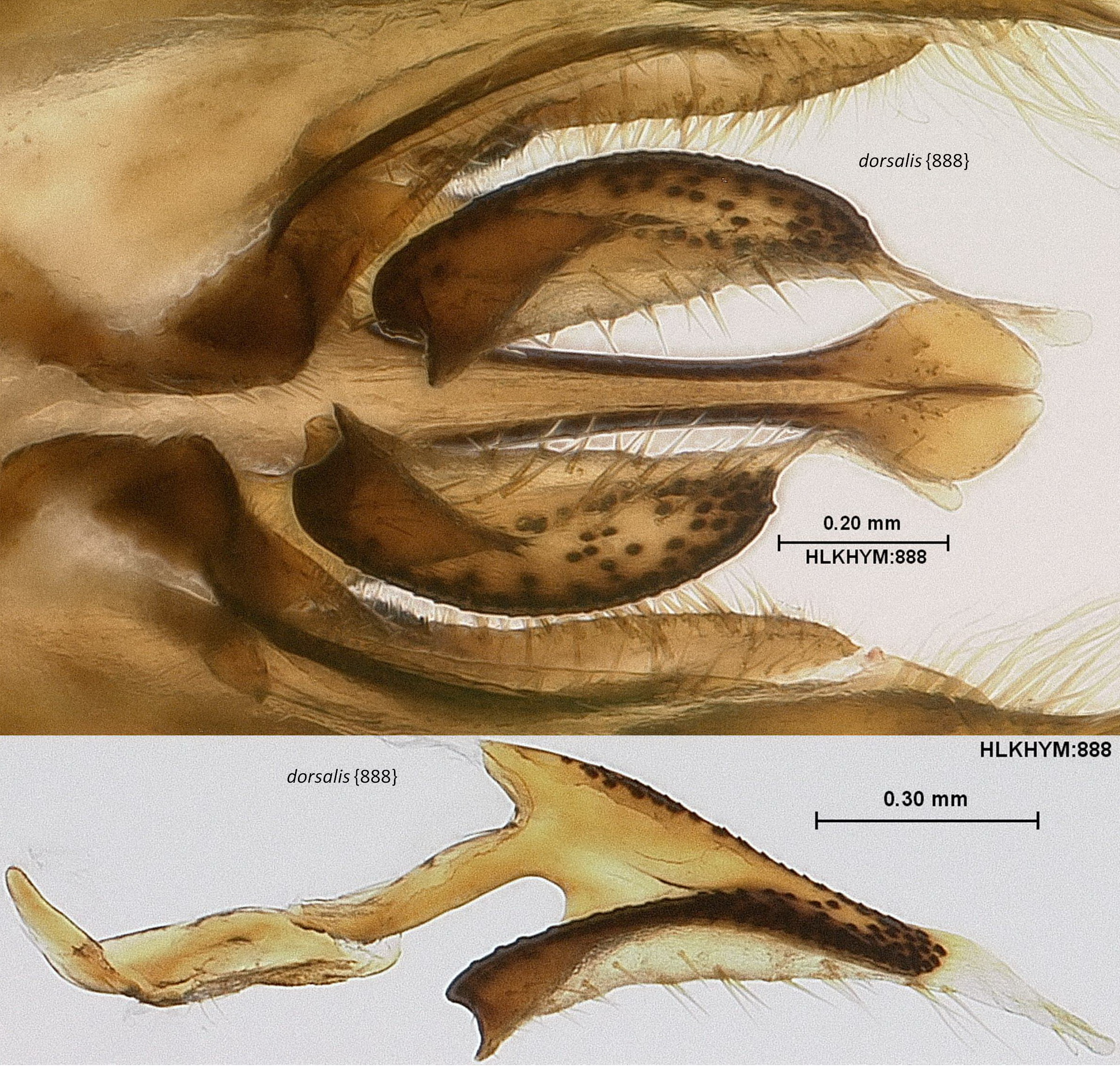

Figure C29:  Polistes dorsalis.  TOP: Each digitus in ventral aspect, showing concave antereoventral lobe and carina (on inner side of anterior portion of each digitus).  BOTTOM:  The outer side of a digitus (tilted lateral aspect) showing concave antereoventral lobe.





FigureC30_resize

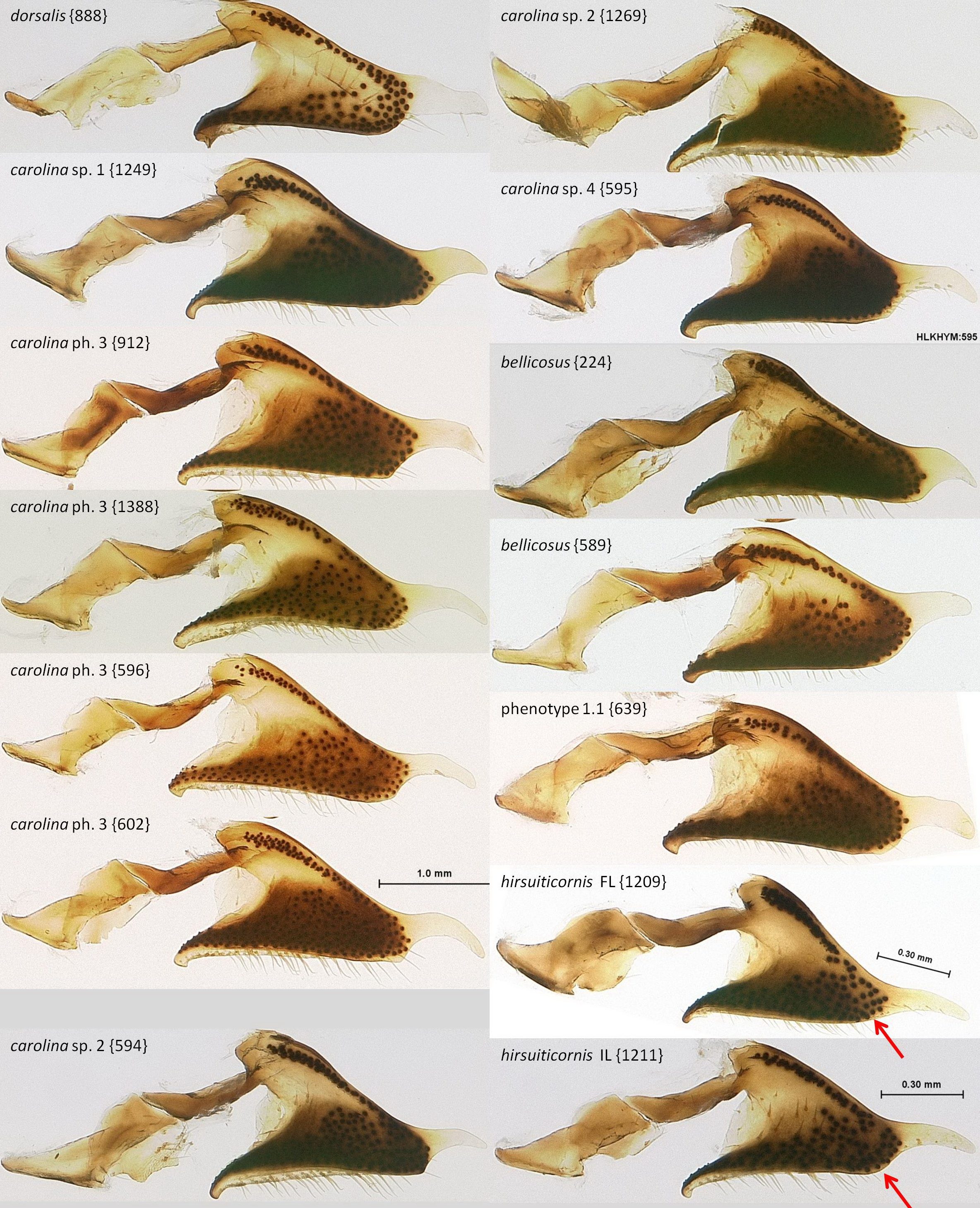

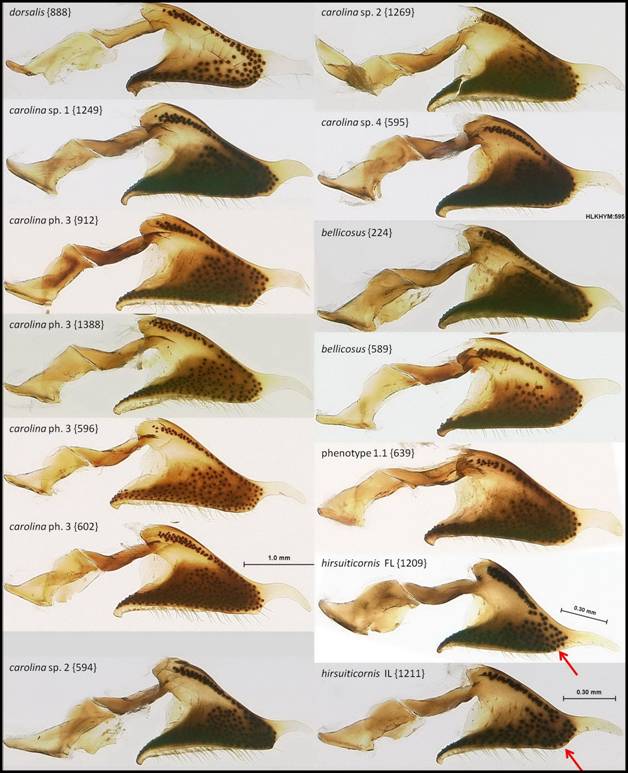

Figure C30: Digitus (outer side, lateral aspect) of Florida Polistes species (part 2 of 3 for outer side).





FigureC31_resize

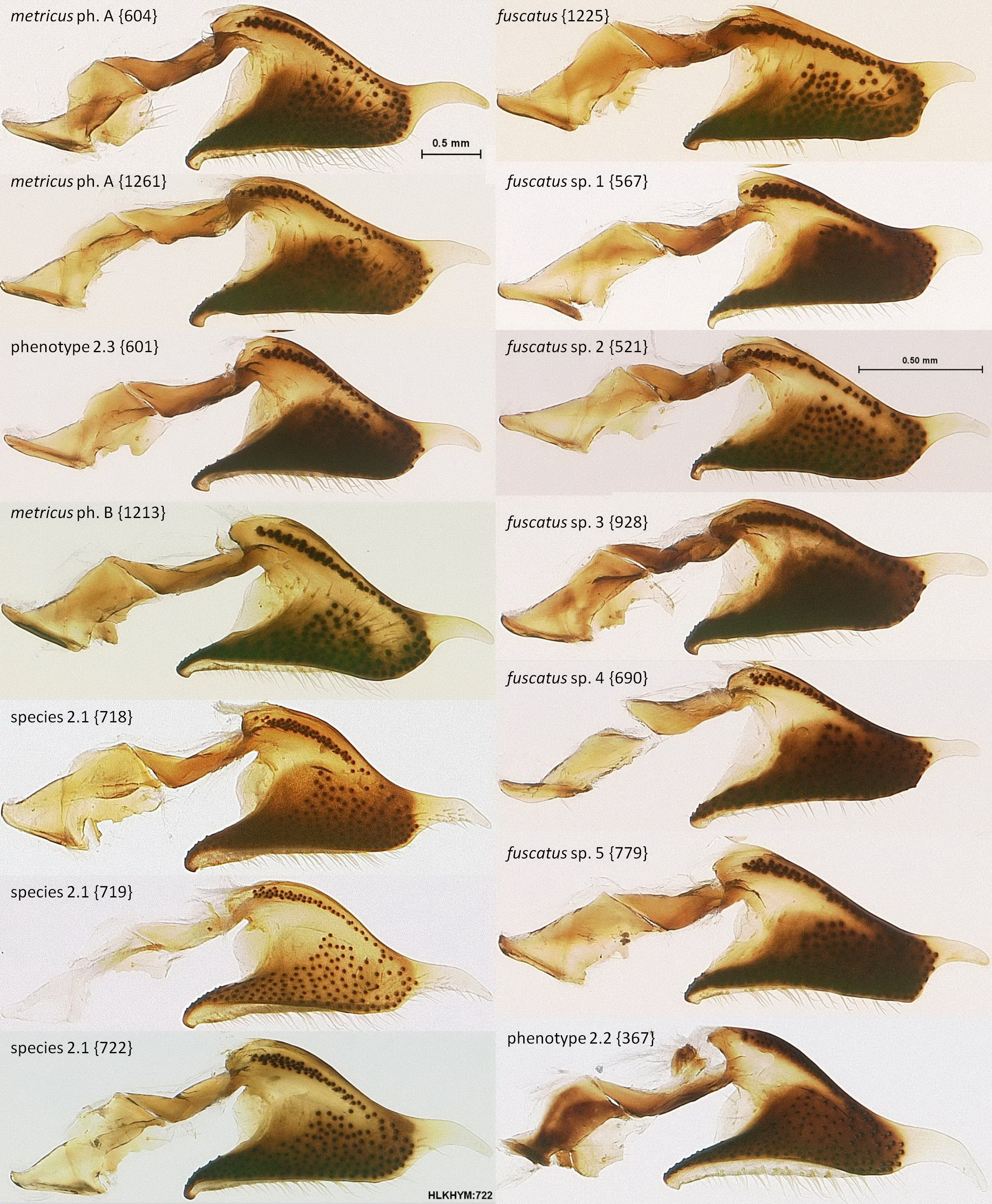

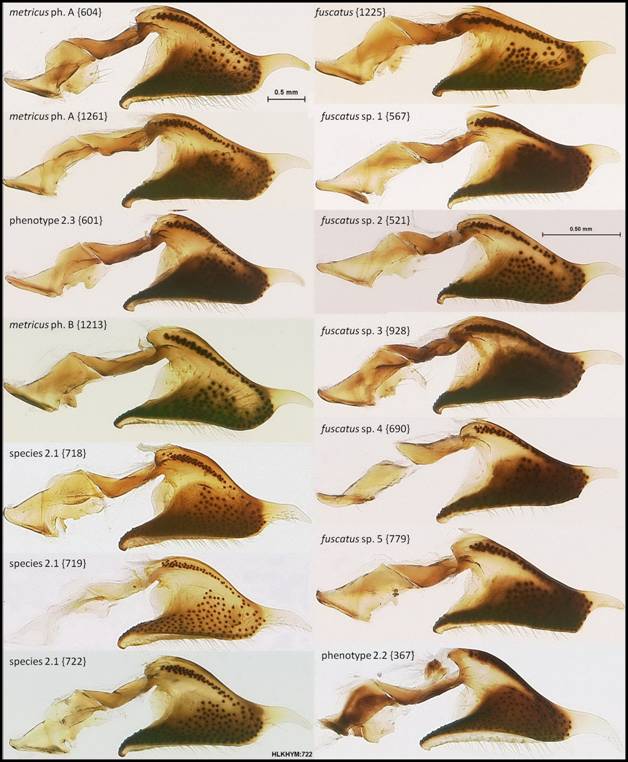

Figure C31: Digitus (outer side, lateral aspect) of Florida Polistes species (part 3 of 3 for outer side).





FigureC32_resize

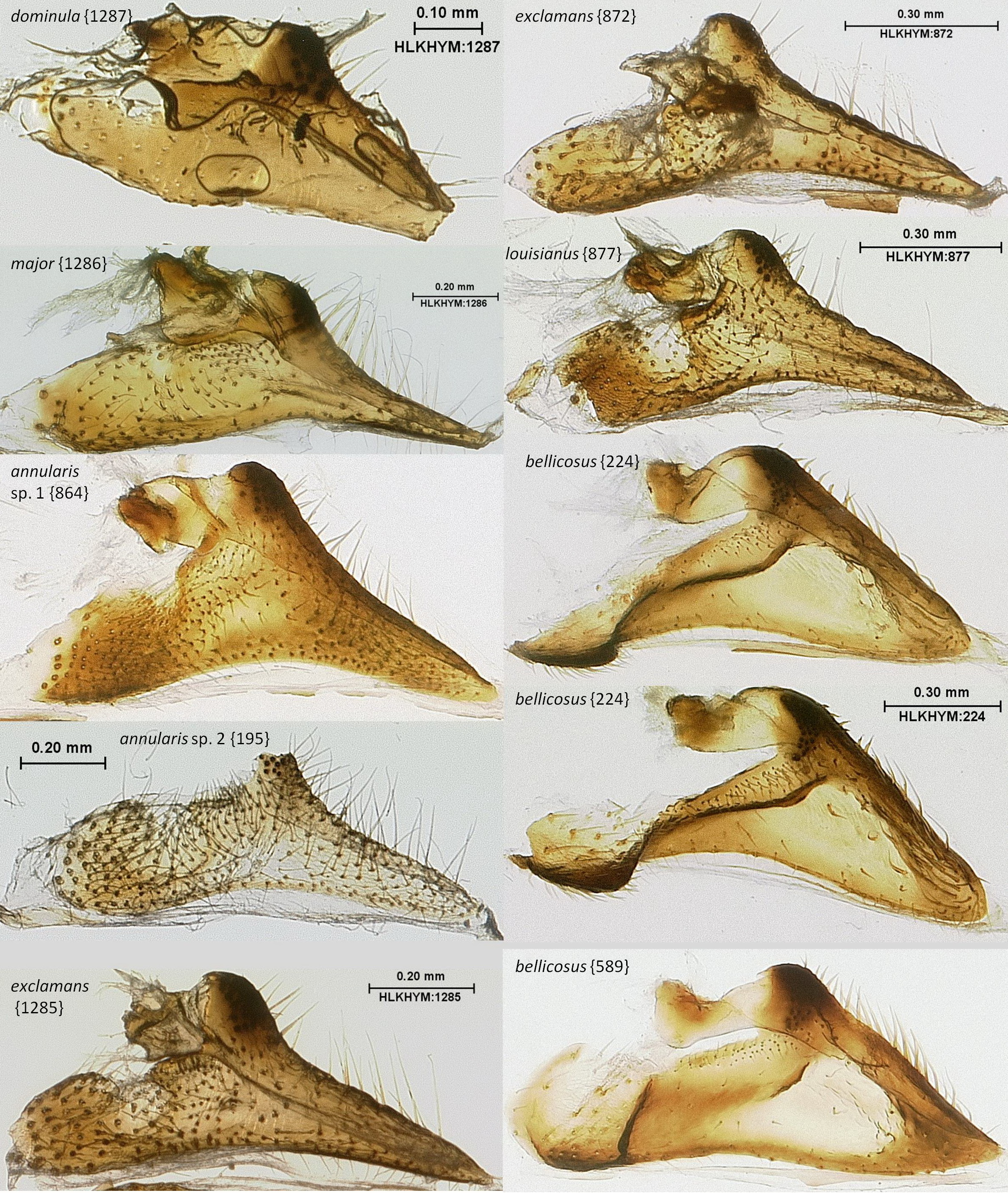

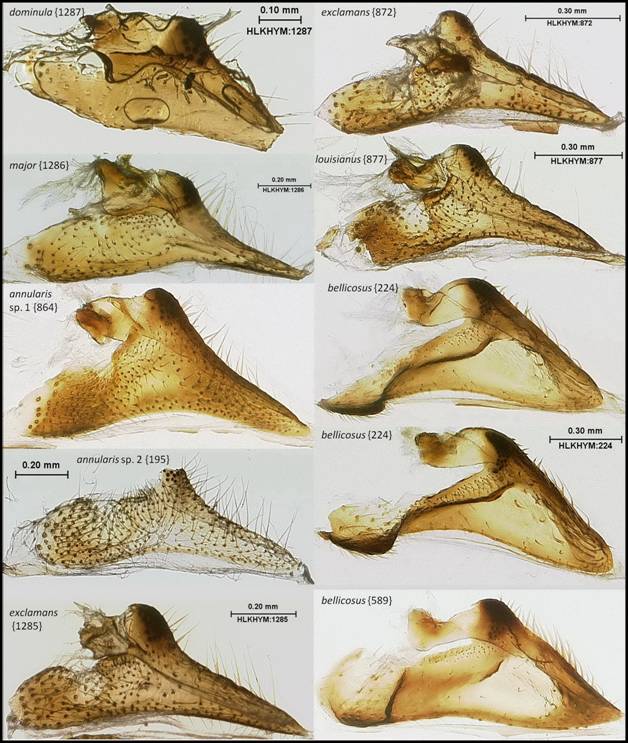

Figure C32:  Cuspis (outer side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC33_resize

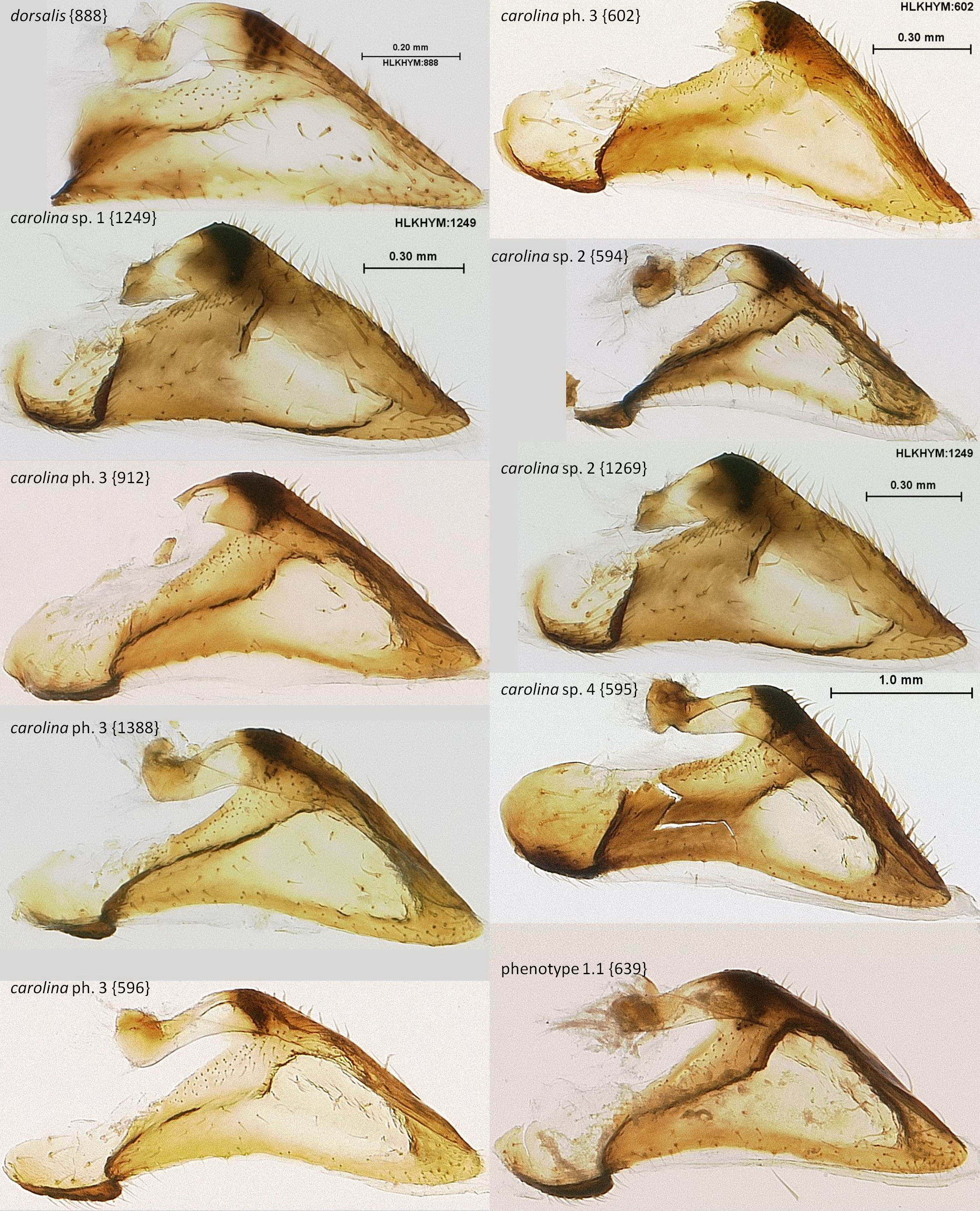

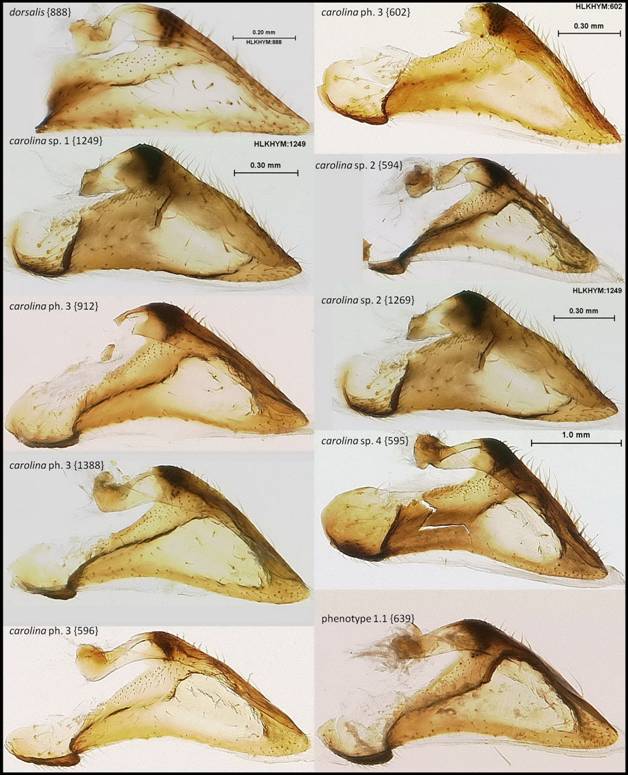

Figure C33:  Cuspis (outer side, lateral aspect) of Florida Polistes species (part 2 of 4).





FigureC34_resize

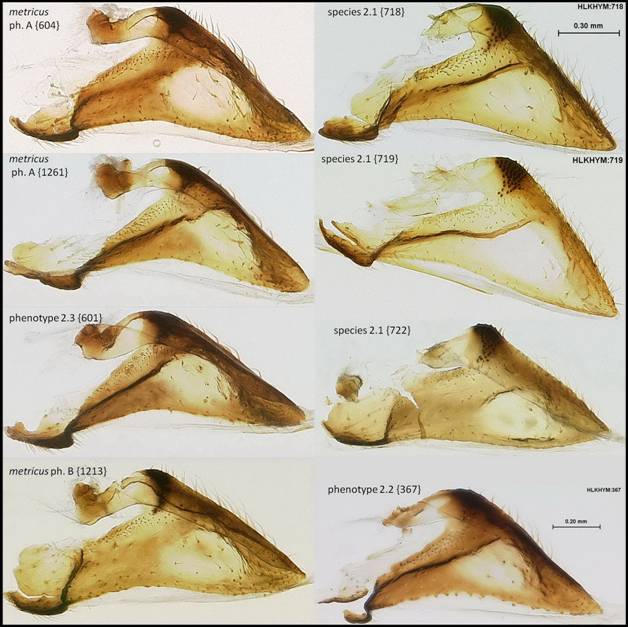

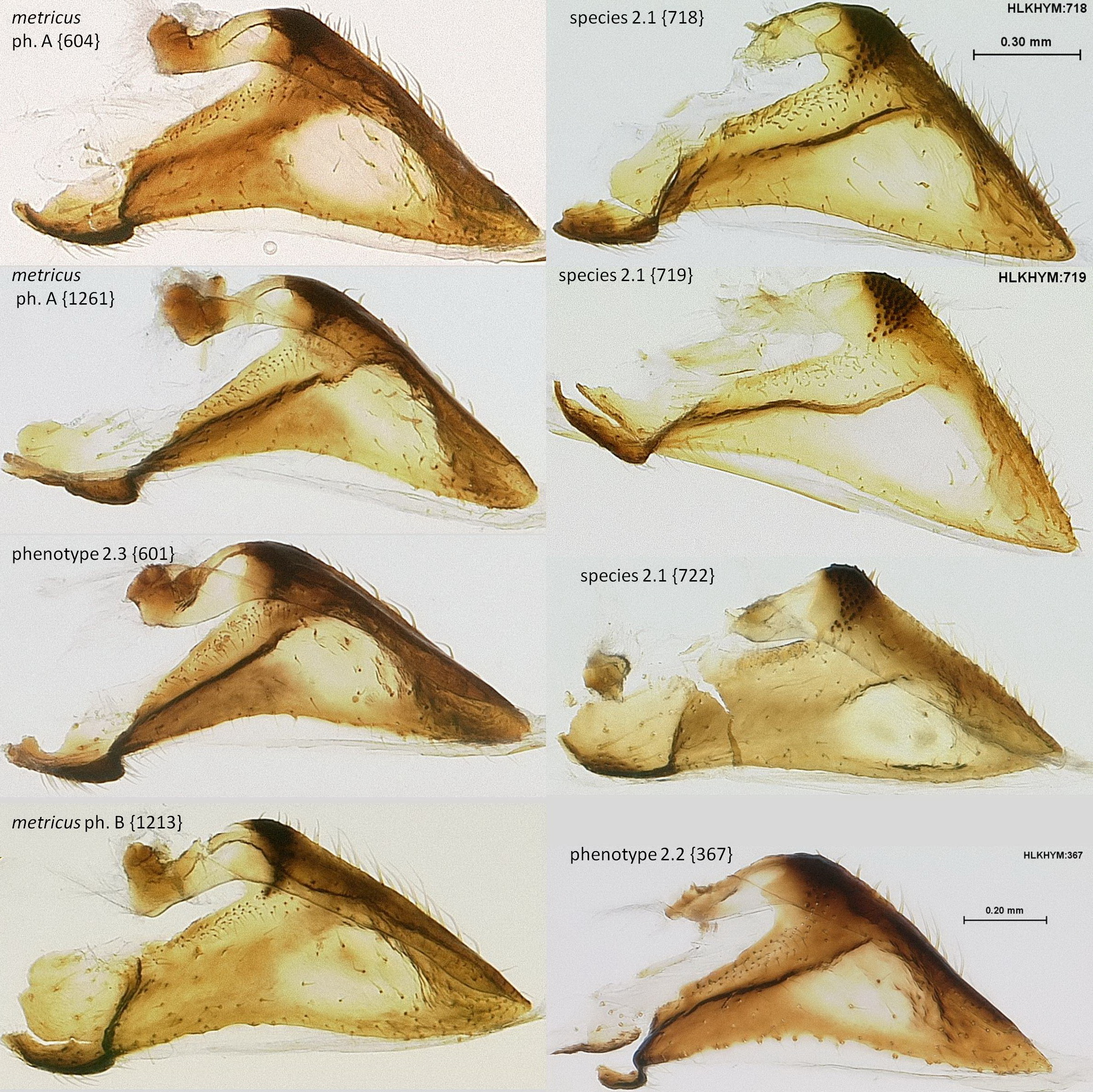

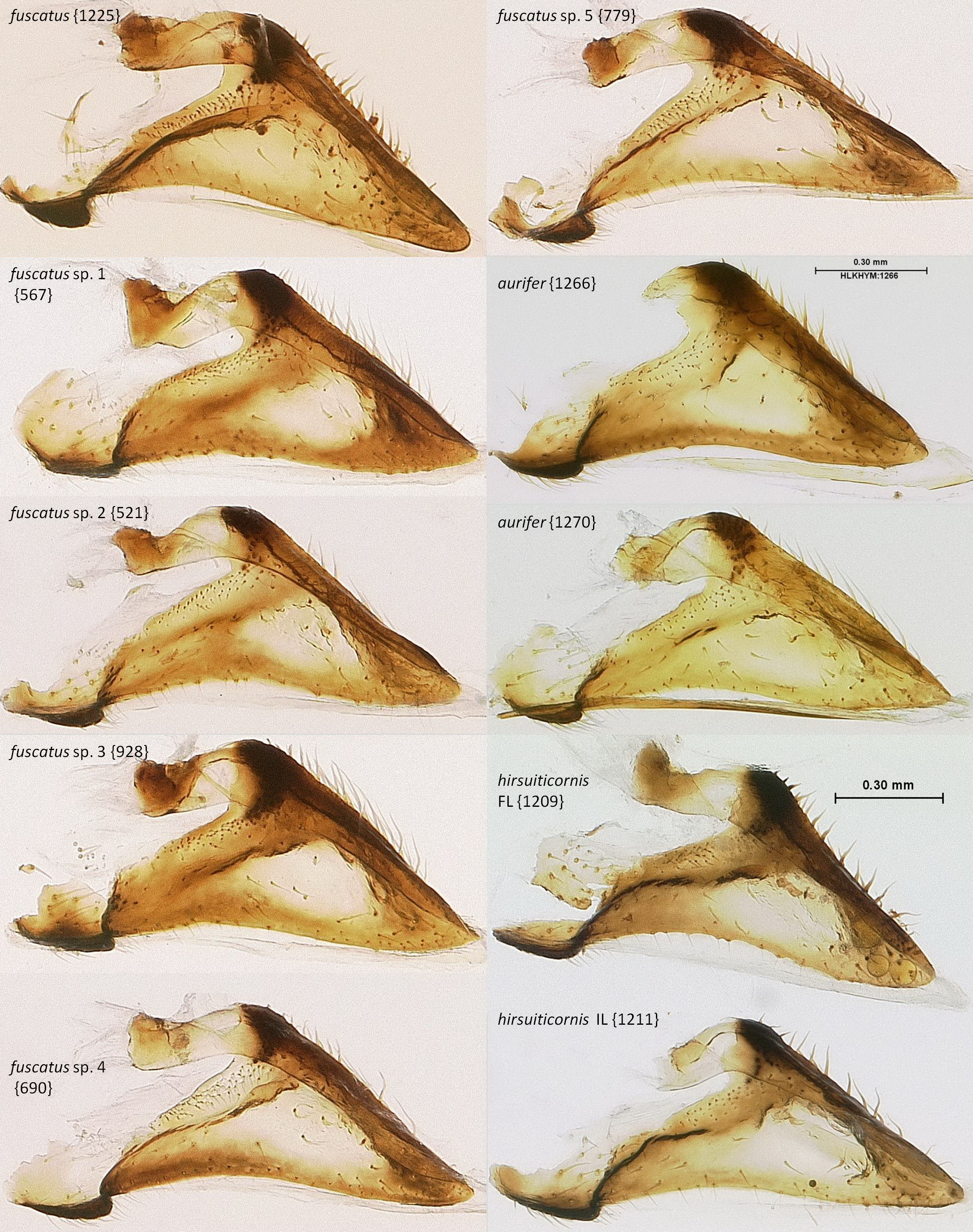

Figure C34:  Cuspis (outer side, lateral aspect) of Florida Polistes species (part 3 of 4).





FigureC35_resize

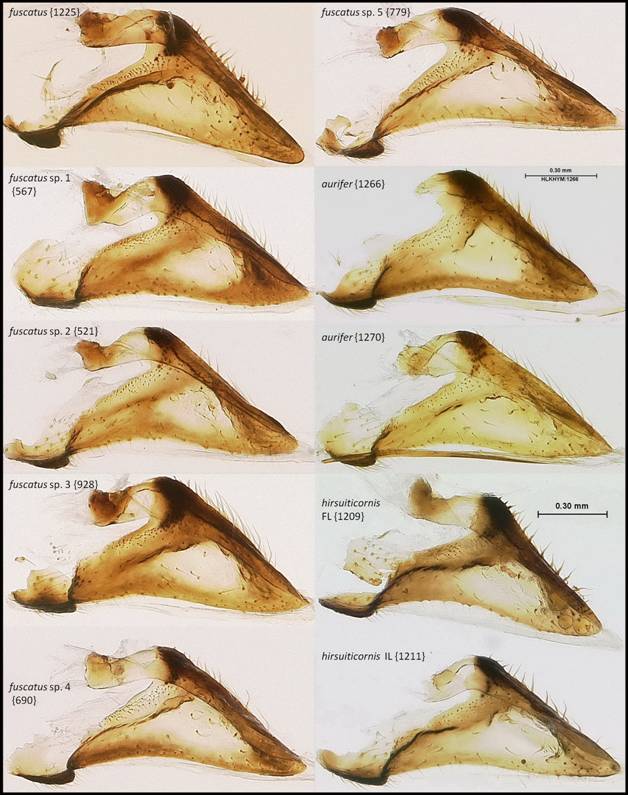

Figure C35:  Cuspis (outer side, lateral aspect) of Florida Polistes species (part 4 of 4).





FigureC36_resize

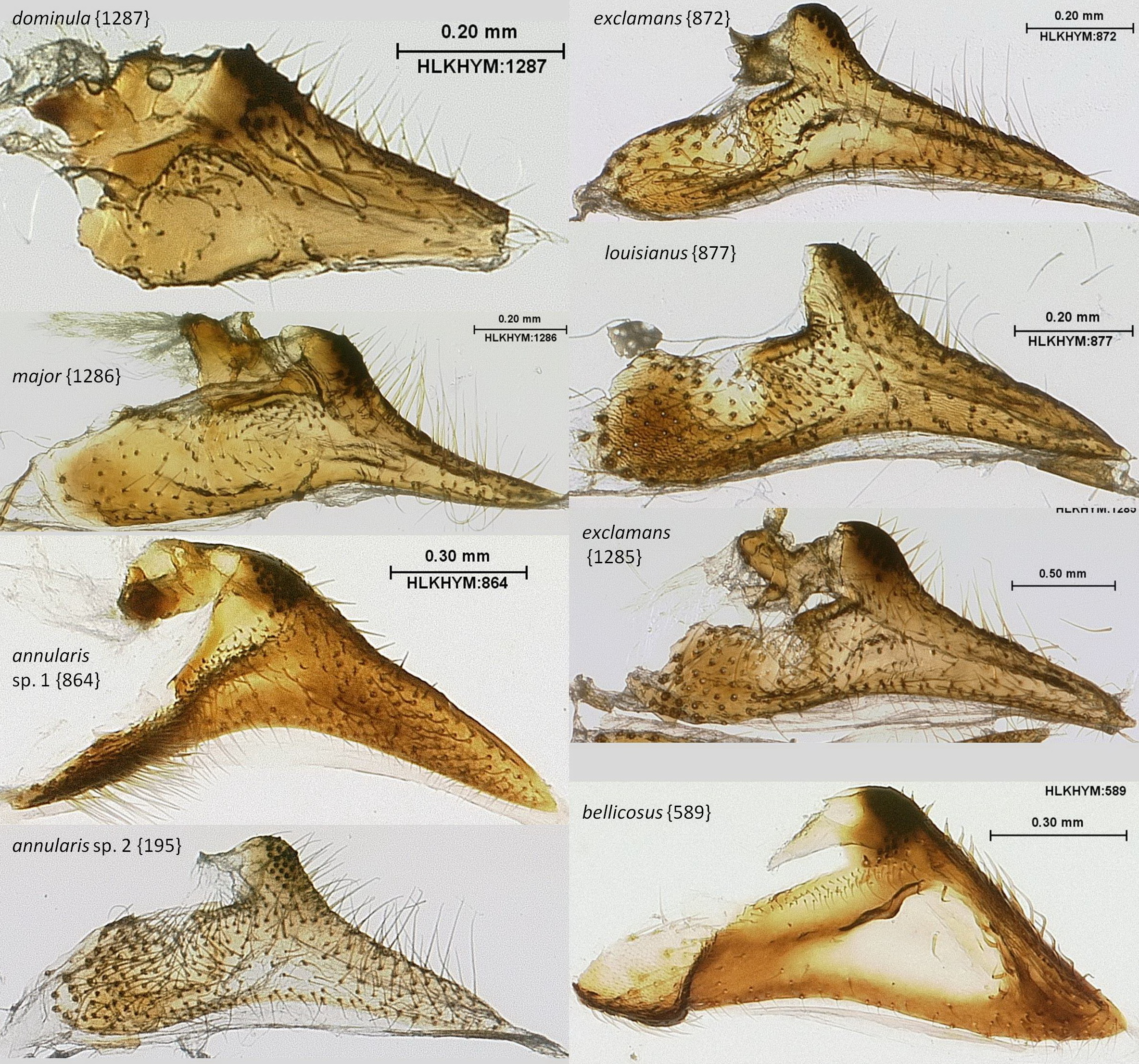

Figure C36:  Cuspis (inner side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC37_resize

Figure C37:  Cuspis (inner side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC38_resize

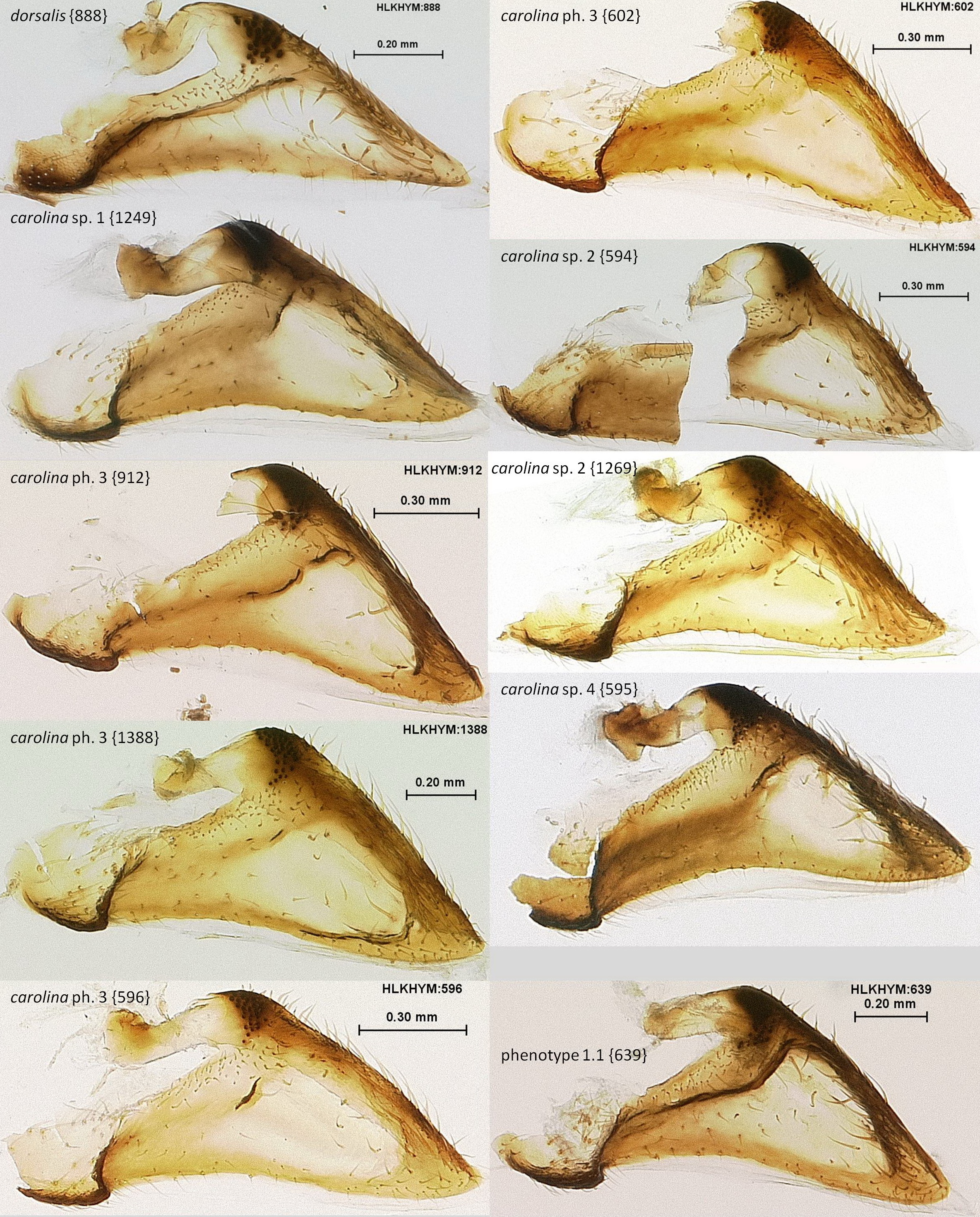

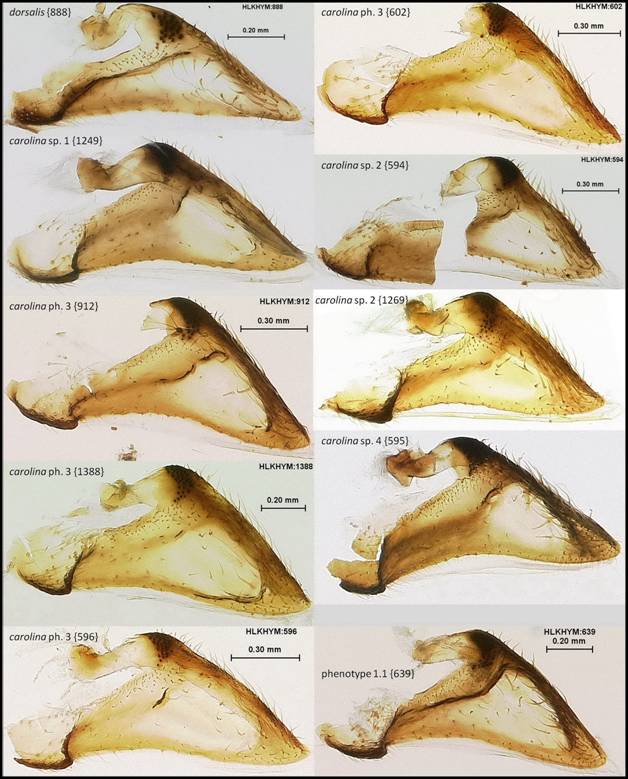

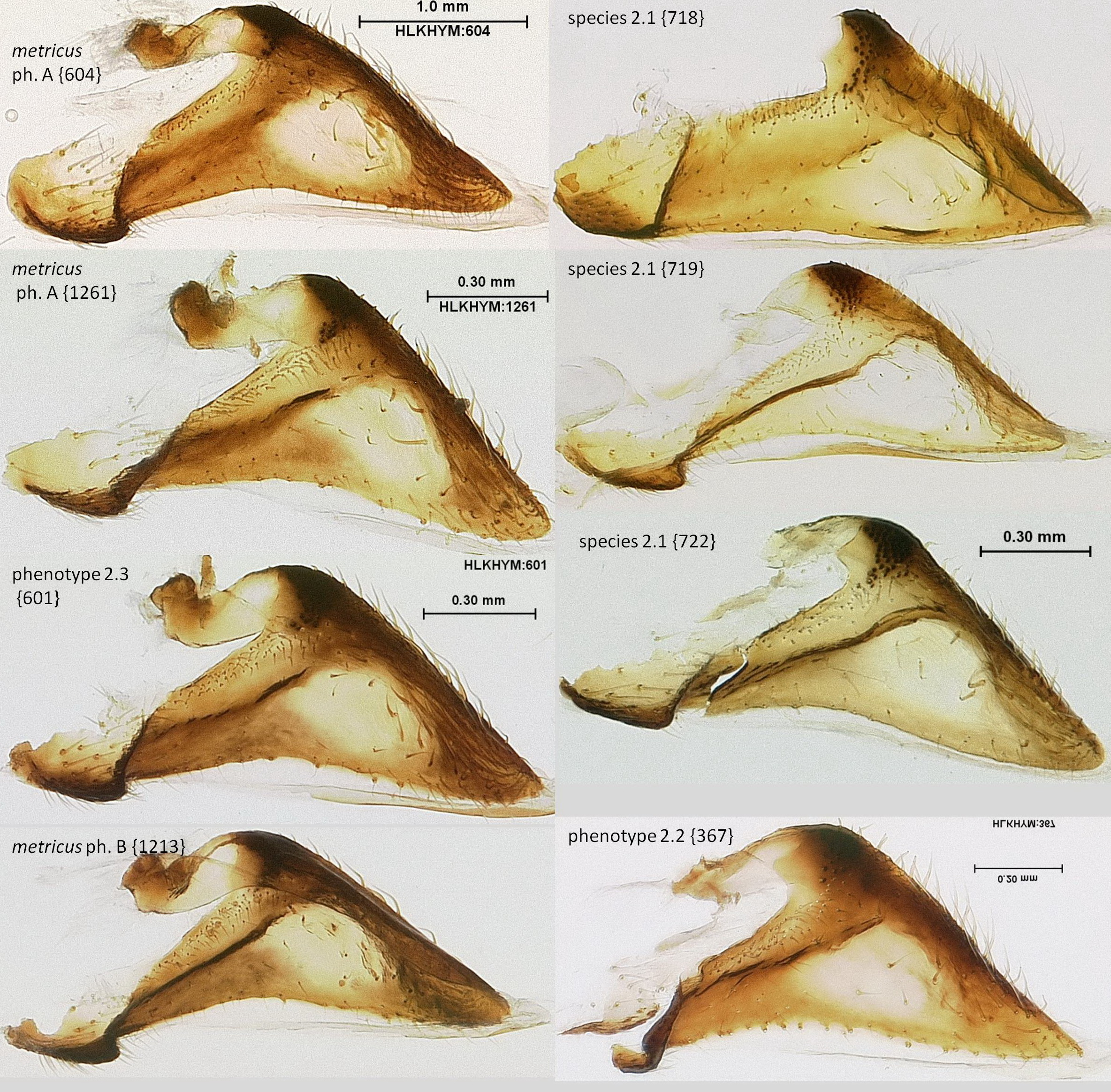

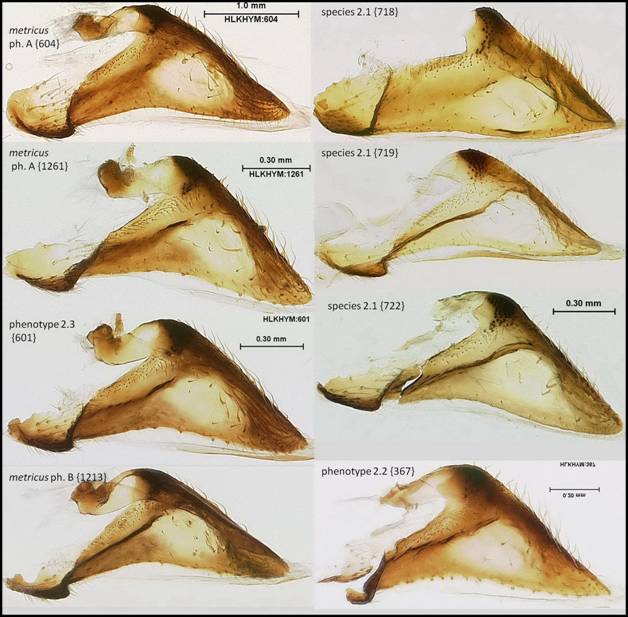

Figure C38:  Cuspis (inner side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC39_resize

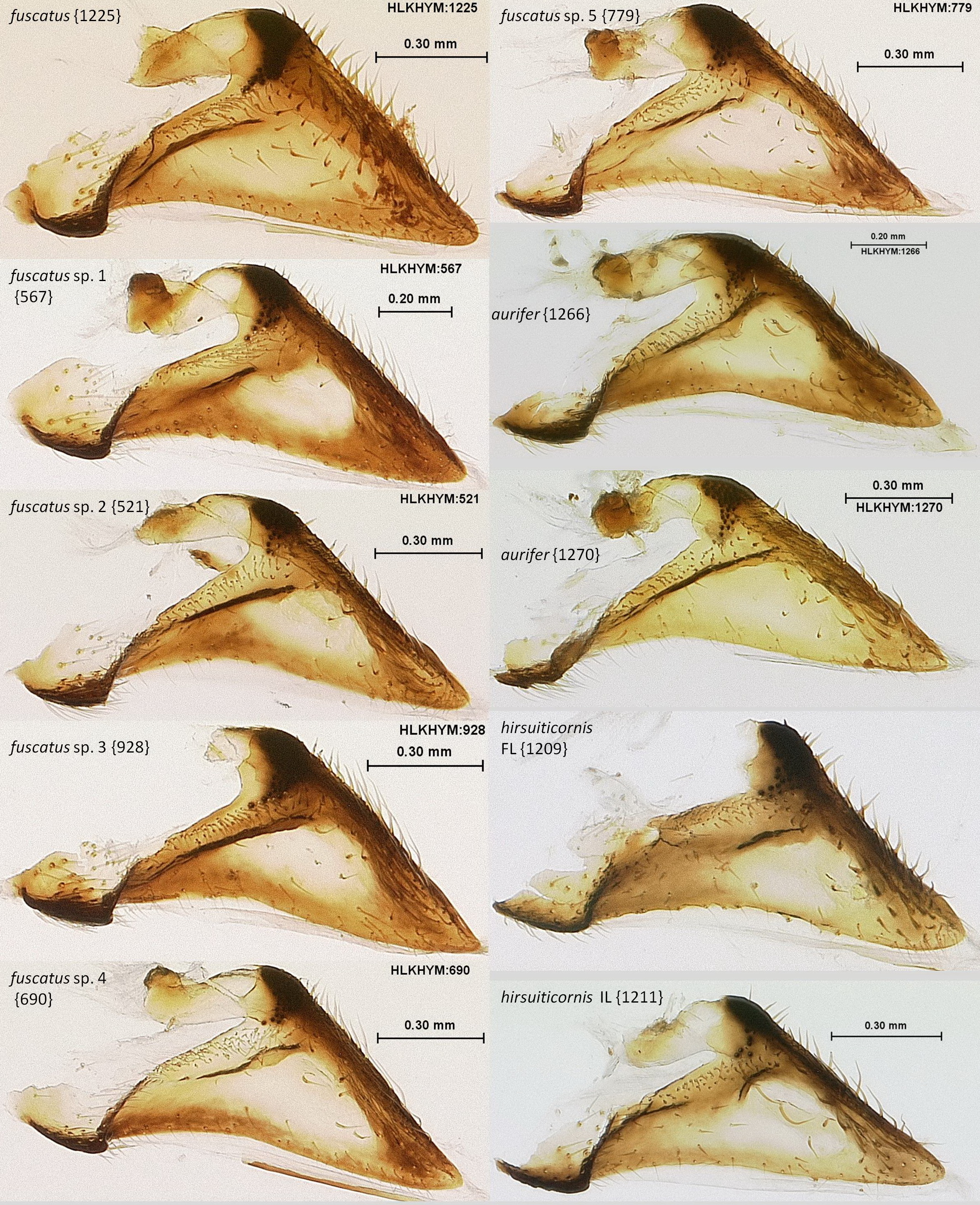

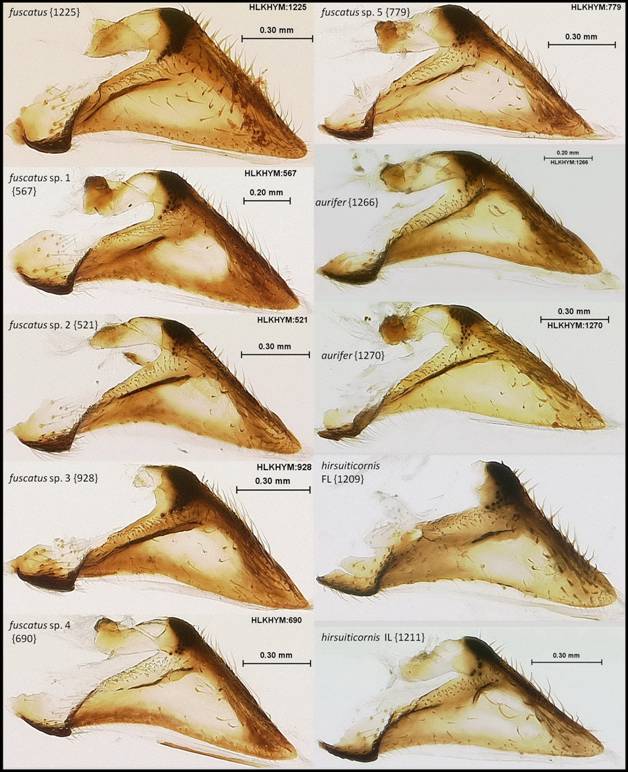

Figure C39:  Cuspis (inner side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC40_resize

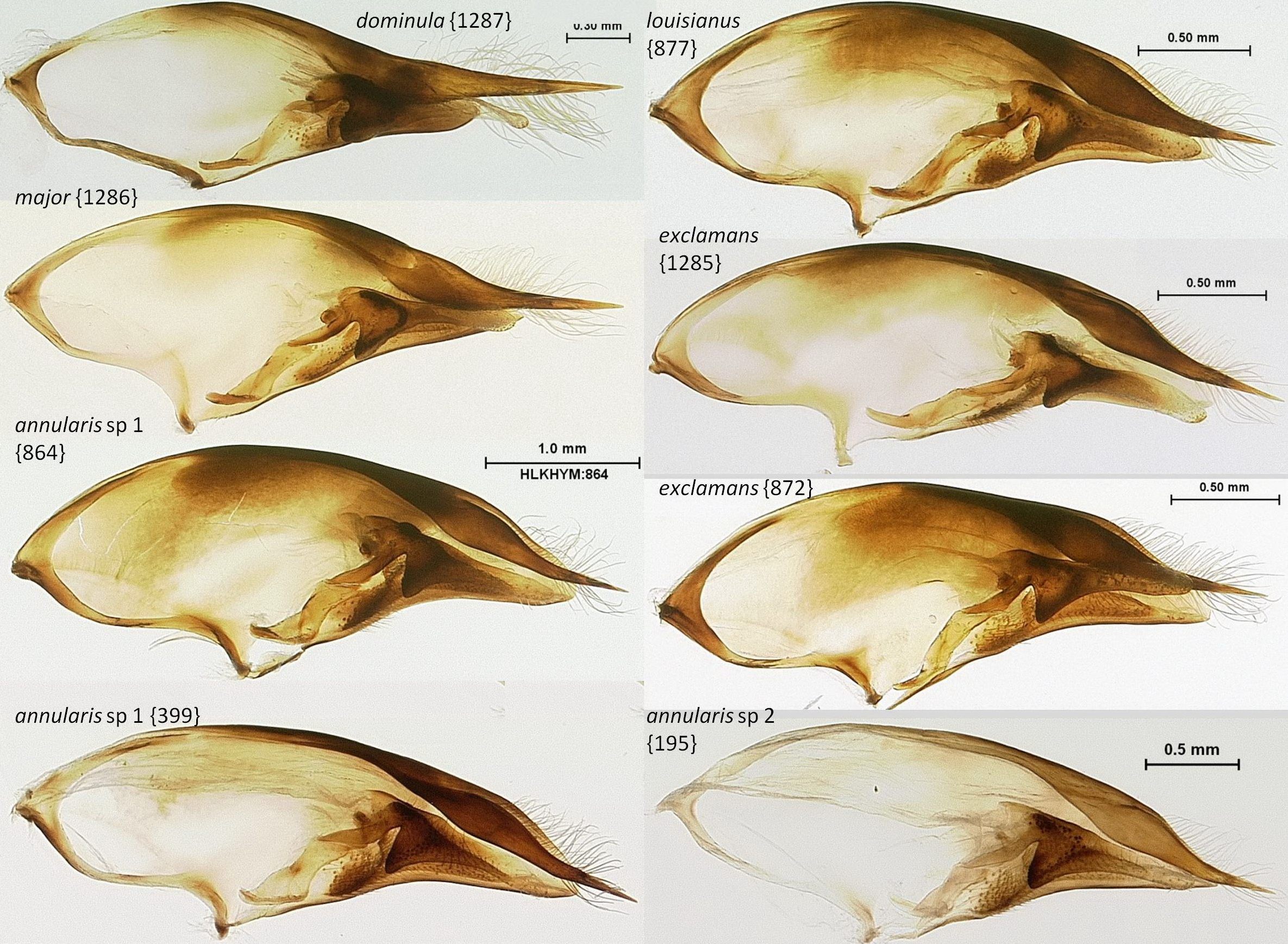

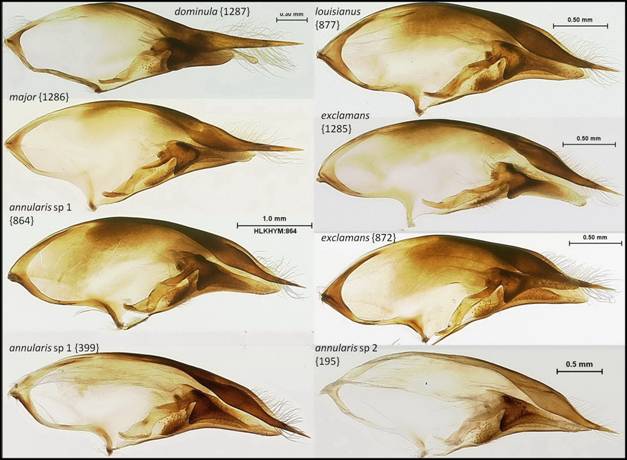

Figure C40:  Paramere with volsella (inner side, lateral aspect) of Florida Polistes species (part 1 of 4).





FigureC41_resize

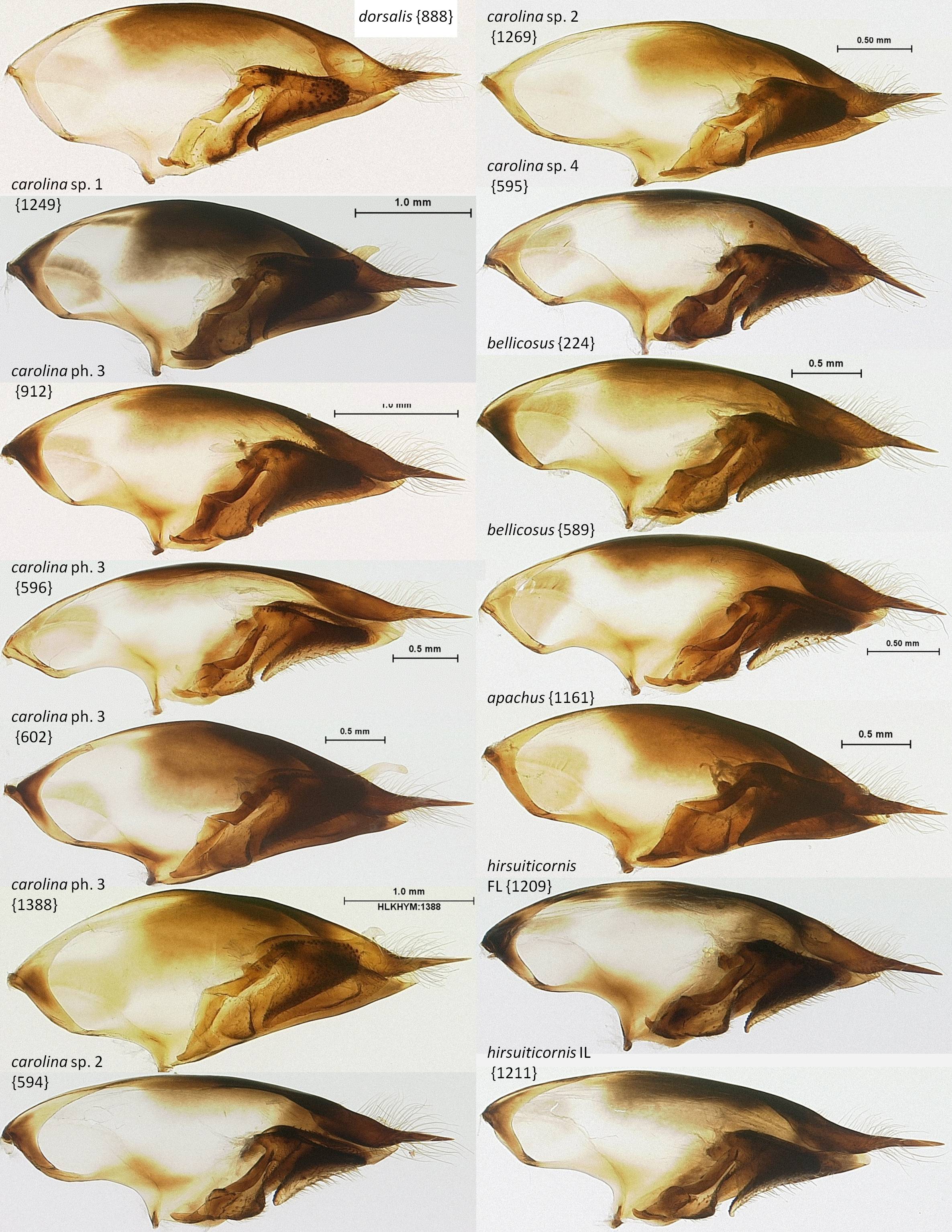

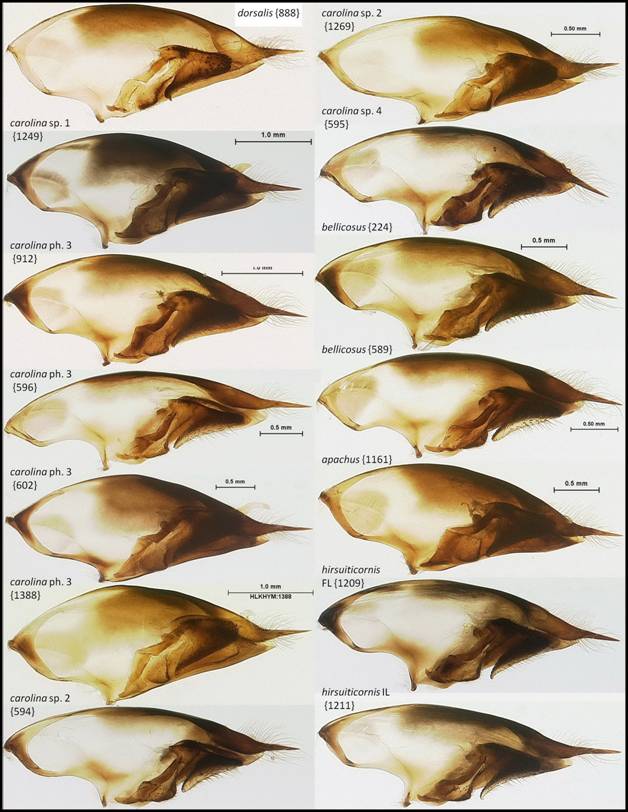

Figure C41:  Paramere with volsella (inner side, lateral aspect) of Florida Polistes species (part 2 of 4).





FigureC42_resize

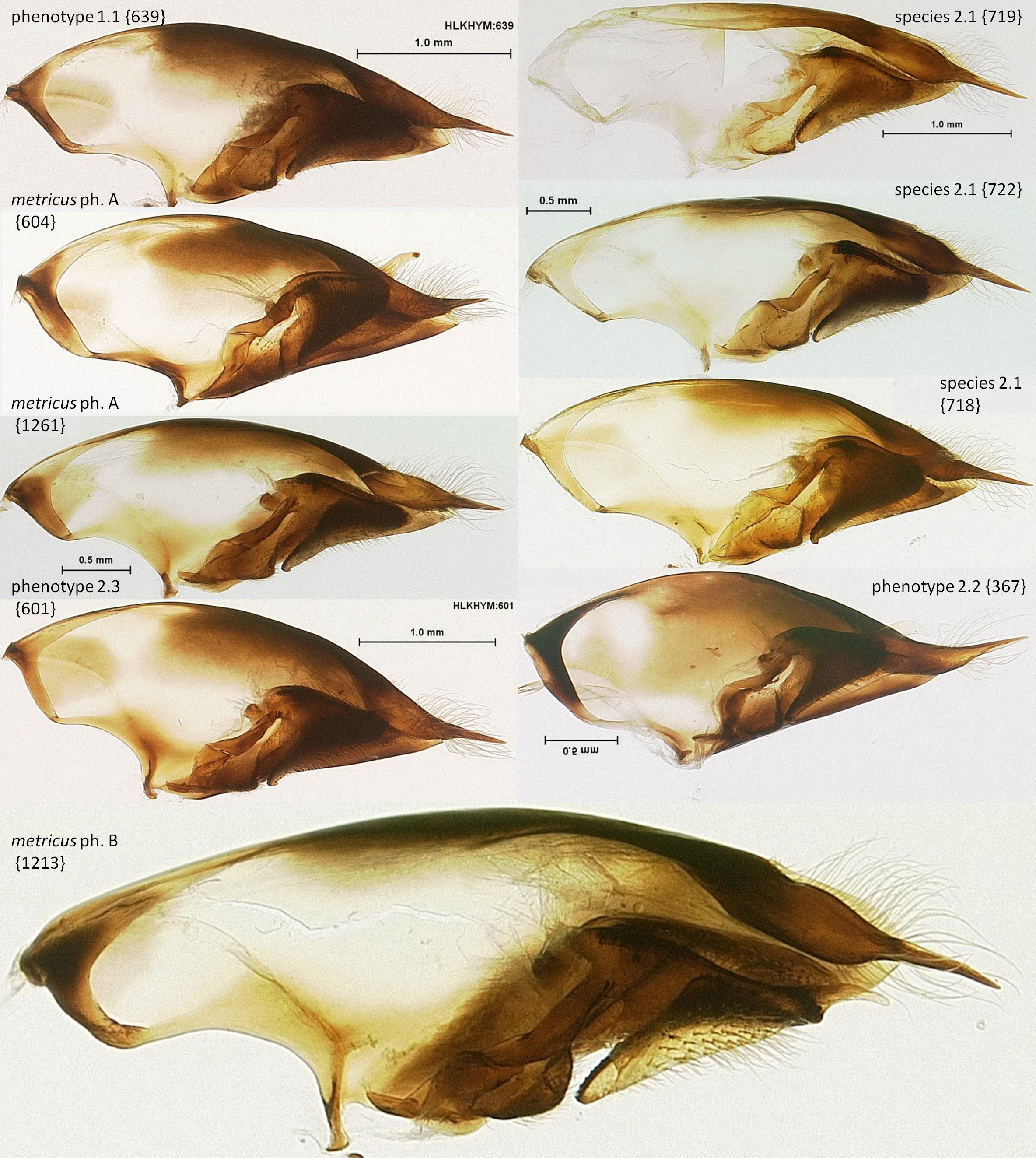

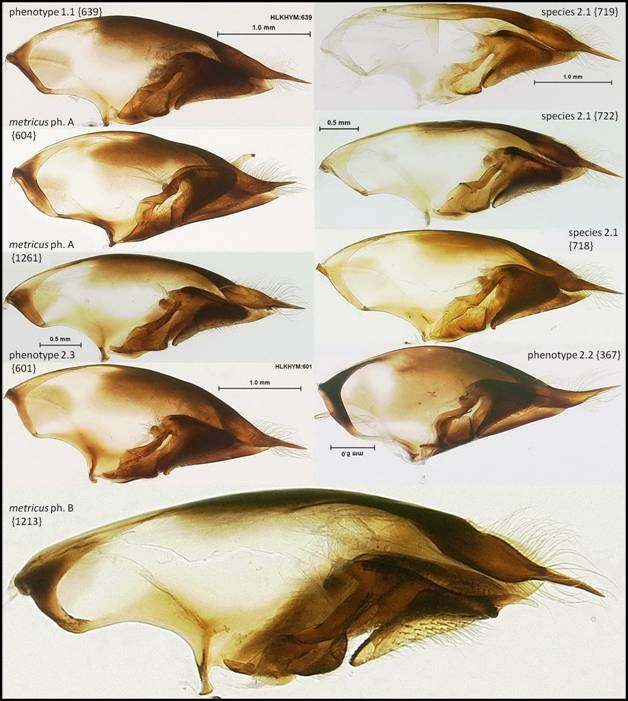

Figure C42:  Paramere with volsella (inner side, lateral aspect) of Florida Polistes species (part 3 of 4).





FigureC43_resize

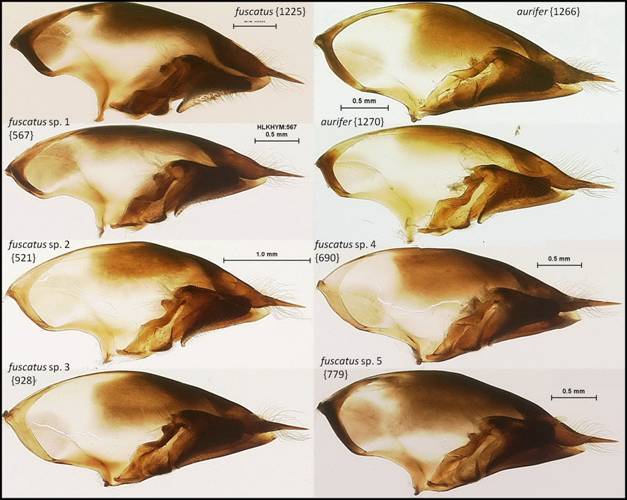

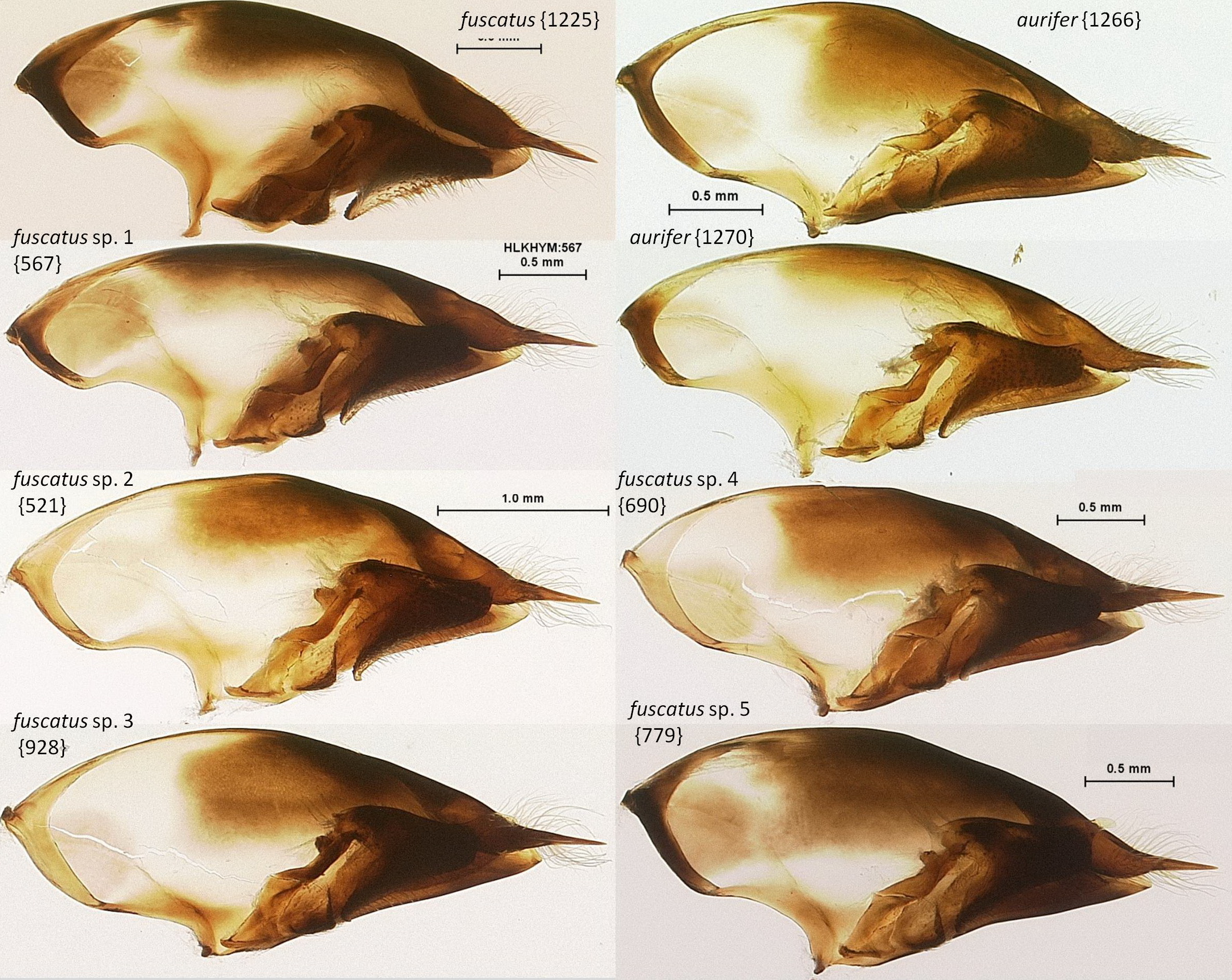

Figure C43:  Paramere with volsella (inner side, lateral aspect) of Florida Polistes species (part 4 of 4).



FigureC44_resize

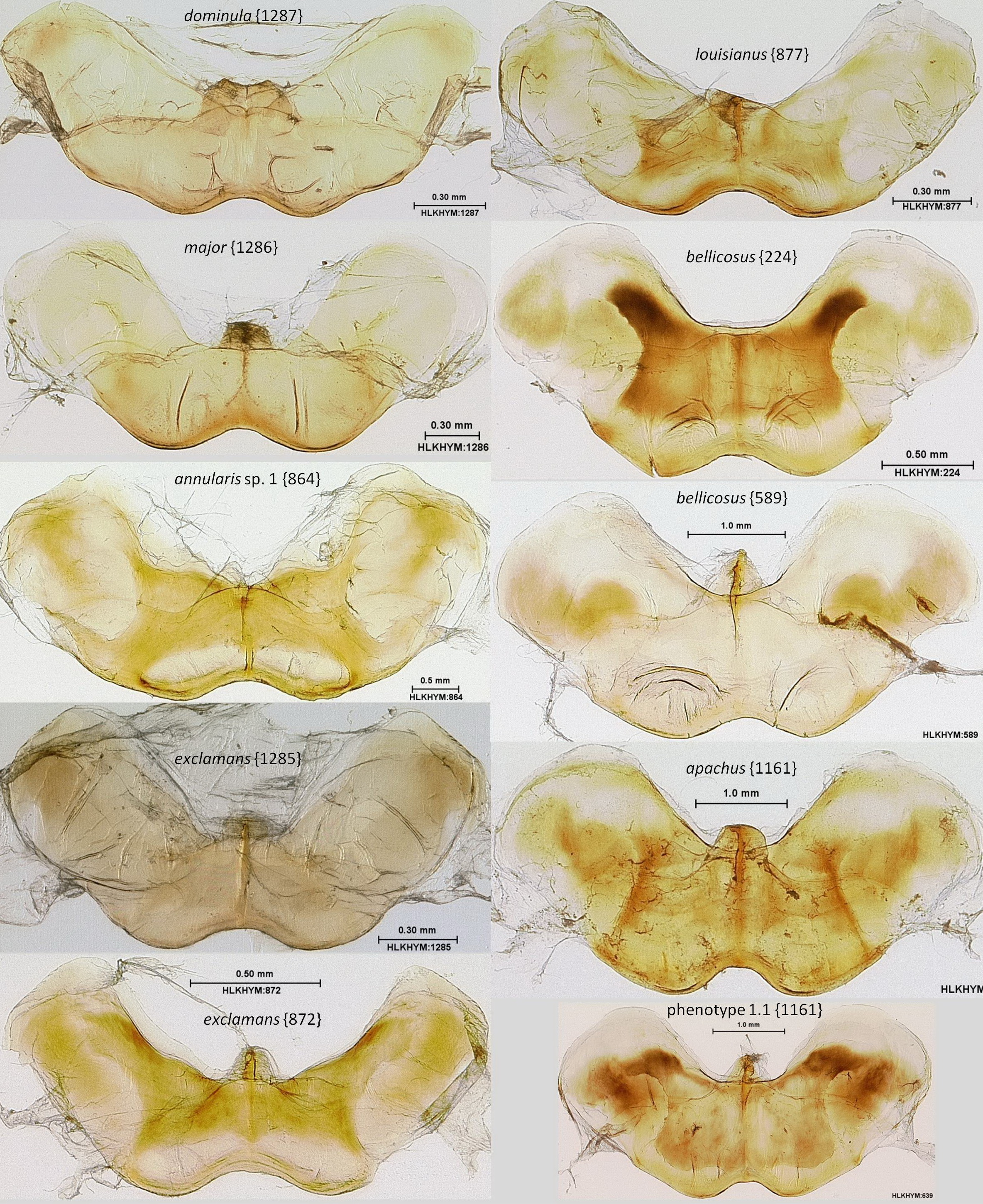

Figure C44:  Basal ring (=gonocardo) (flattened on slide) of Florida Polistes species (part 1 of 4).

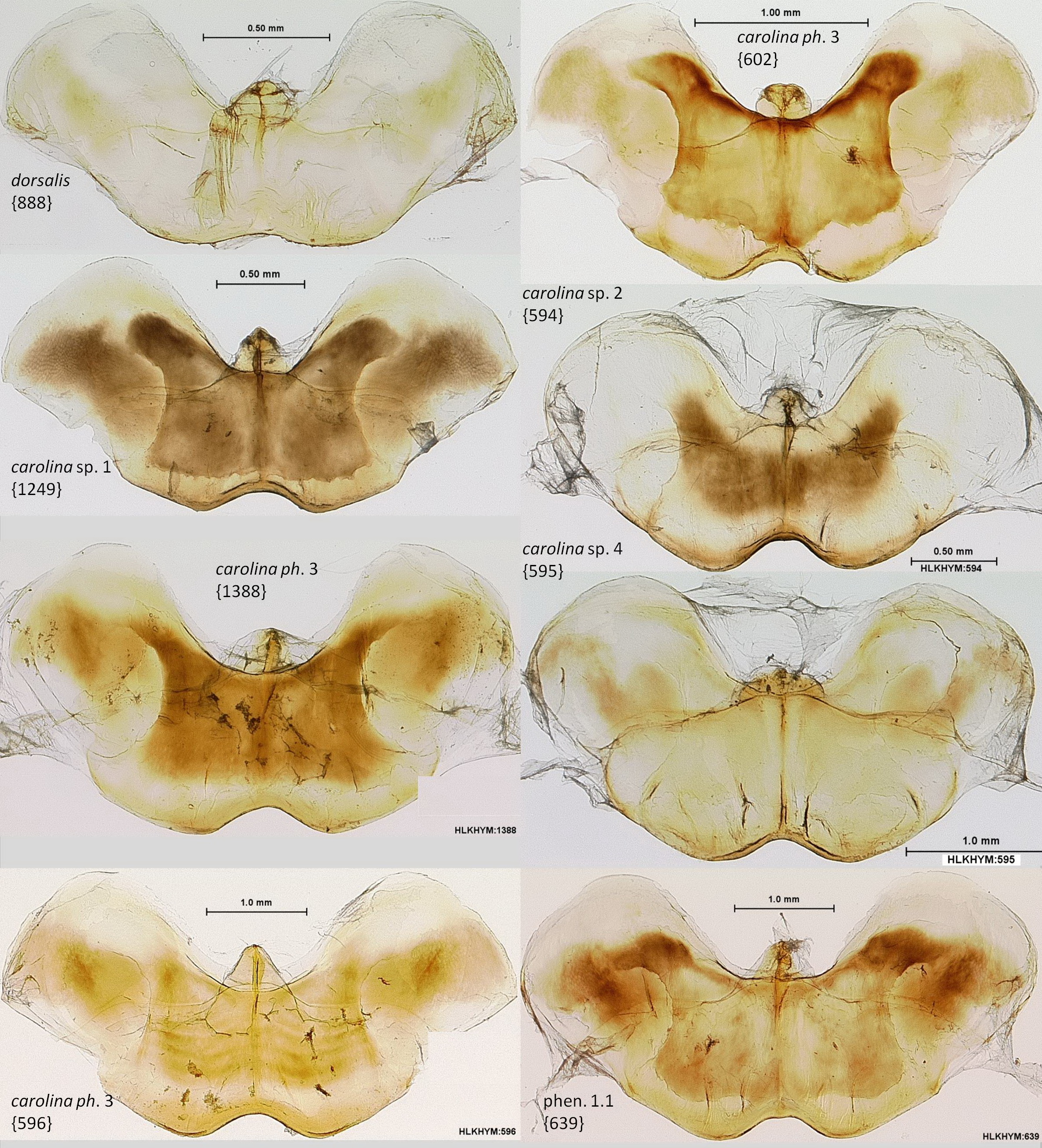

FigureC45_resize

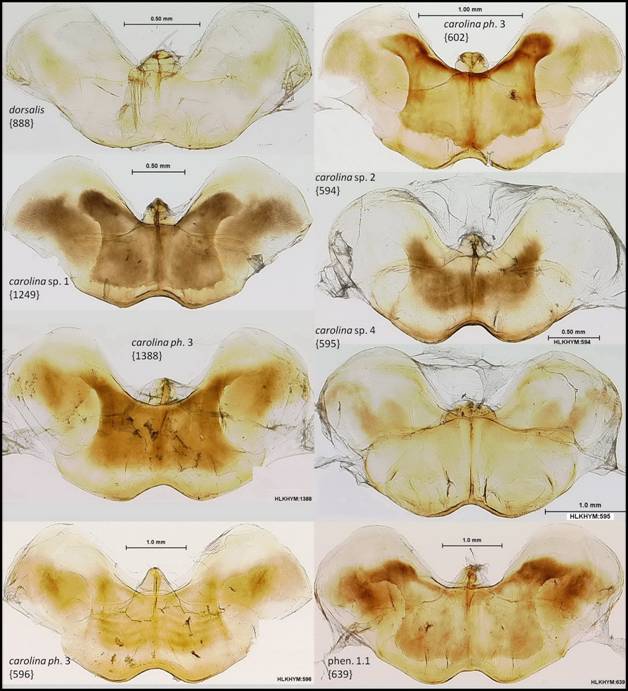

Figure C45:  Basal ring (=gonocardo) (flattened on slide) of Florida Polistes species (part 2 of 4).





FigureC46_resize

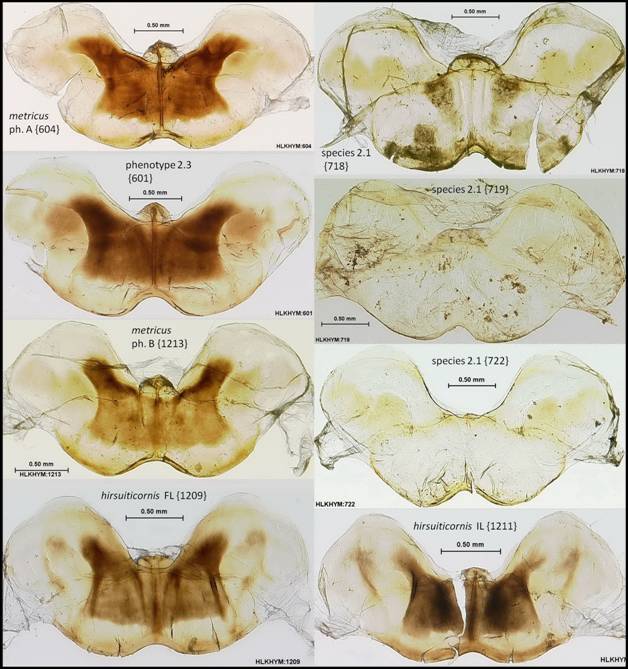

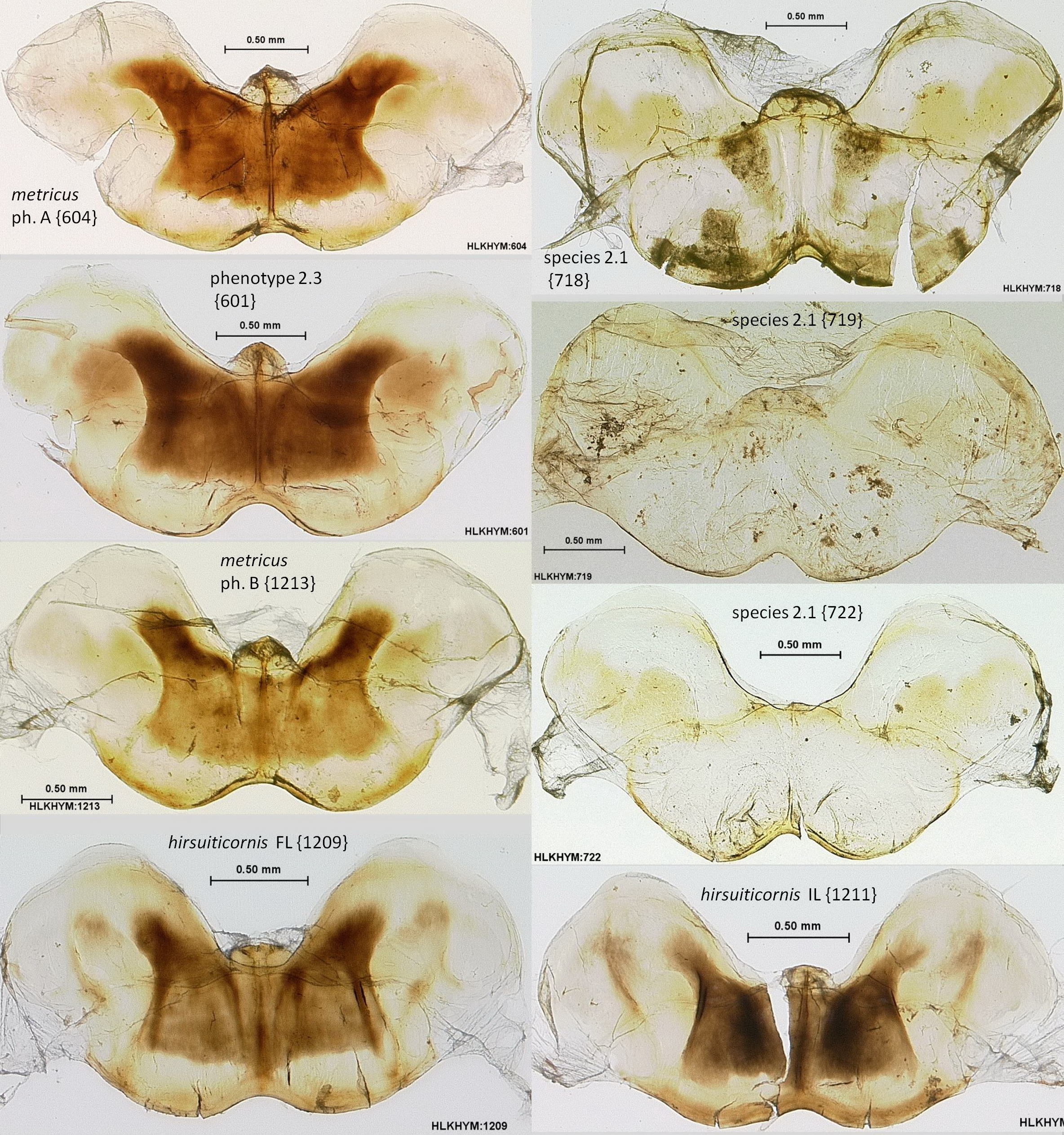

Figure C46:  Basal ring (=gonocardo) (flattened on slide) of Florida Polistes species (part 3 of 4).





FigureC47_resize

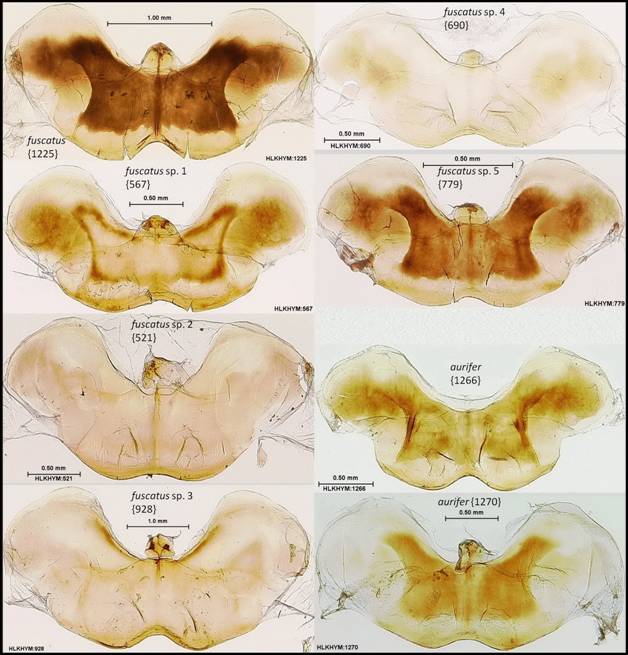

Figure C47:  Basal ring (=gonocardo) (flattened on slide) of Florida Polistes species (part 4 of 4).





FigureC48_resize

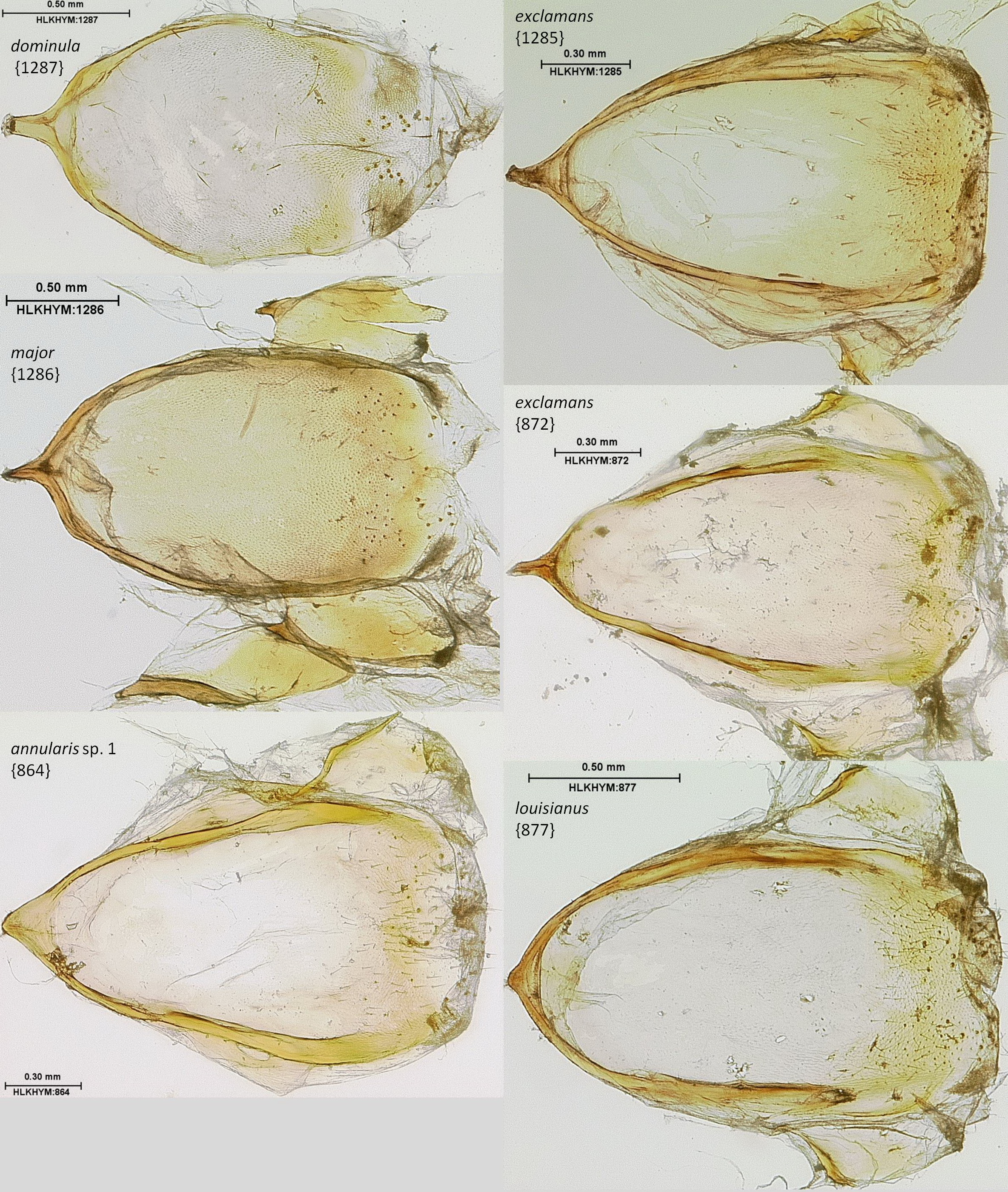

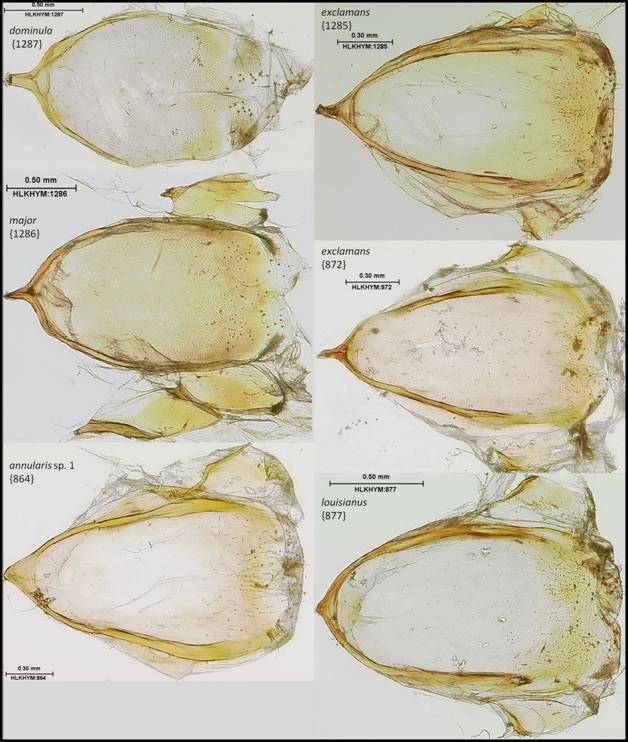

Figure C48:  Segment X (flattened on slide) of Florida Polistes species (part 1 of 5).





FigureC49_resize

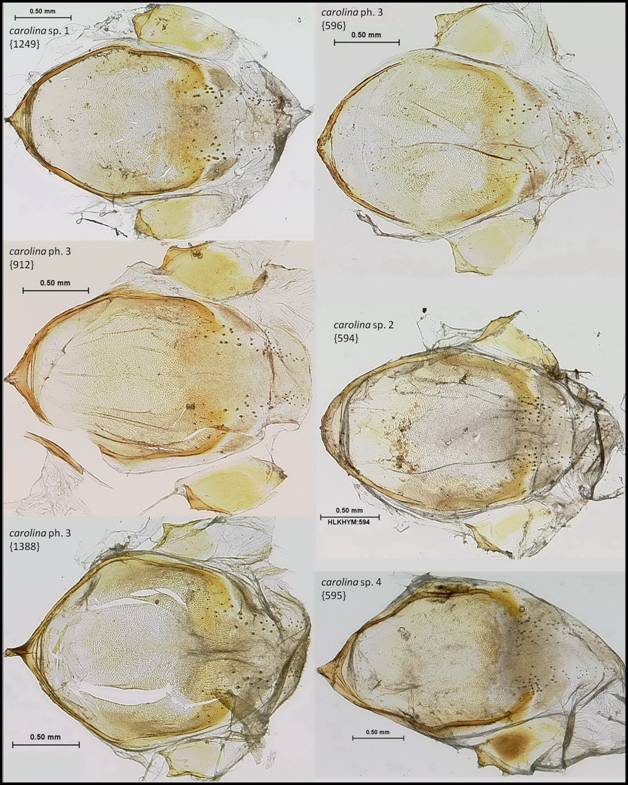

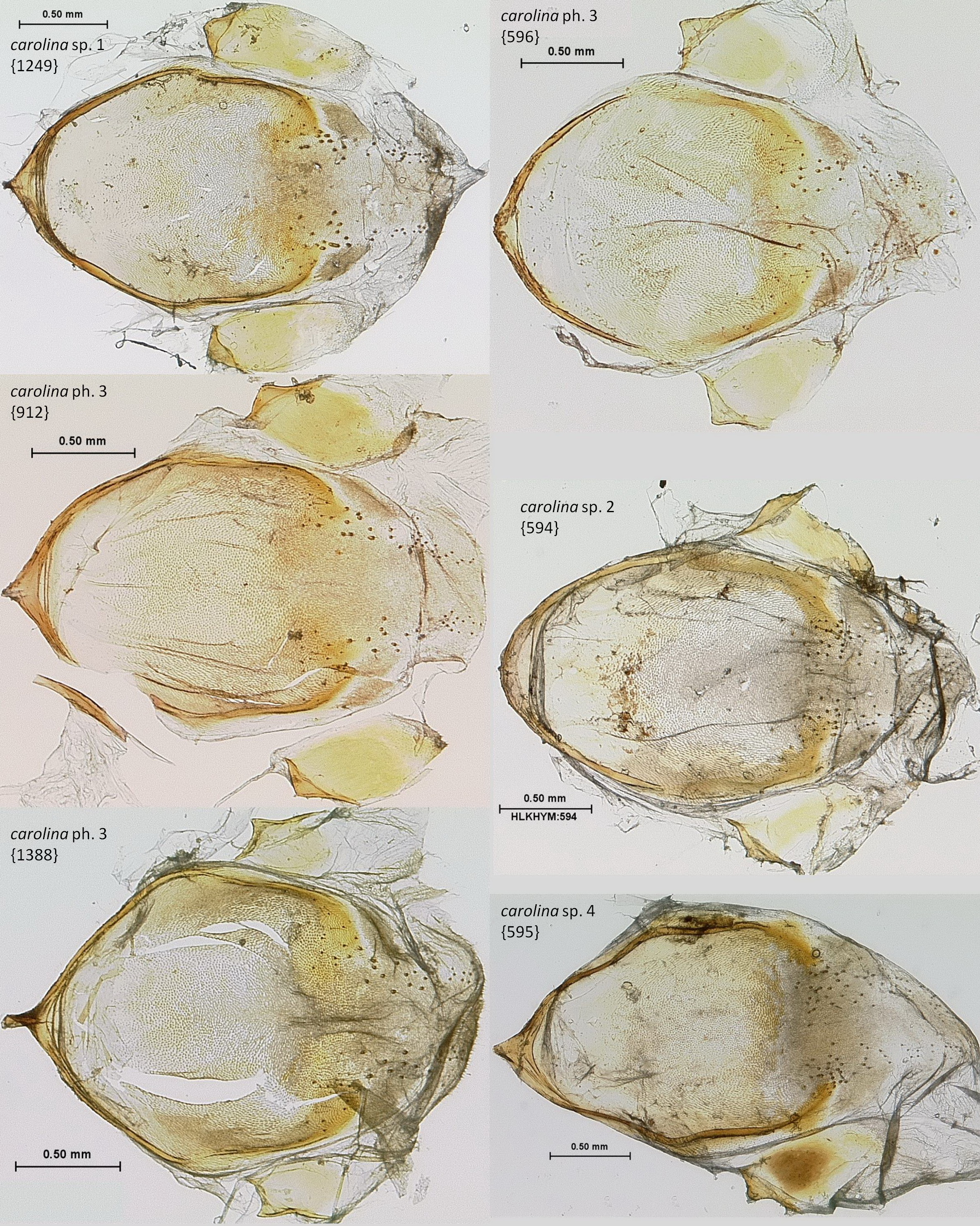

Figure C49:  Segment X (flattened on slide) of Florida Polistes species (part 2 of 5).





FigureC50_resize

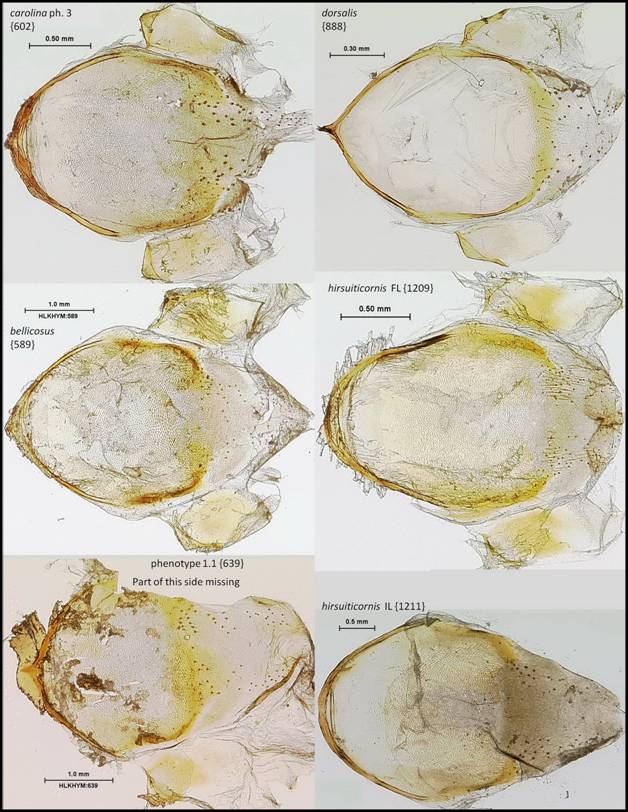

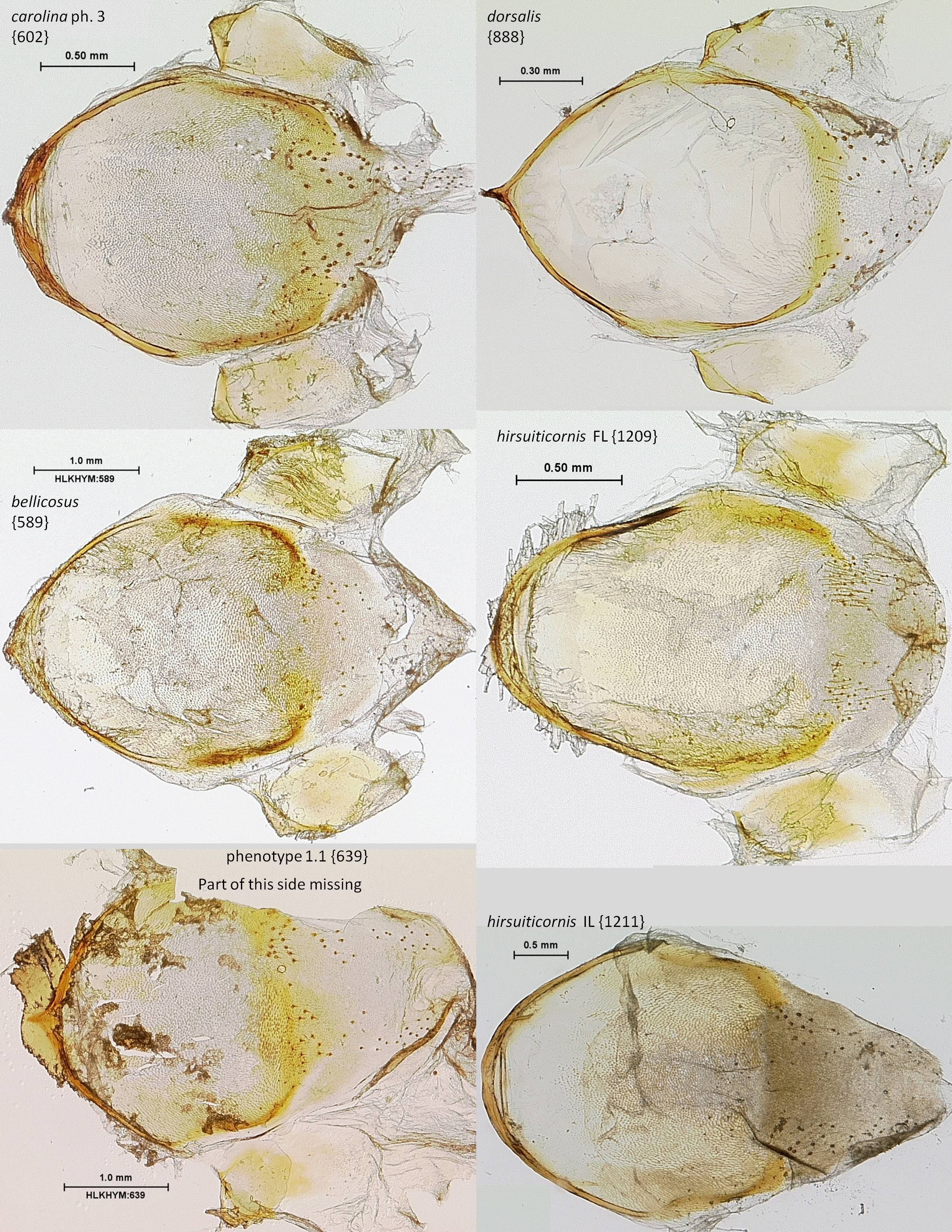

Figure C50:  Segment X (flattened on slide) of Florida Polistes species (part 3 of 5).





FigureC51_resize

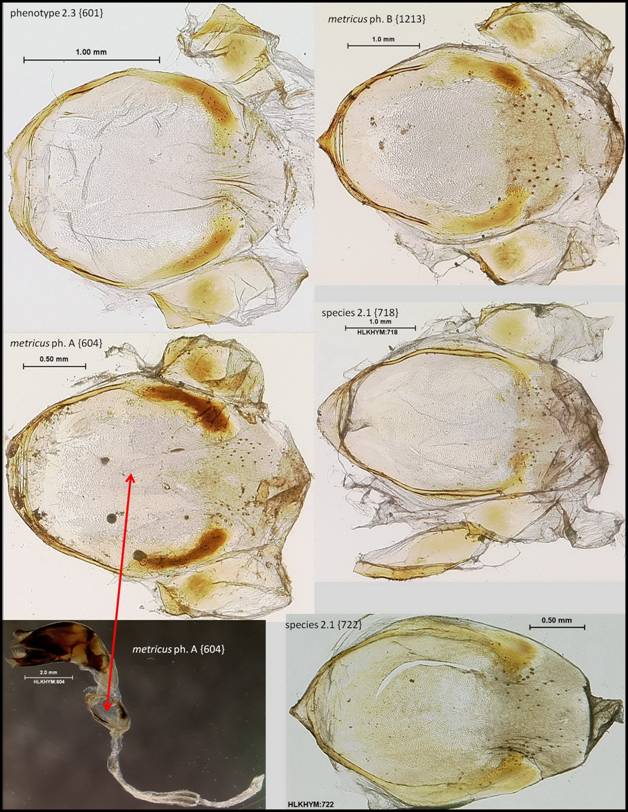

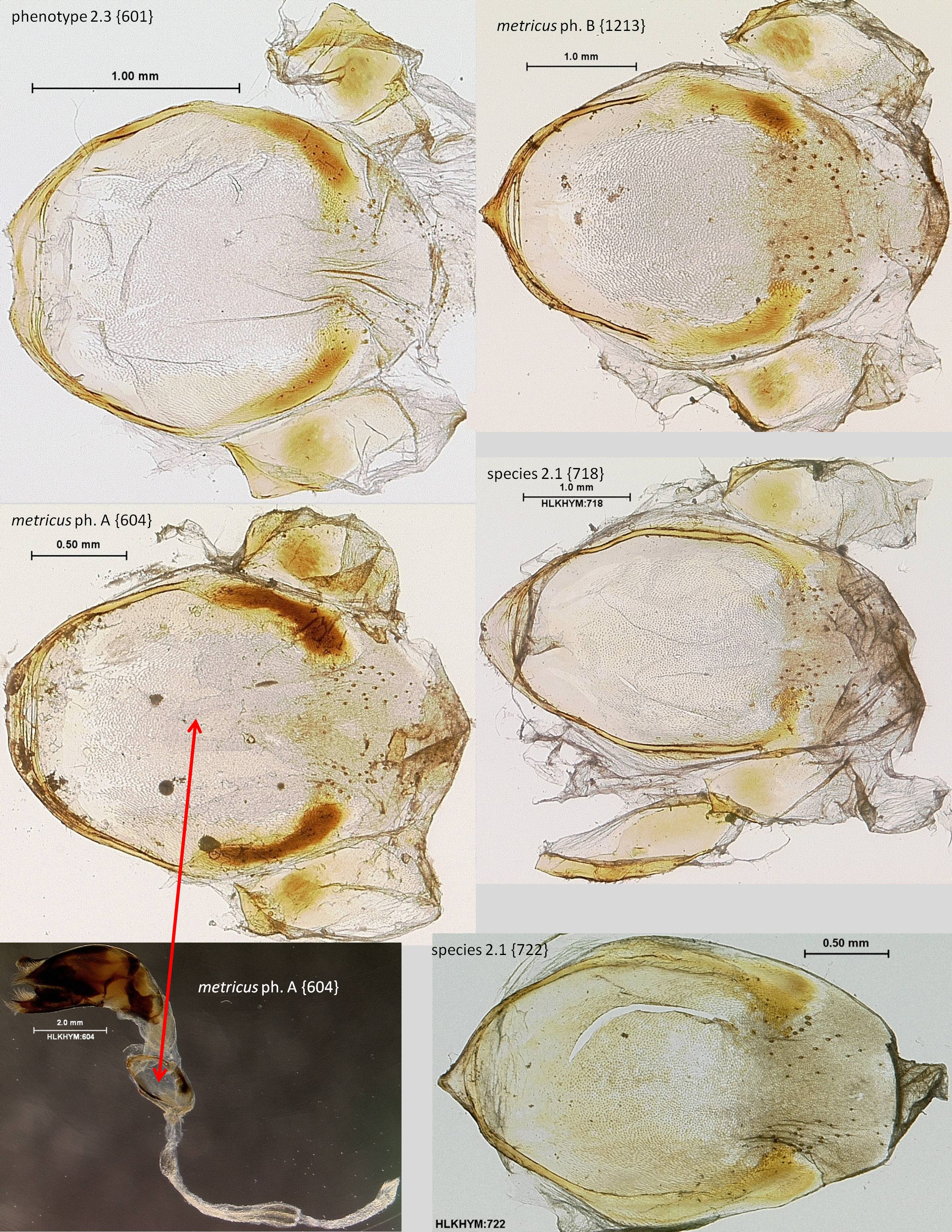

Figure C51:  Segment X (flattened on slide) of Florida Polistes species (part 4 of 5).





FigureC52_resize

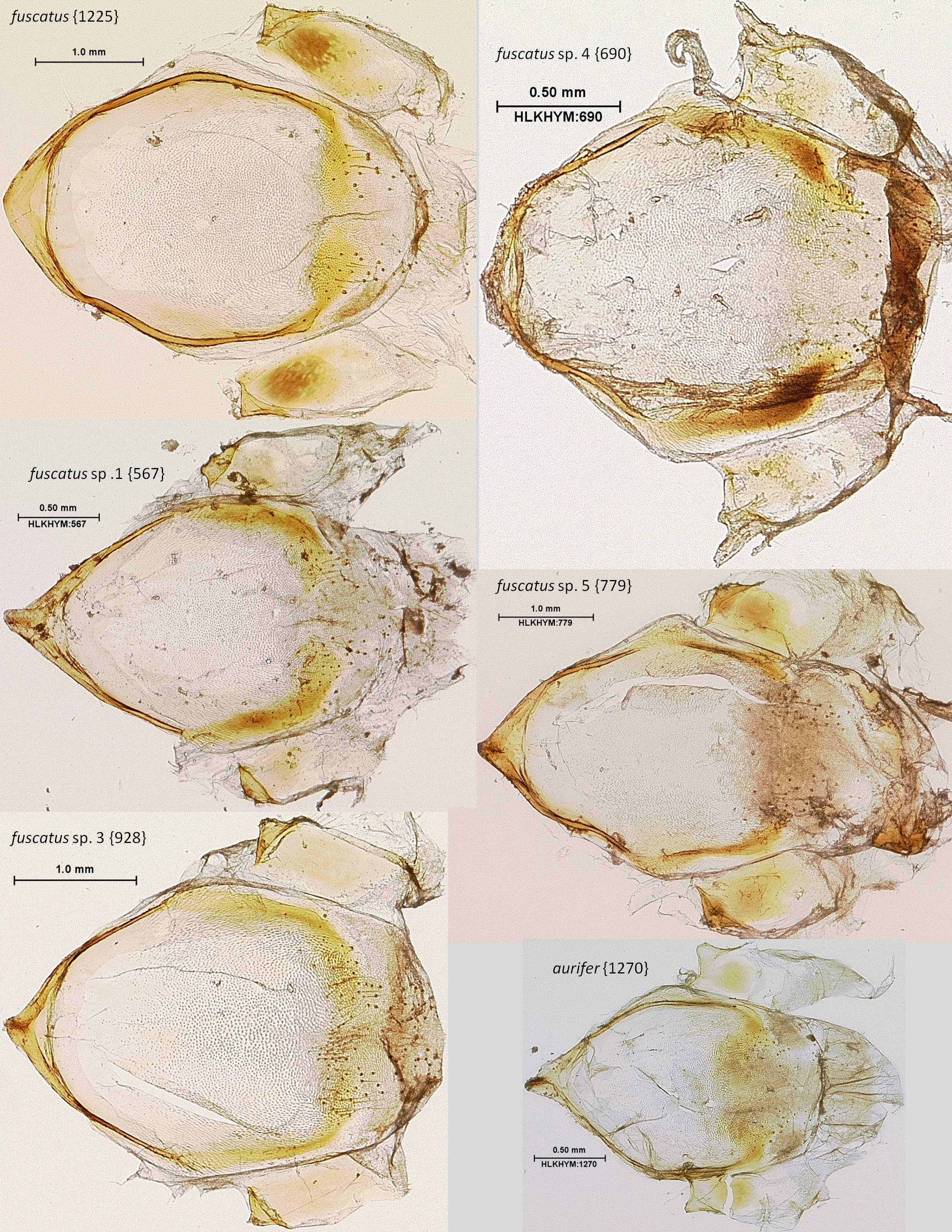

Figure C52:  Segment X (flattened on slide) of Florida Polistes species (part 5 of 5).





FigureC53_resize

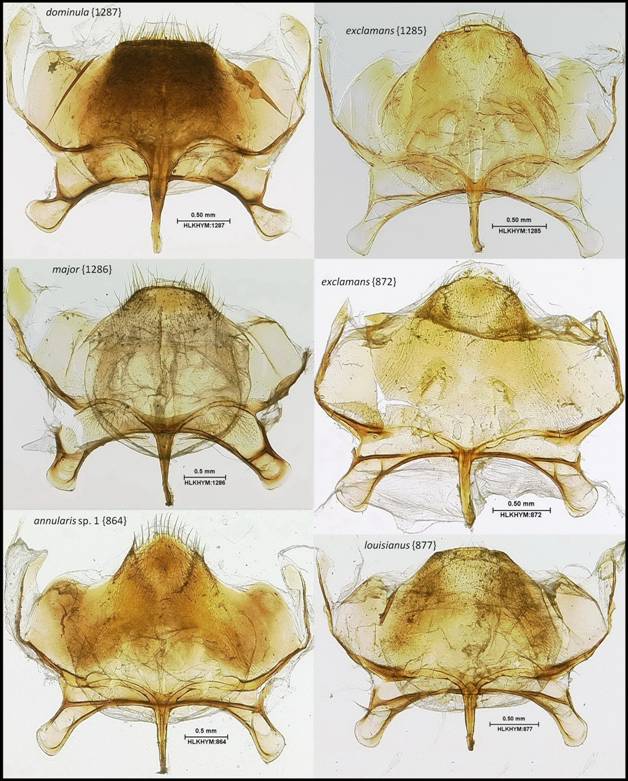

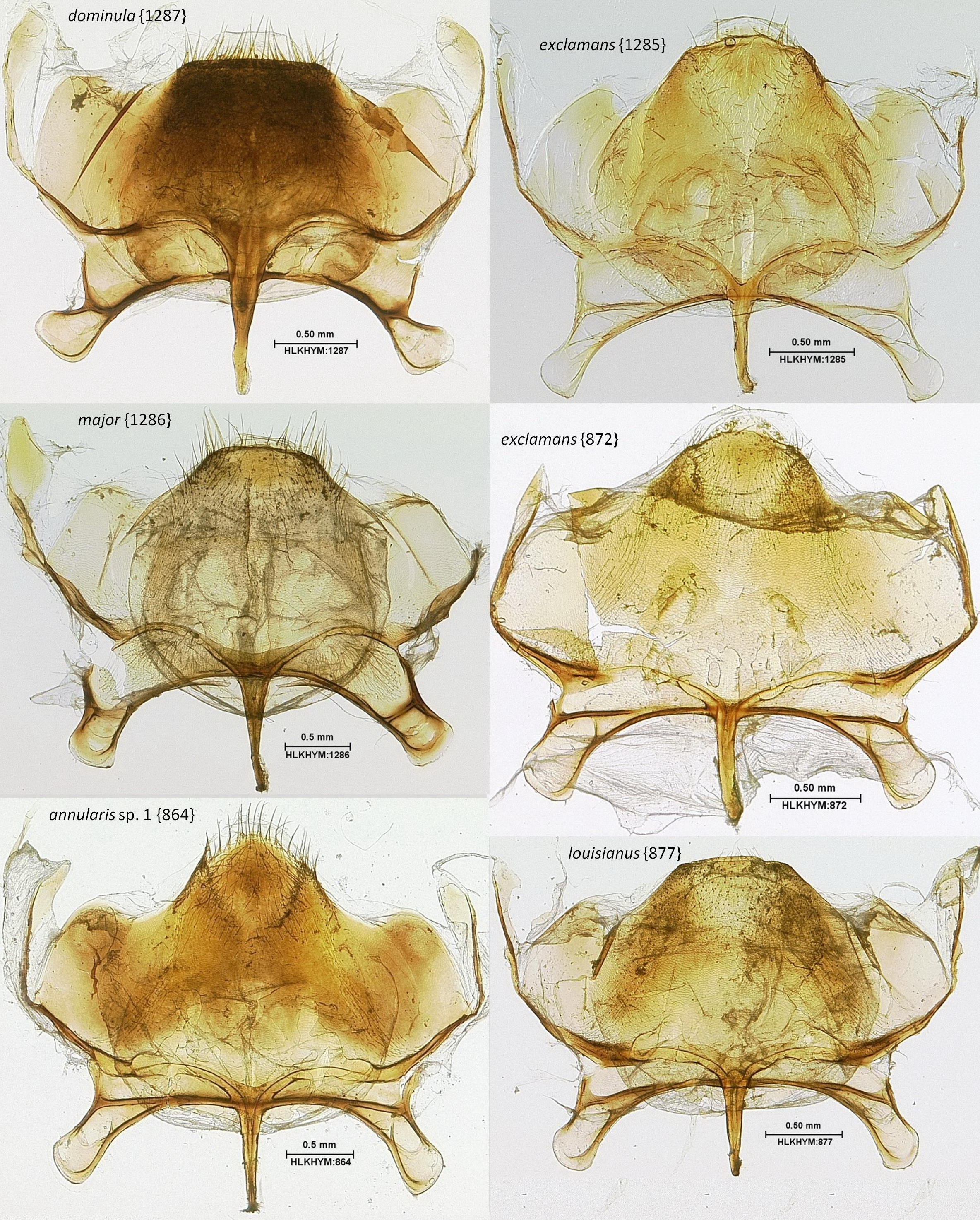

Figure C53:  Sternite VIII+IX (KOH treated, flattened on slide, with lateral tergites IX connected on at least one side (except in 872)) of Florida Polistes species (part 1 of 2).





FigureC54_resize

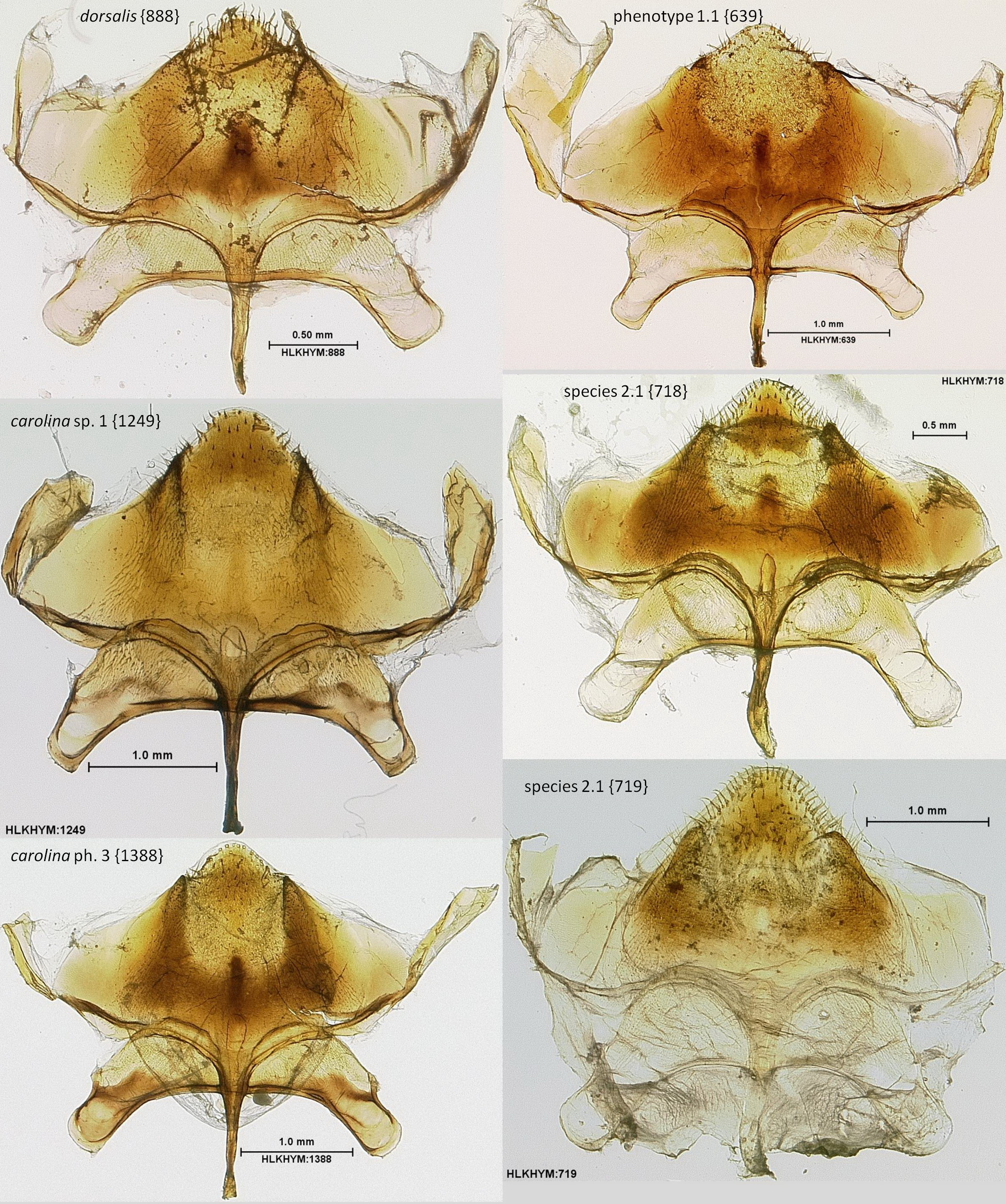

Figure C54:  Sternite VIII+IX (KOH treated, flattened on slide, with lateral tergites IX connected on at least one side) of Florida Polistes species (part 2 of 2).





FigureC55_resize

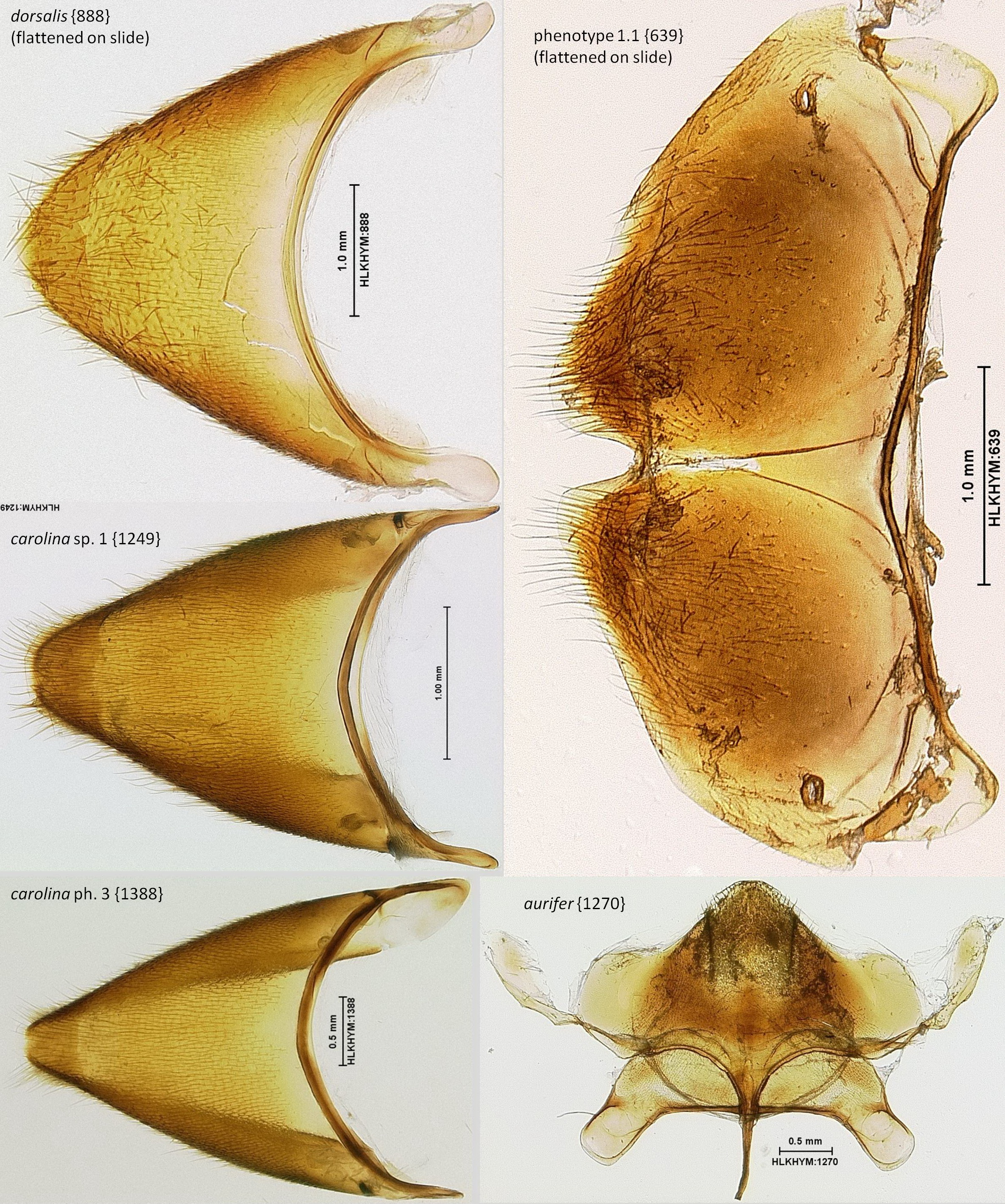

Figure C55:  Tergite VIII (left column, right column top and middle) and sternite VIII+IX (right column, bottom) of Florida Polistes species.  All are KOH treated, carolina complex images are not flattened on slide (column 1, middle and bottom [1249 & 1388]) whereas the other three are [888, 639, & 1270].





FigureC56_resize

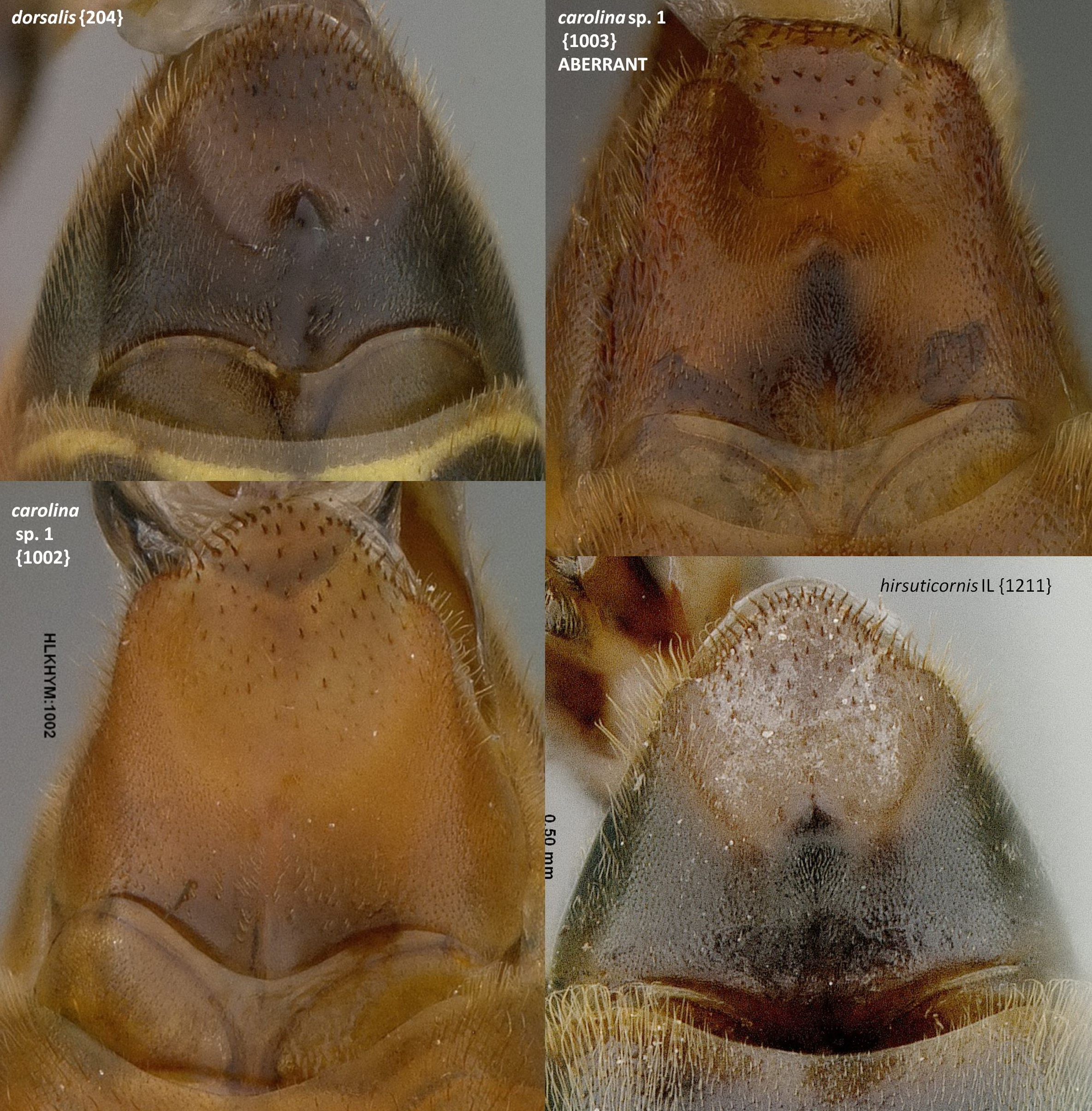

Figure C56: Sternite VIII+IX (partially extracted from metasoma and not KOH treated) of Florida Polistes species (part 1 of 5).

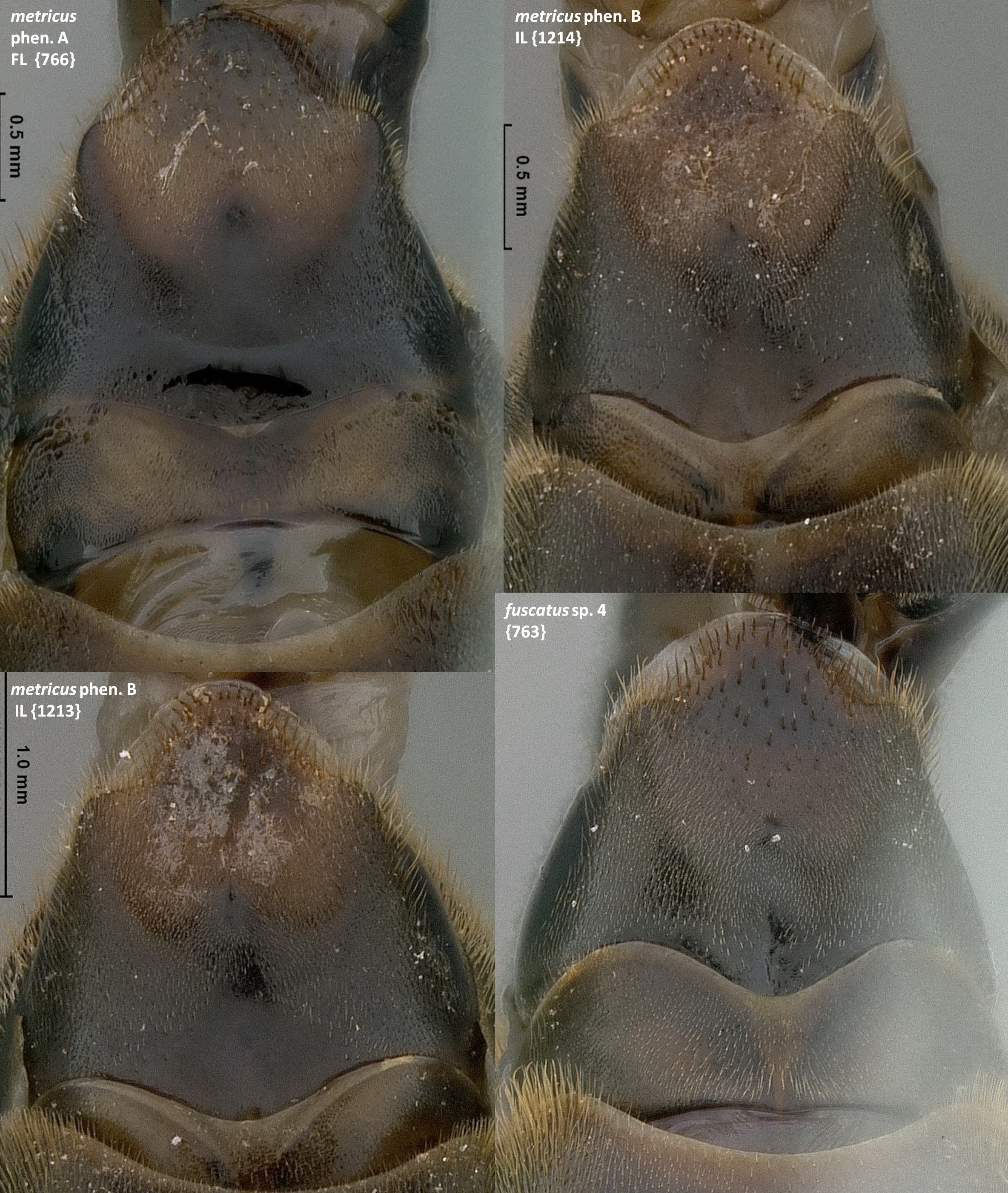

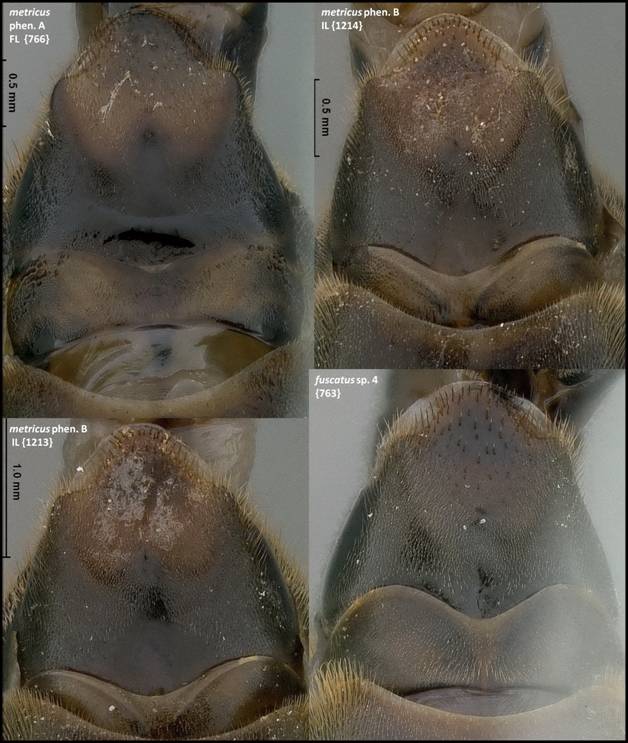

FigureC57_resize

Figure C57: Sternite VIII+IX (partially extracted from metasoma and not KOH treated) of Florida Polistes species (part 2 of 5).





FigureC58_resize

Figure C58: Sternite VIII+IX (partially extracted from metasoma and not KOH treated) of Florida Polistes species (part 3 of 5).





FigureC59_resize

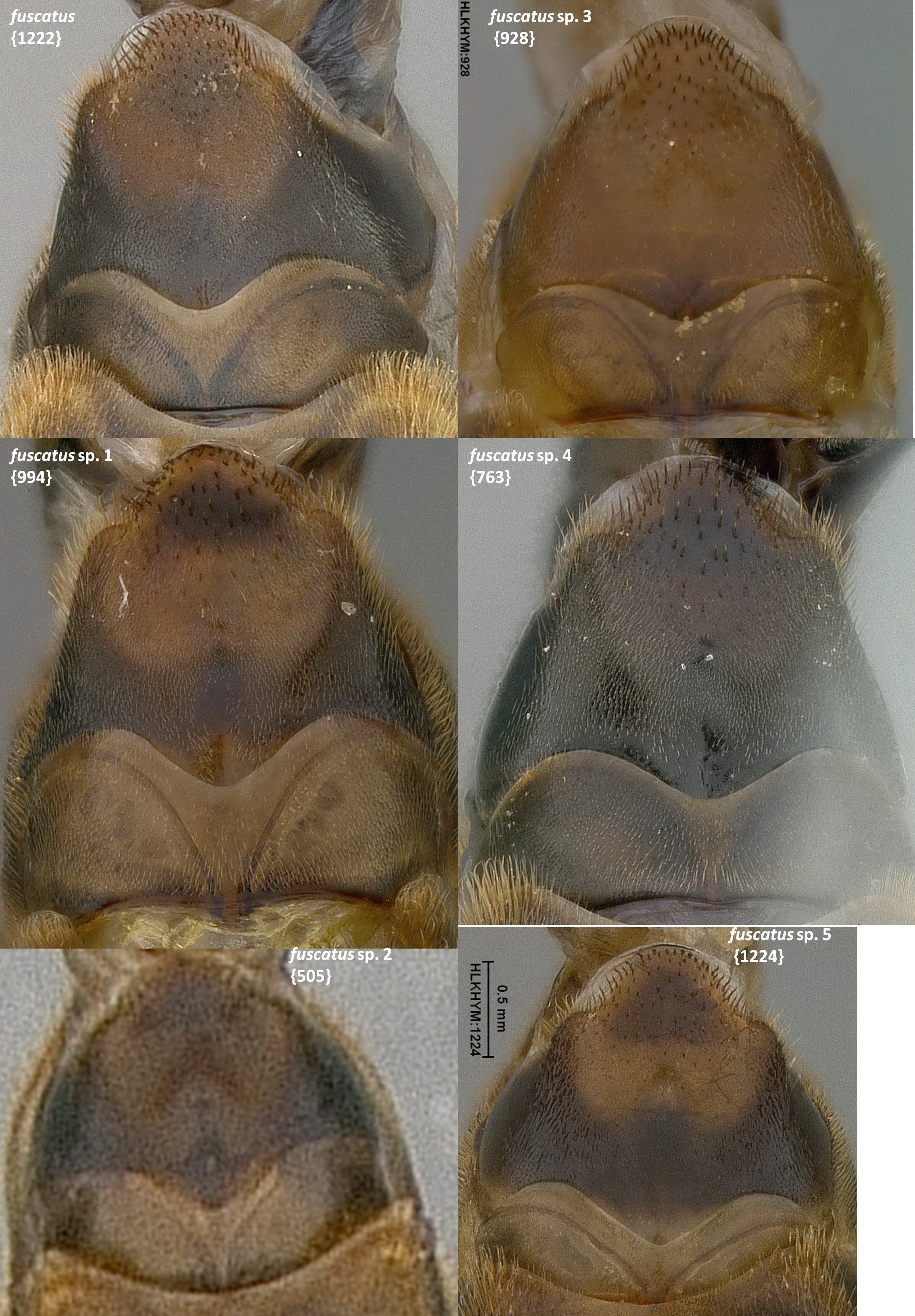

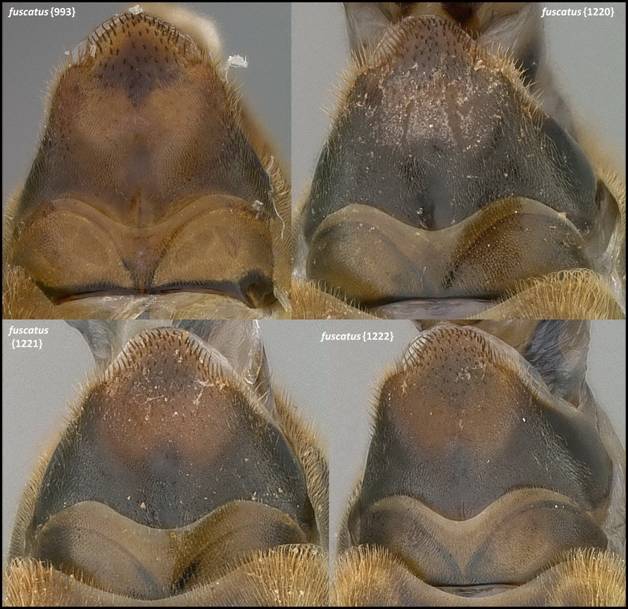

Figure C59: Sternite VIII+IX (partially extracted from metasoma and not KOH treated) of Florida Polistes species (part 4 of 5).





FigureC60_resize

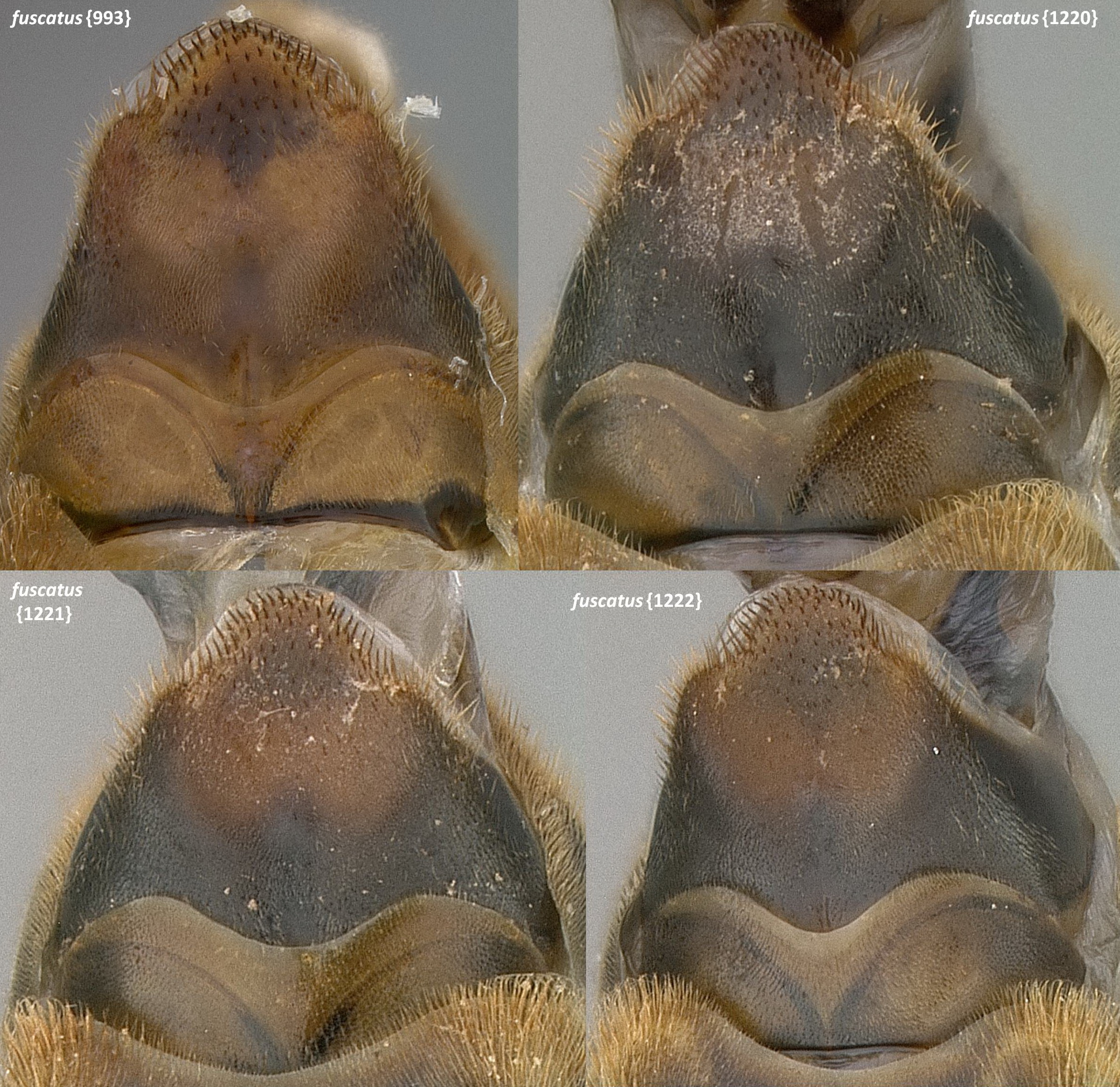

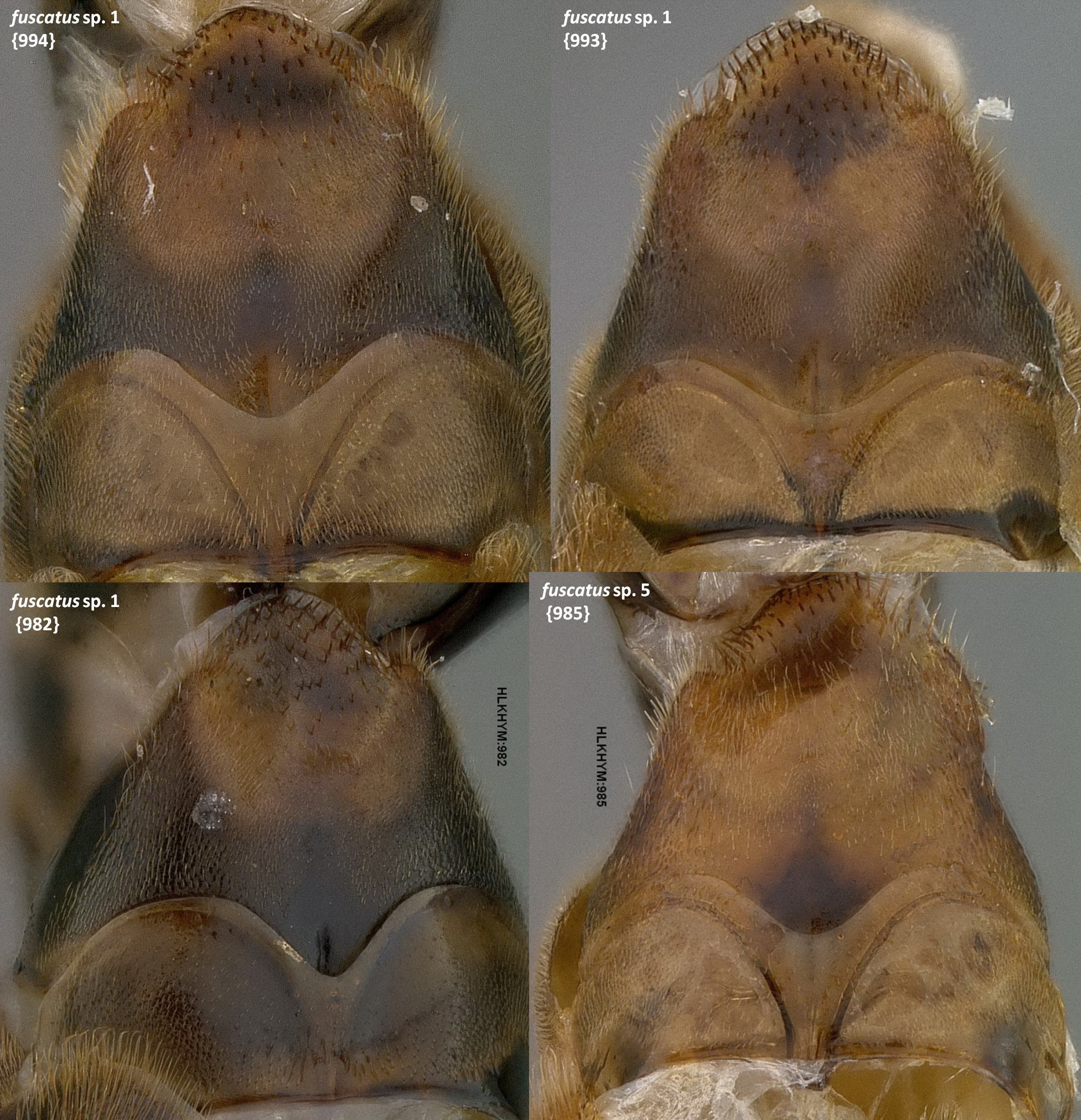

Figure C60: Sternite VIII+IX (partially extracted from metasoma and not KOH treated) of Florida Polistes species (part 5 of 5).
