The Paper Wasps and Hornets of Florida (Hymenoptera: Vespidae: Polistinae & Vespinae) By Hugo Kons Jr. & Rex Rowan



APPENDIX G: External Structural Characters of Florida Polistinae



Version 2018.1



External structural characters for identifying Polistes rubiginosus, P. hirsuticornis, P. parametricus, and P. dorsalis are from Buck et al. (2008).



Click on the thumbnails to view individual figures, or scroll down for the full set of figures sequentially.



 FigureG1_resize FigureG2_resize FigureG3_resize  FigureG4_resize FigureG5_resize FigureG6_resize FigureG7_resize FigureG8_resize FigureG9_resize FigureG10_resize FigureG11_resize FigureG12_resize FigureG13_resize FigureG14_resize FigureG15_resize FigureG16_resize FigureG17_resize FigureG18_resize

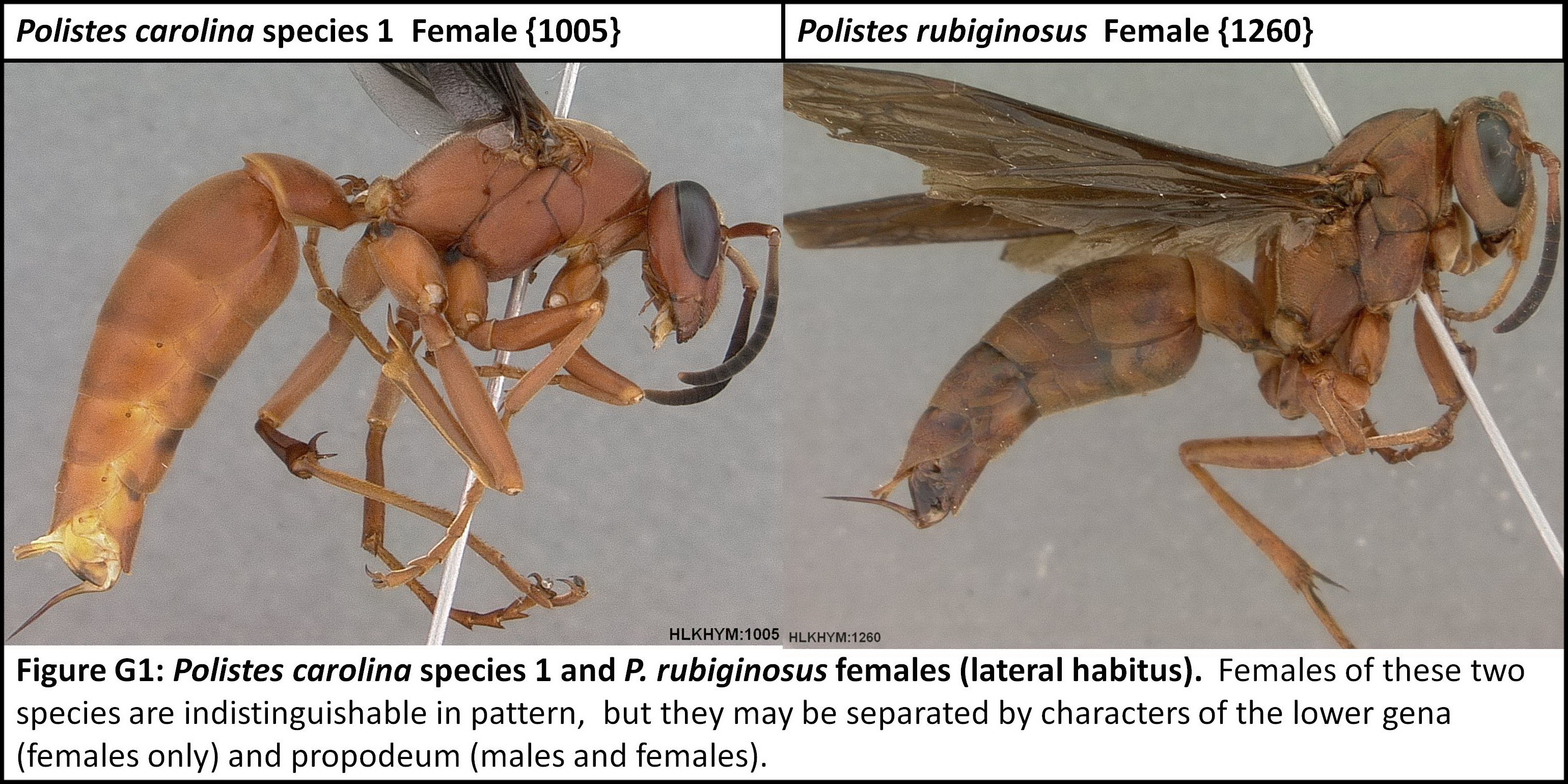

FigureG1_resize

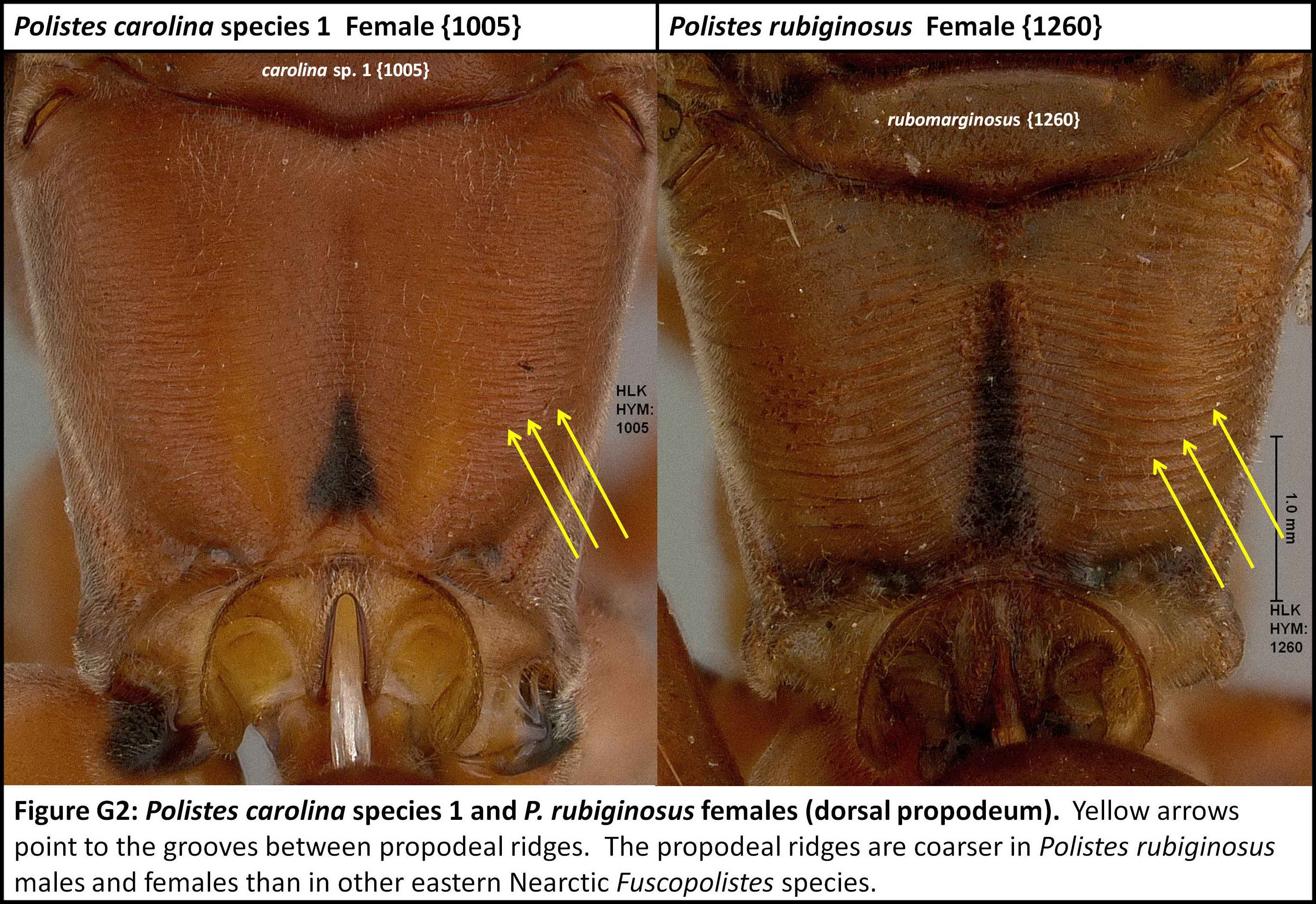

FigureG2_resize

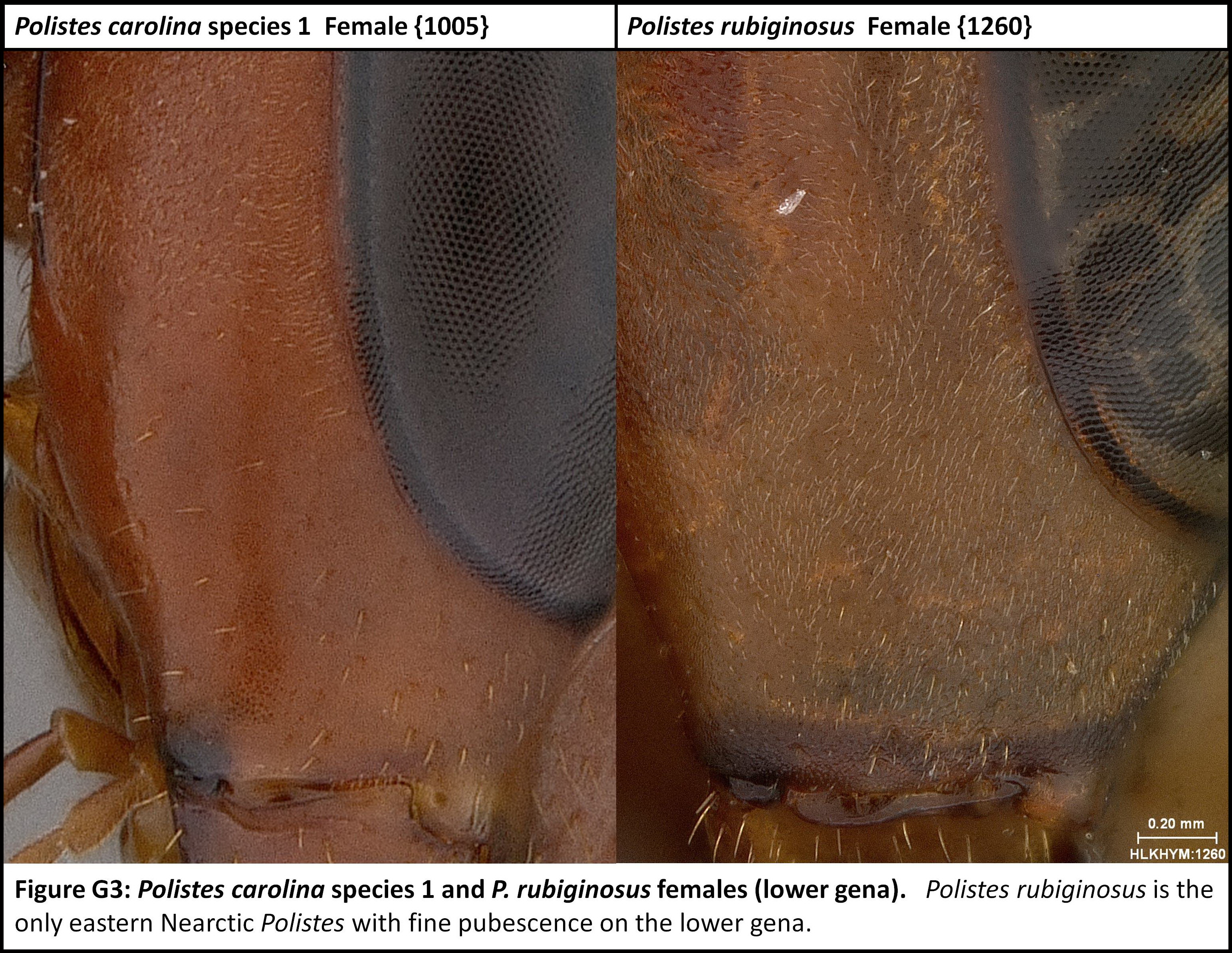

FigureG3_resize

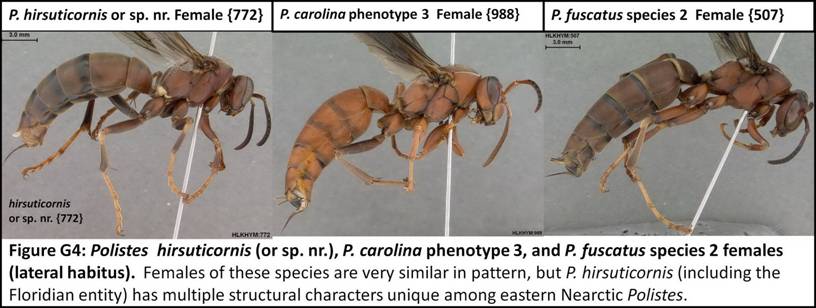

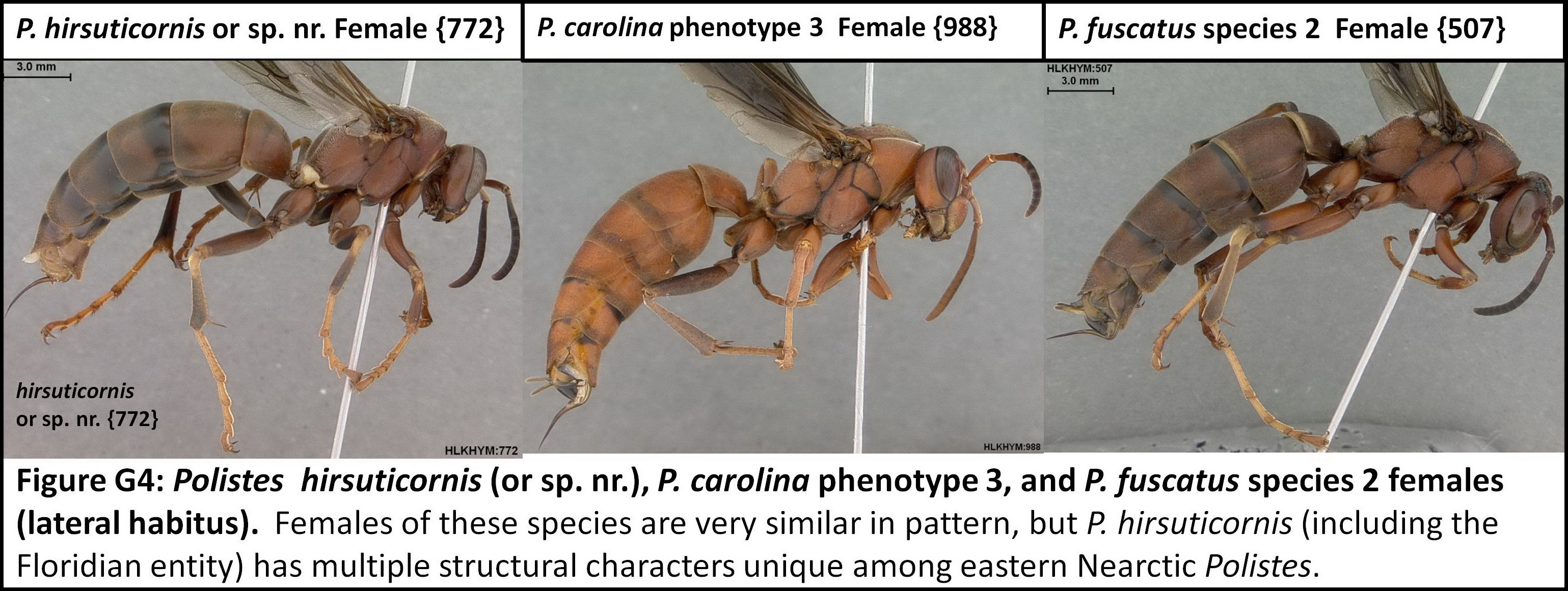

FigureG4_resize

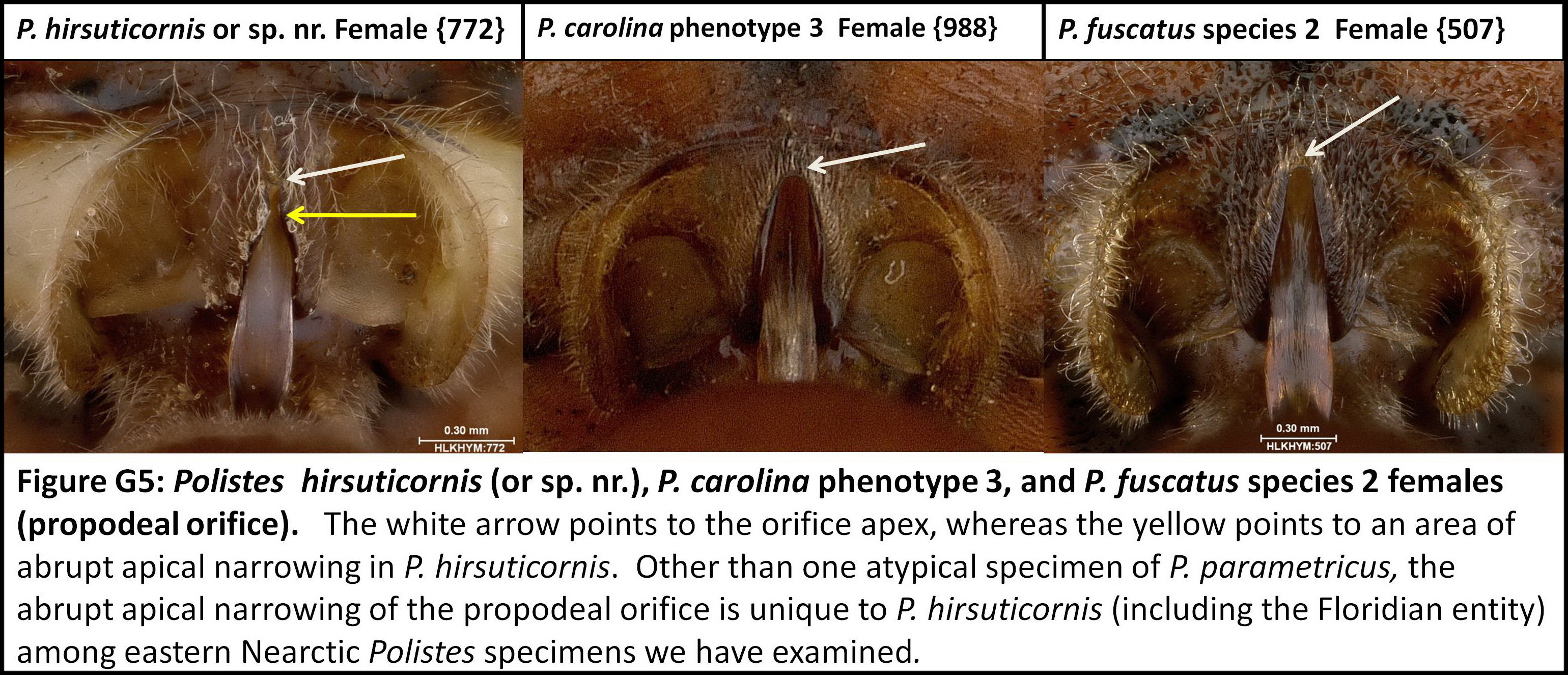

FigureG5_resize

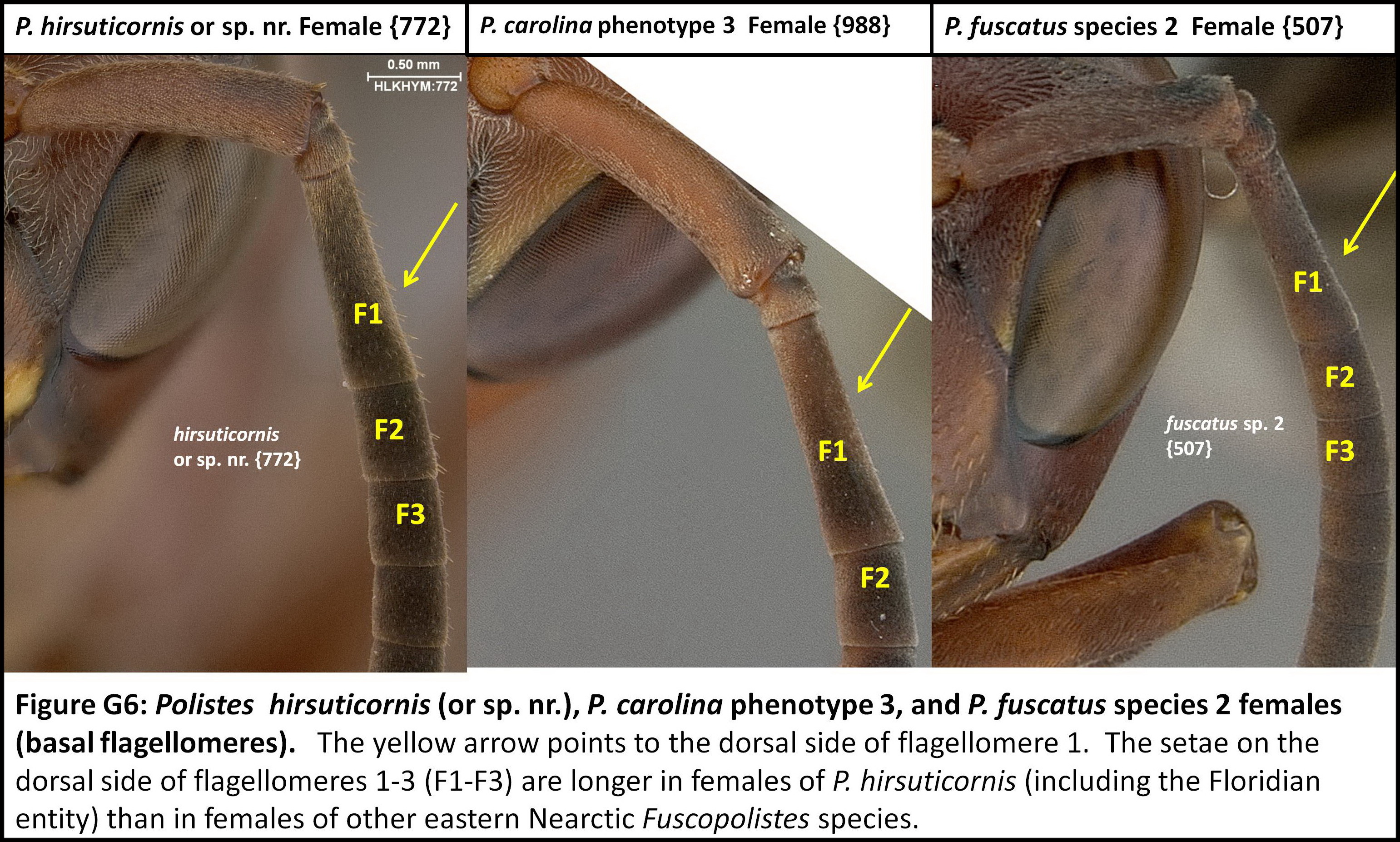

FigureG6_resize

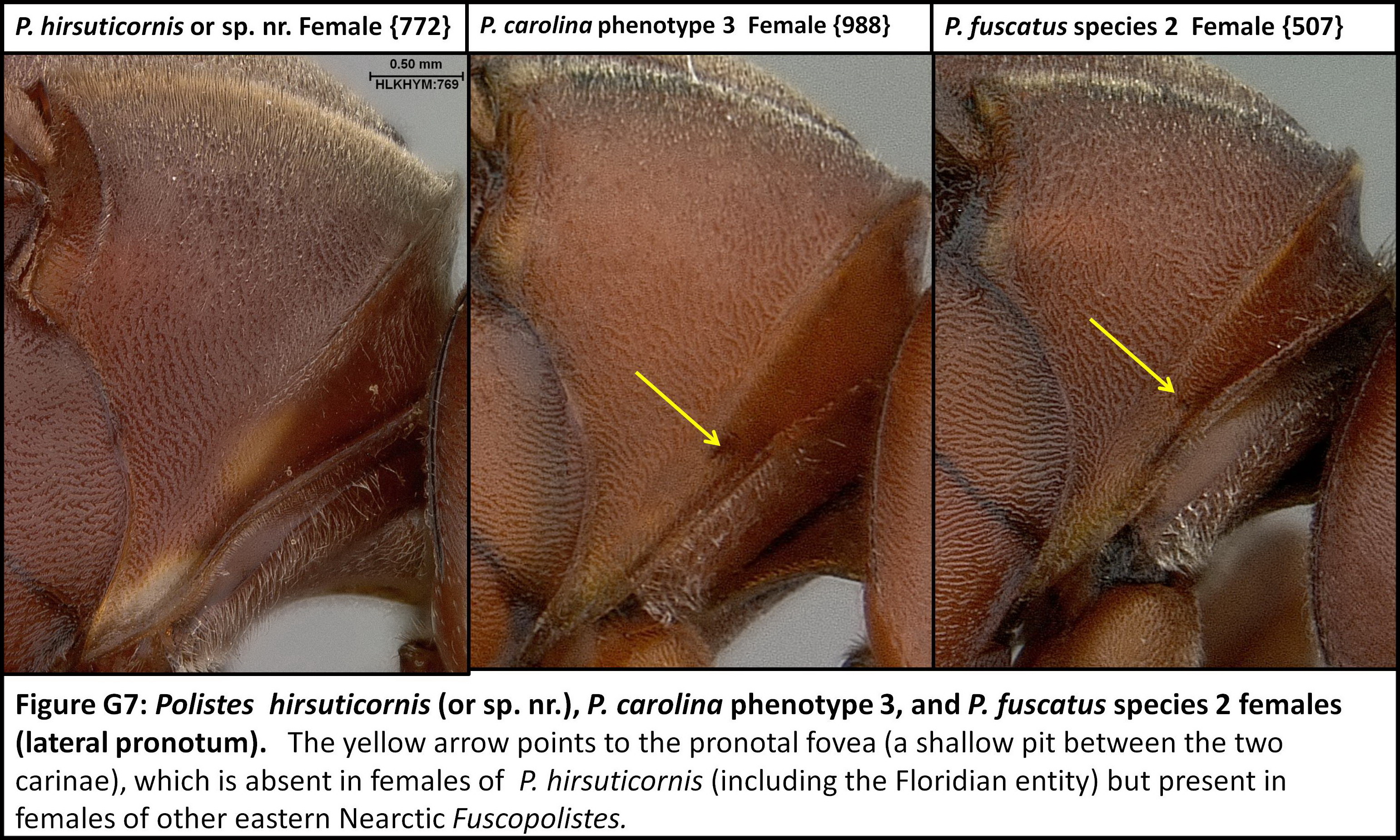

FigureG7_resize

Note:  Buck et al. (2012) stated some P. hirsuticornis have a the pronotal fovea present as a small superficial depression and a single female had a small but deep fovea.  All eight P. hirsuticornis (or species near) we collected in Florida lack the fovea.

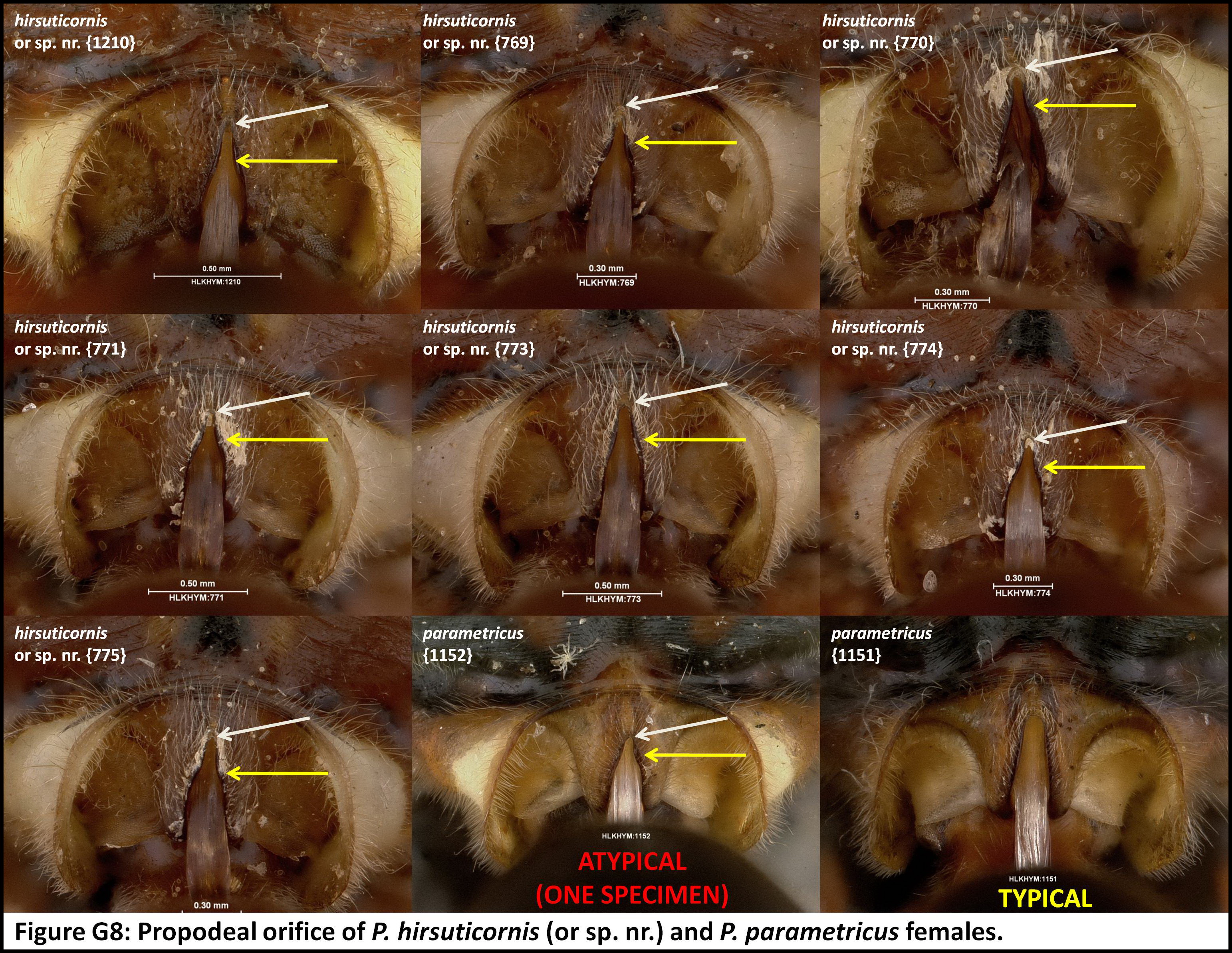

FigureG8_resize

Note:  Buck et al. (2012) stated that in P. parametricus the propodeal oirifice is usually wide and gradually narrowing dorsally, but is sometimes abruptly narrowing as in P. hirsuticornis.  Of the seven additional specimens we examined, six are like the former and one like the latter.

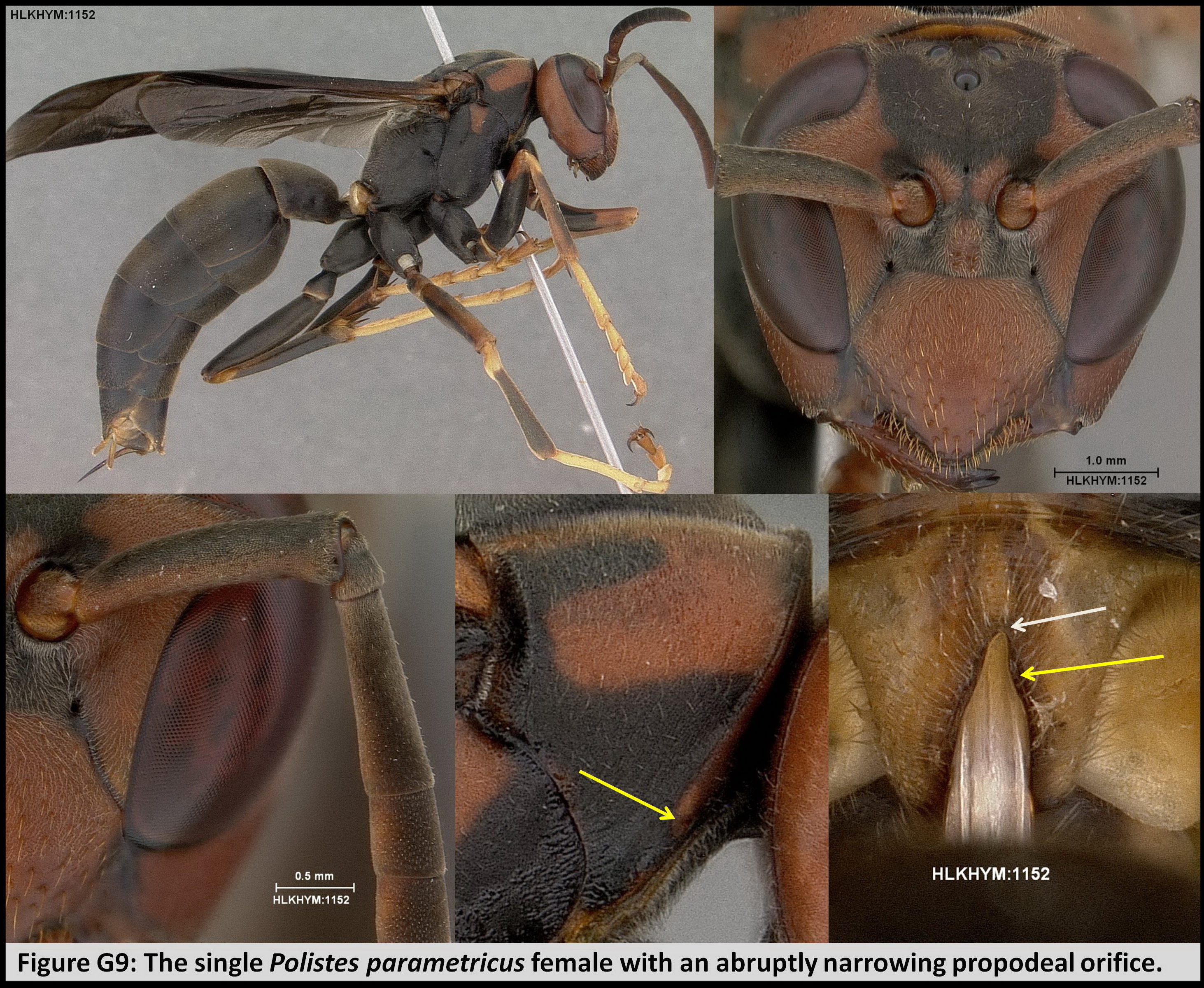

FigureG9_resize

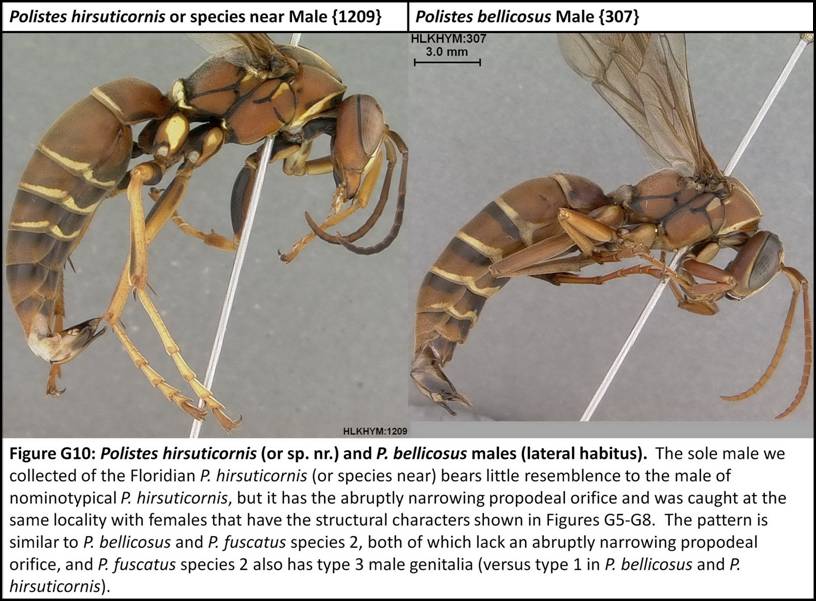

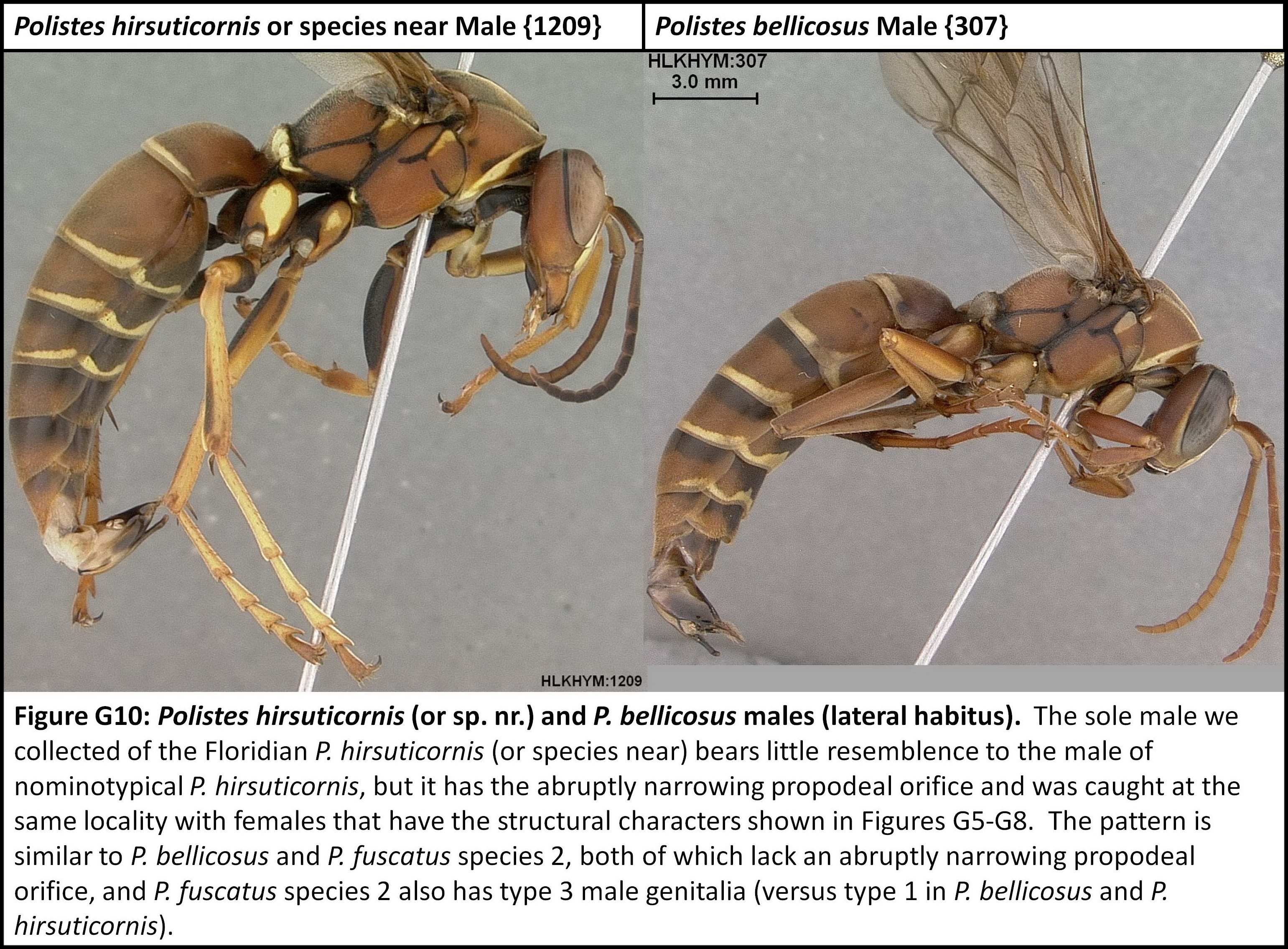

FigureG10_resize

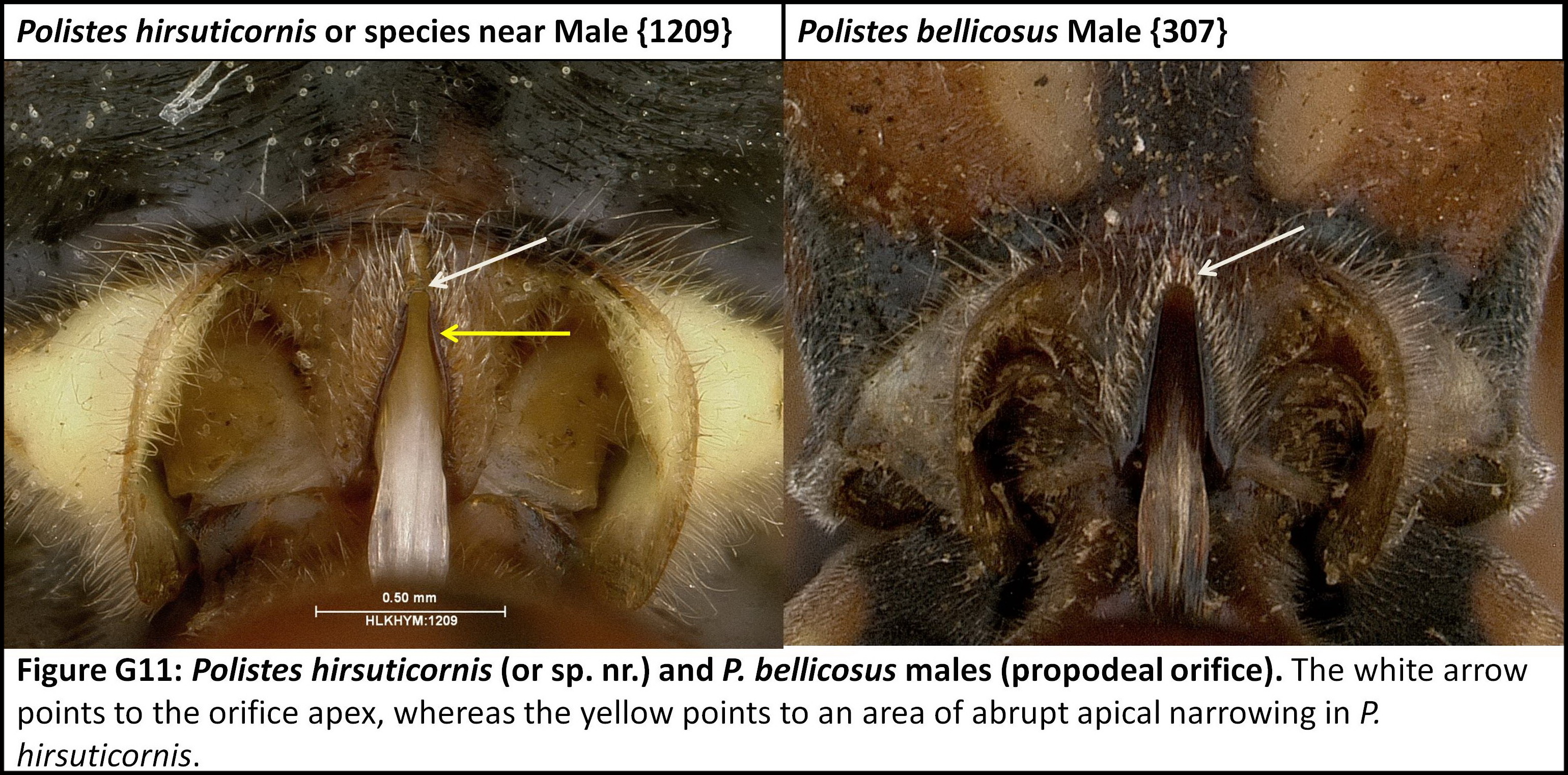

FigureG11_resize

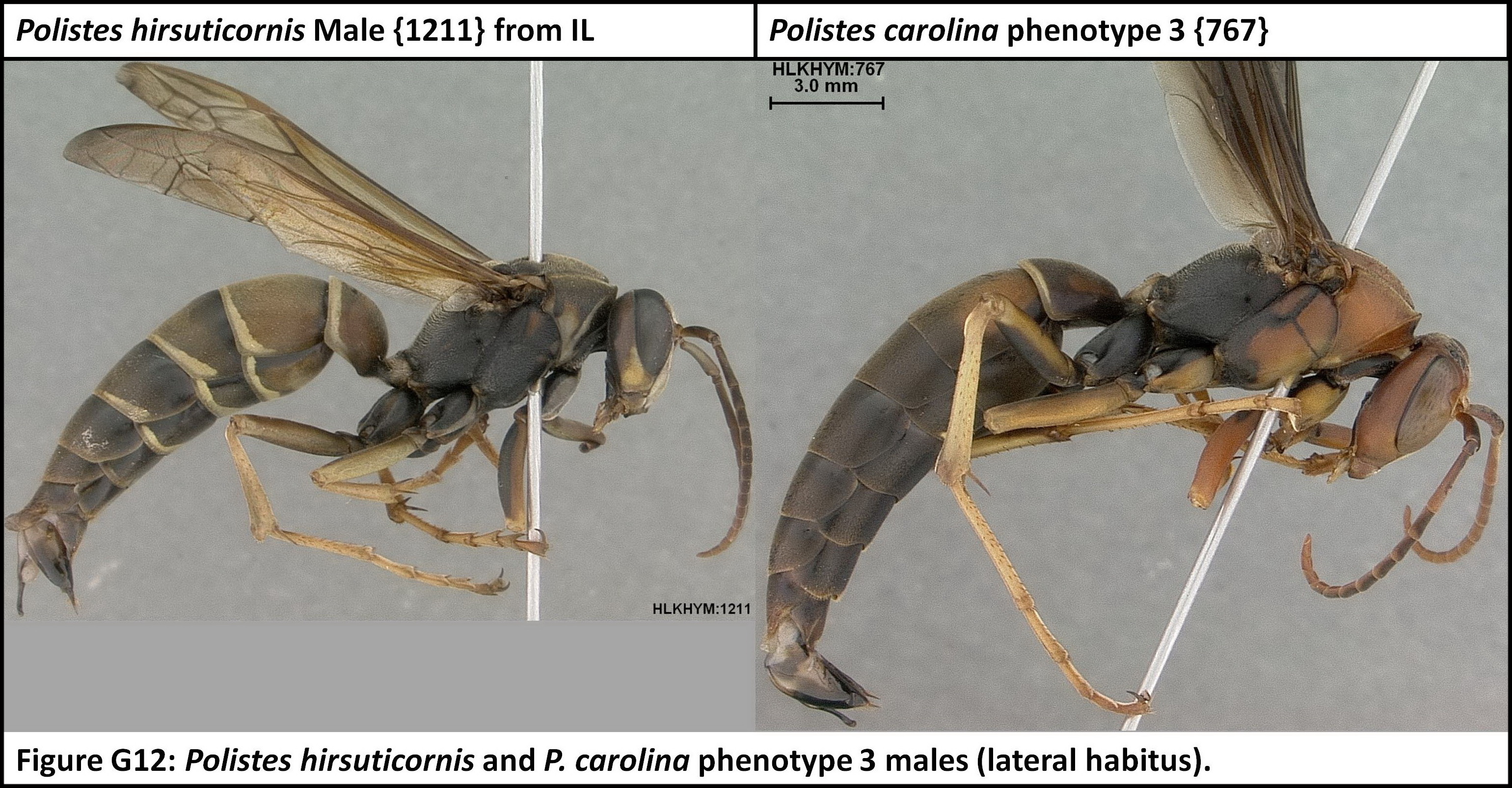

FigureG12_resize

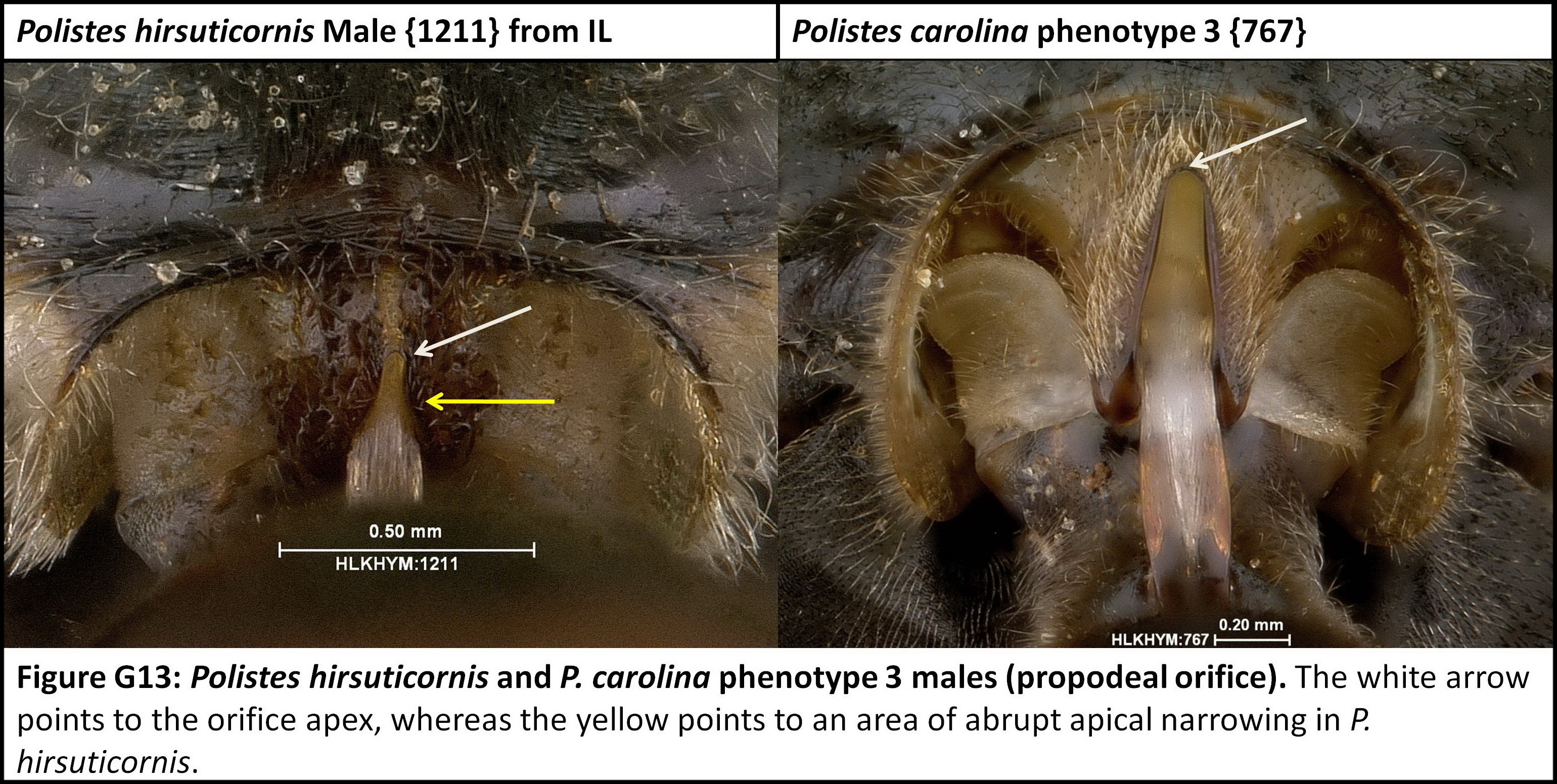

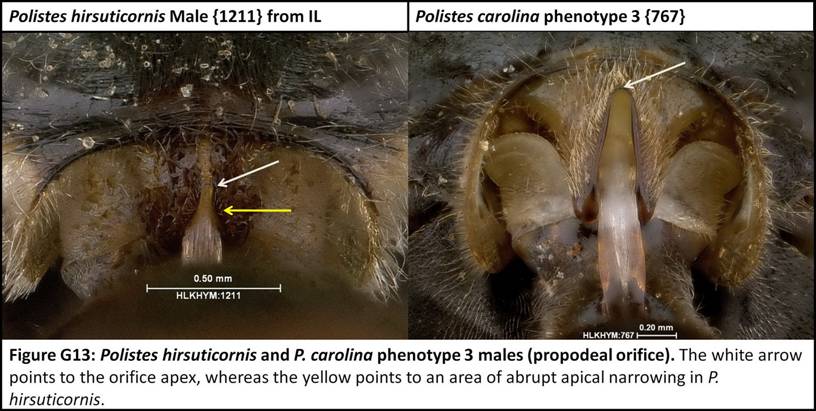

FigureG13_resize

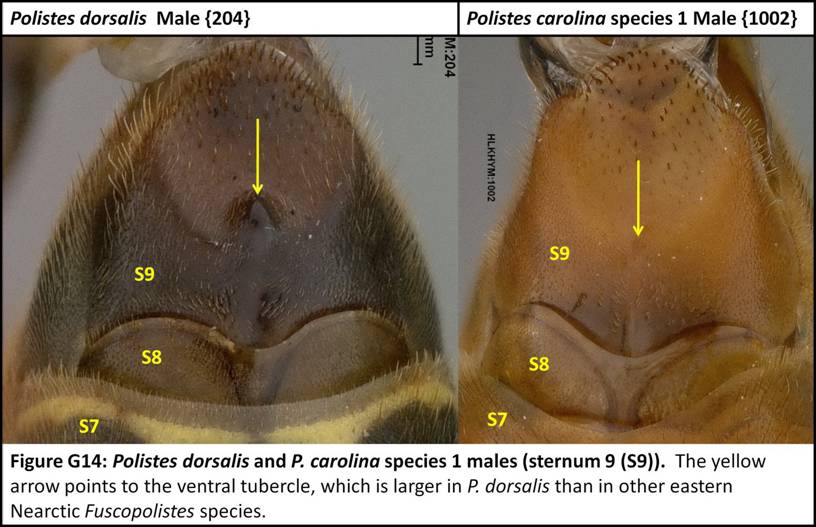

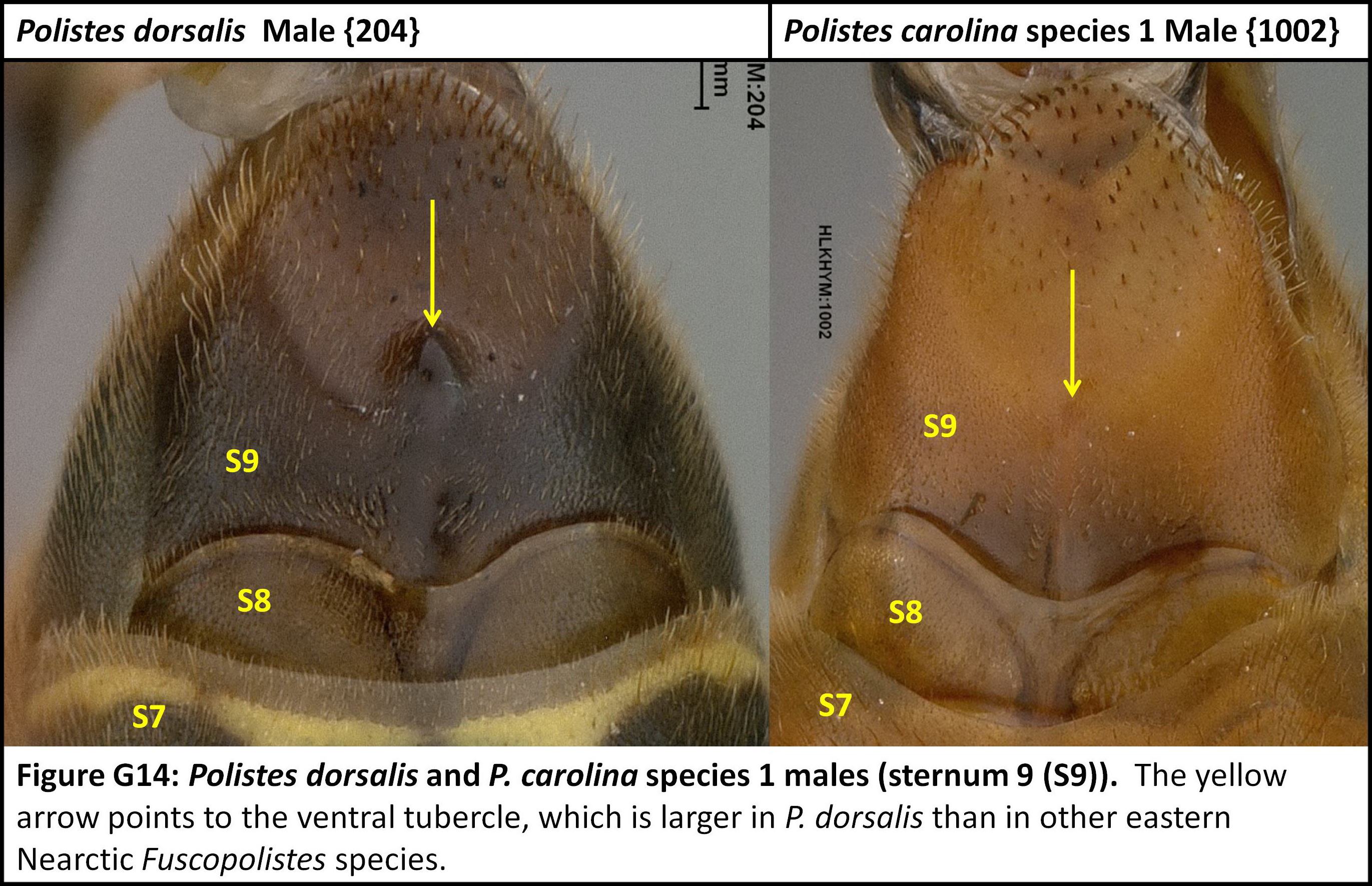

FigureG14_resize

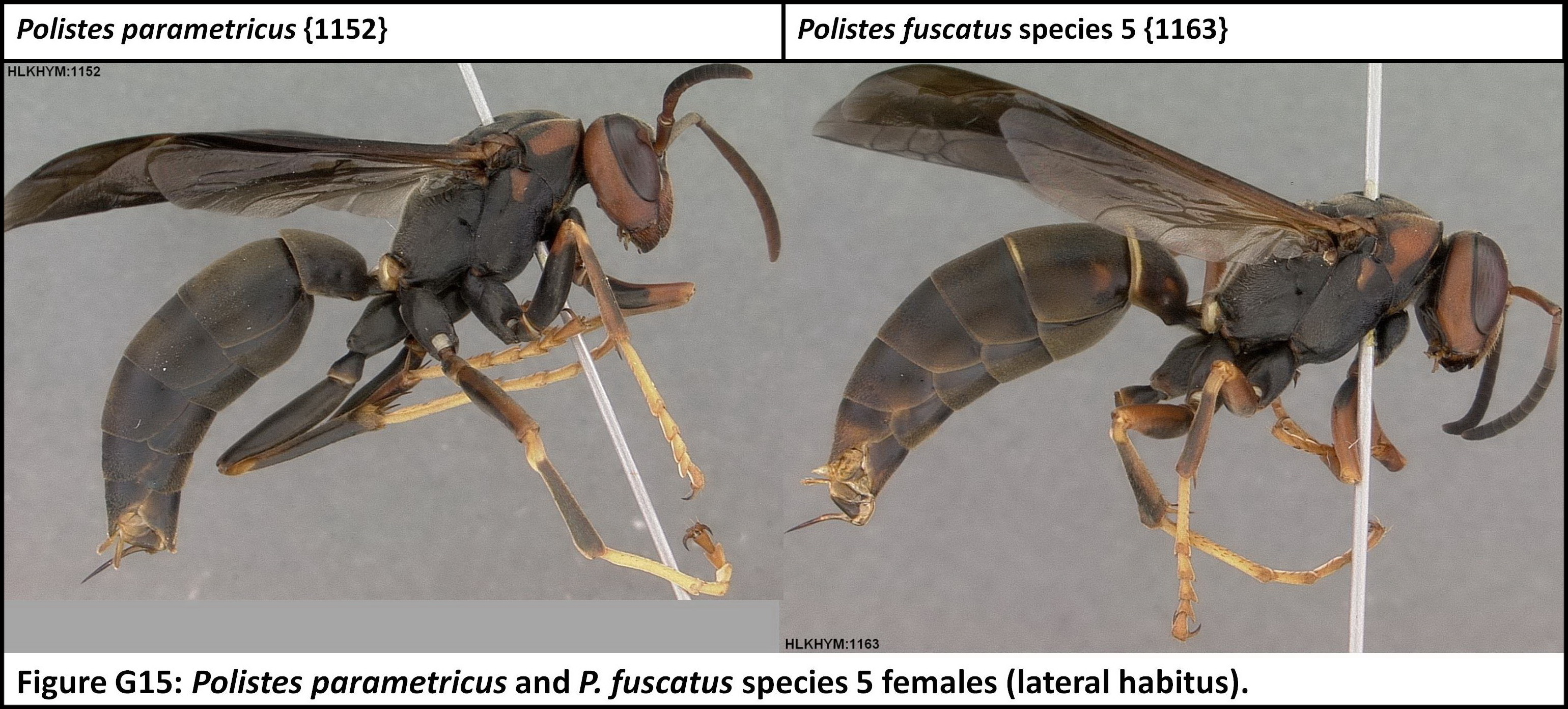

FigureG15_resize

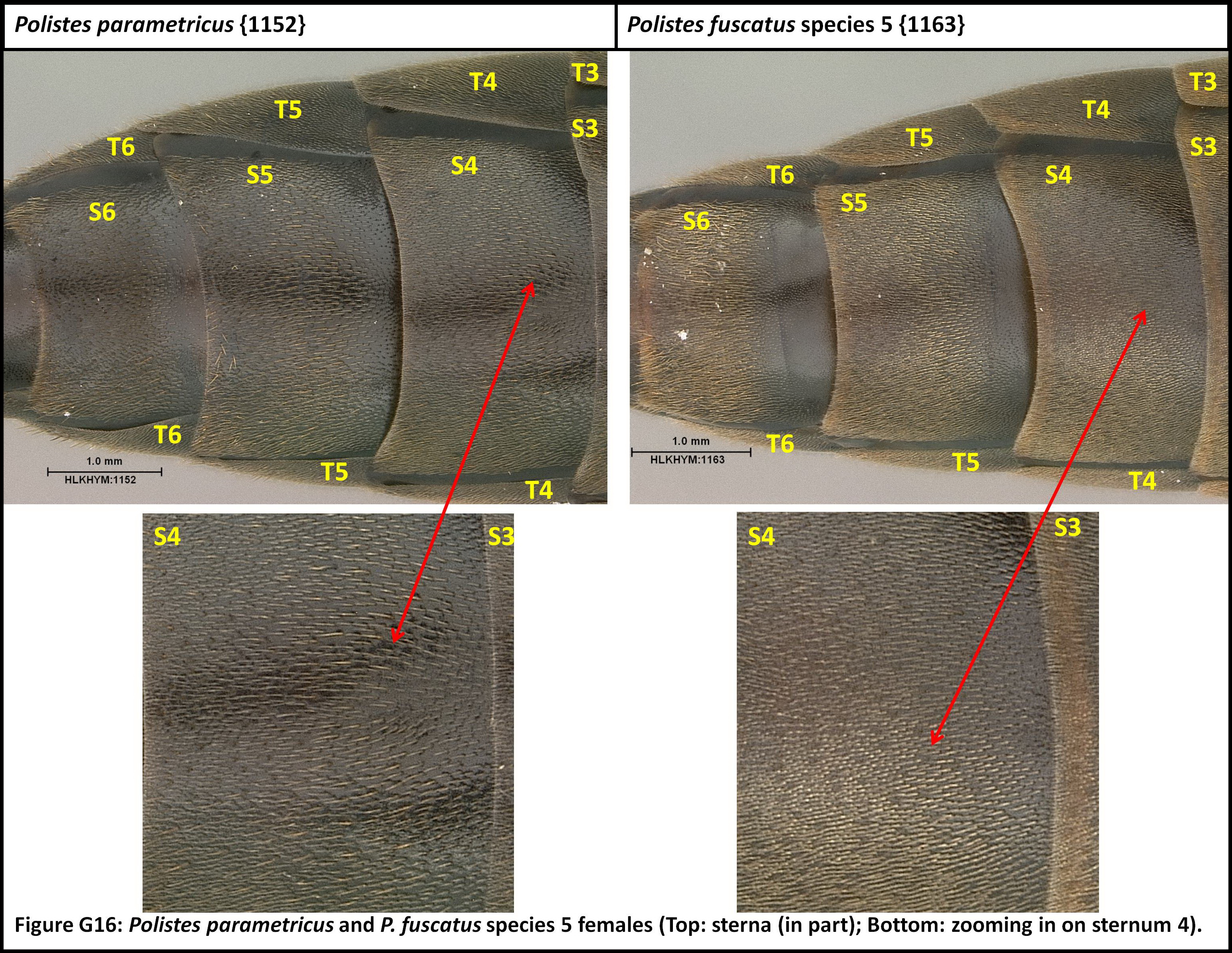

FigureG16_resize

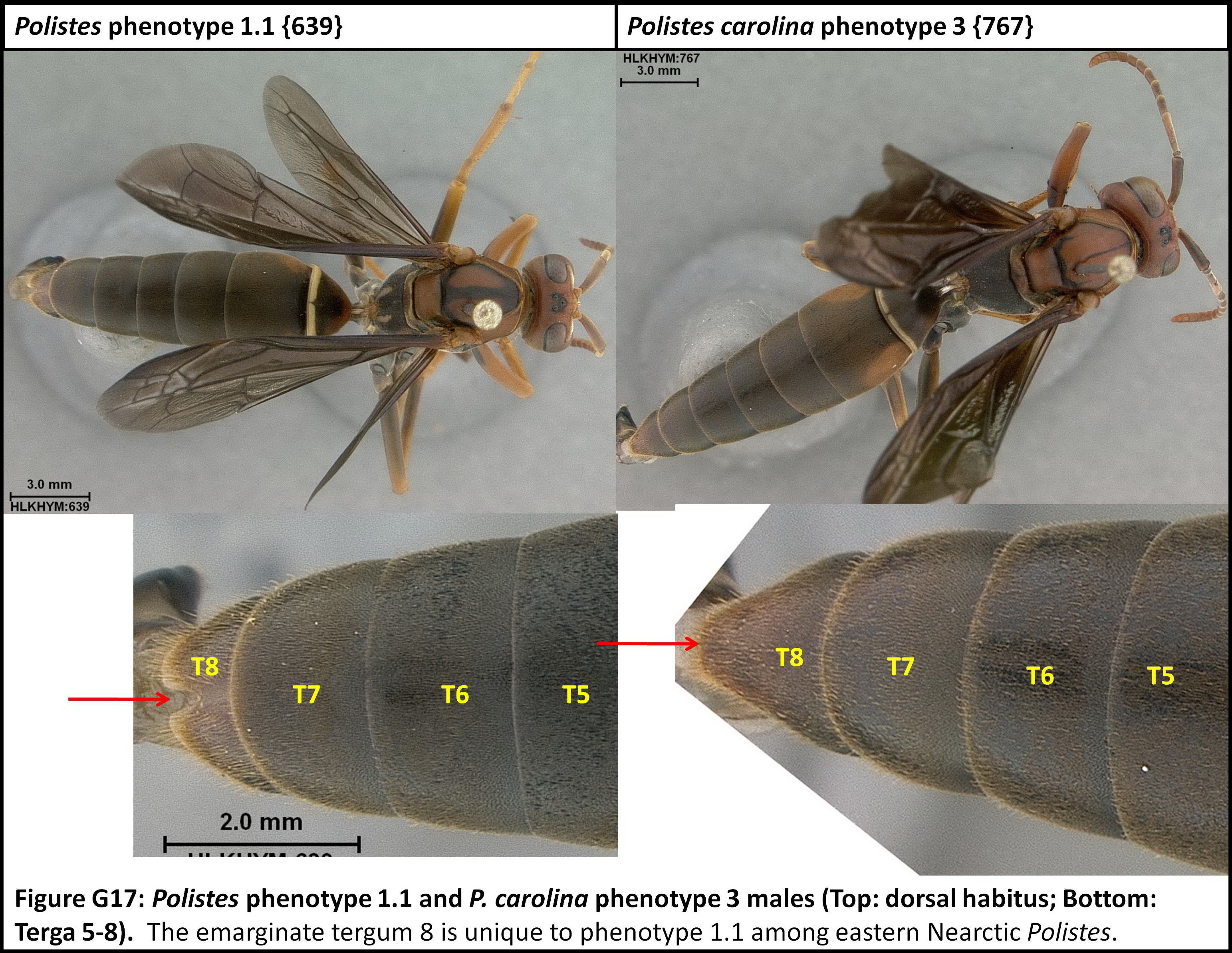

FigureG17_resize

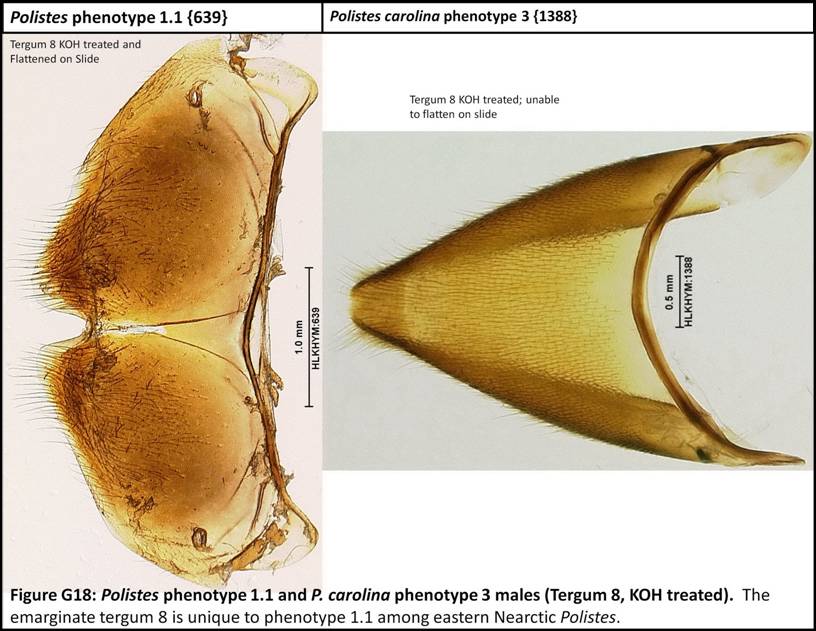

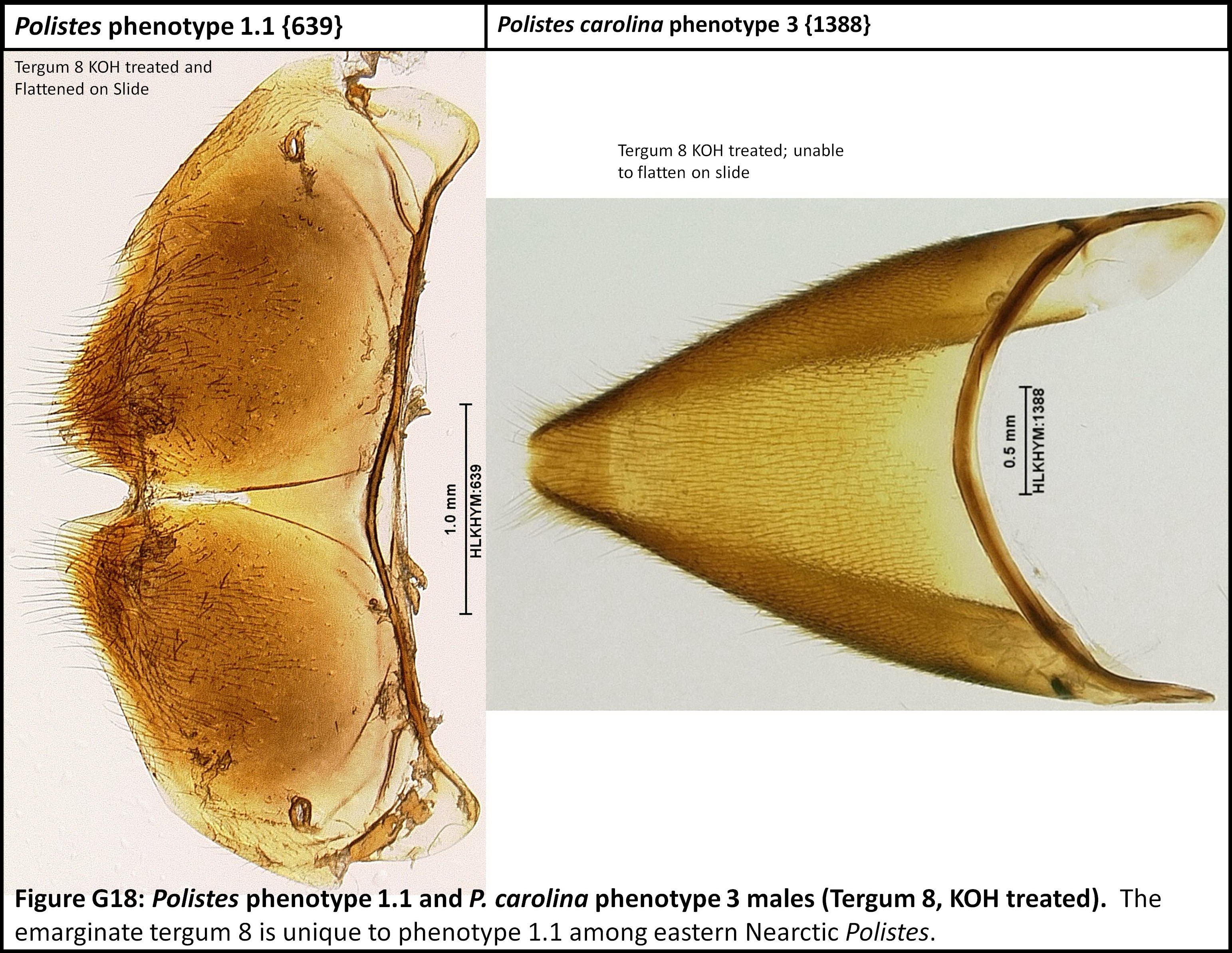

FigureG18_resize
